11 61 046 Removing and installing / replacing intake air manifold for cylinders 1-6 (M73)

Switch off ignition.

Remove complete injection pipe with injector valves, refer to FUEL RAIL & INJECTORS .

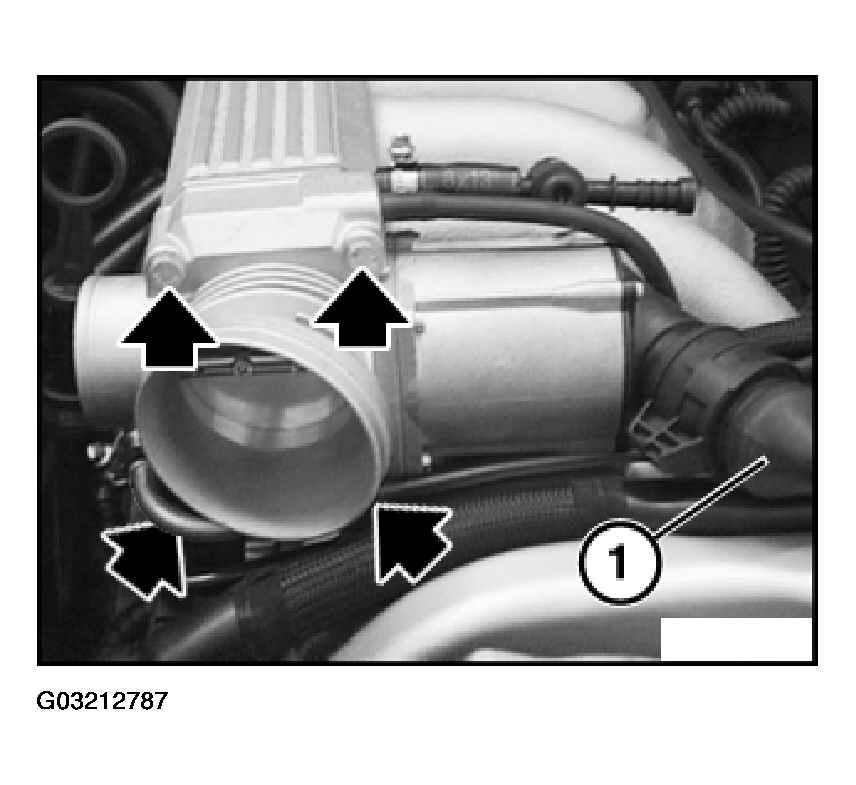

Disconnect plug connection (1). Unfasten screws, remove throttle body and place to one side. Hoses remain connected.

Installation:

Replace gasket between manifold and throttle body.

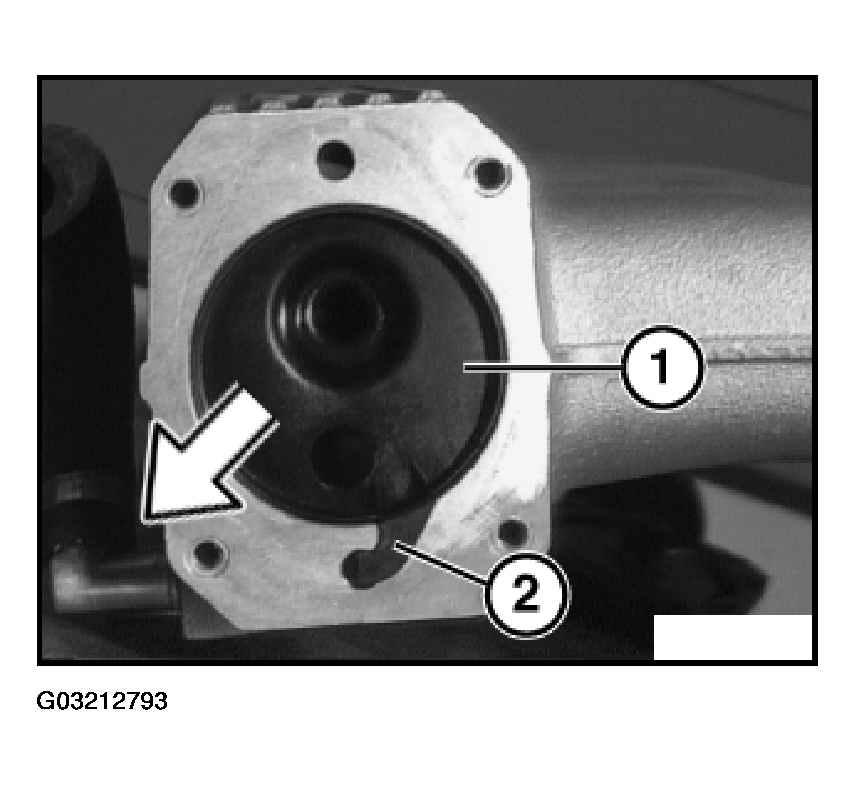

Fig 1: Replacing Gasket Between Manifold And Throttle Body

Mark routing of lines for knock sensors (1 and 2 ) on manifold.

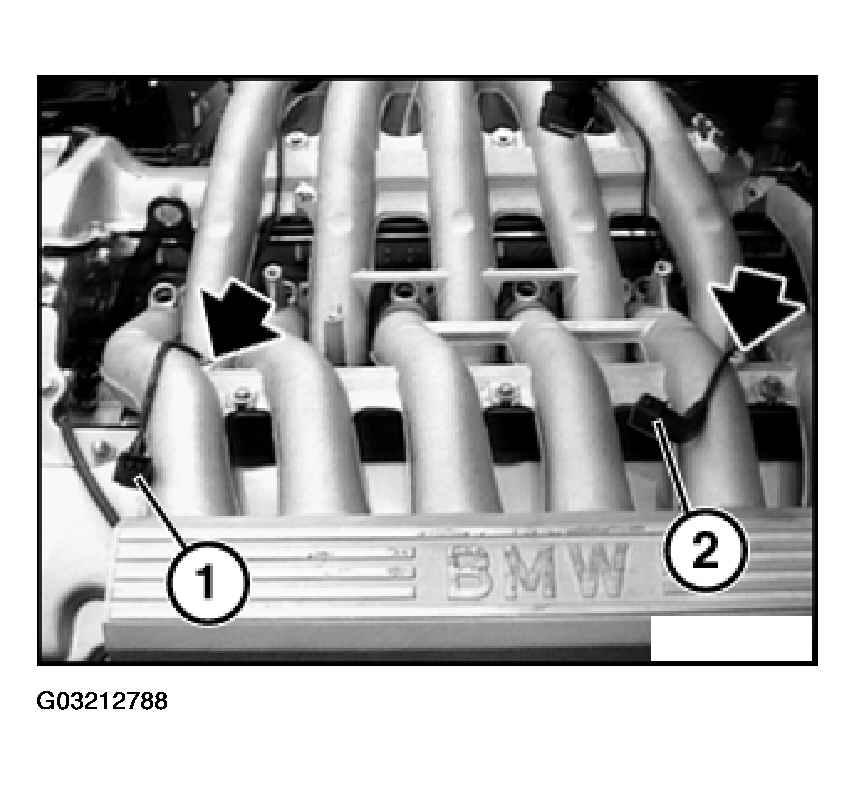

Fig 2: Identifying Mark Routing Of Lines For Knock Sensors On Manifold

Unfasten screws and remove noise insulation strip.

Fig 3: Removing Noise Insulation Strip

Unfasten nut and place ignition wiring harness (1) to one side.

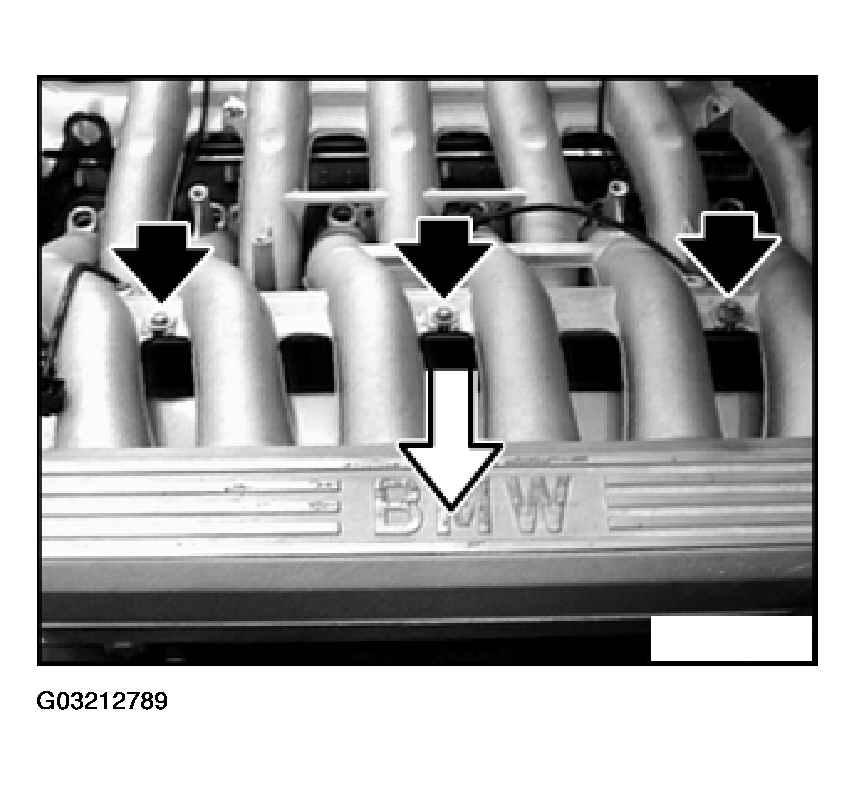

Fig 4: Unfastening Nut And Place Ignition Wiring Harness To One Side

Unfasten manifold with special tool 11 6 060.

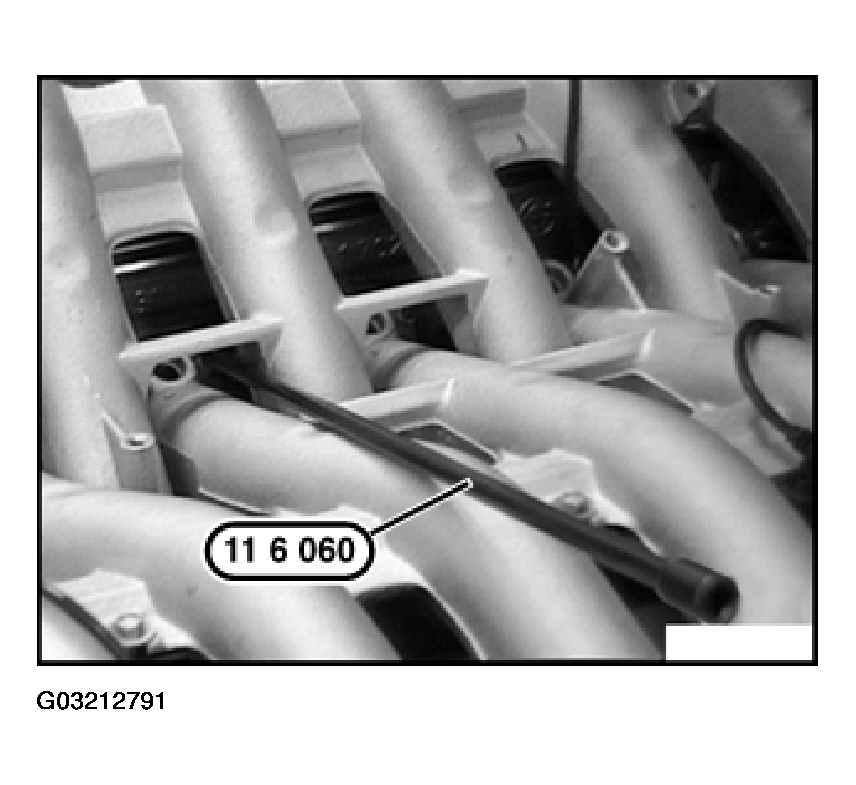

Fig 5: Unfastening Manifold With Special Tool

Unfasten screws (1) and remove control valve for engine venting.

NOTE: Installation is described in section on sealing and replacing left control valve for engine venting, refer to 11 15 026 SEALING AND REPLACING CONTROL VALVE FOR LEFT ENGINE VENT (M73)

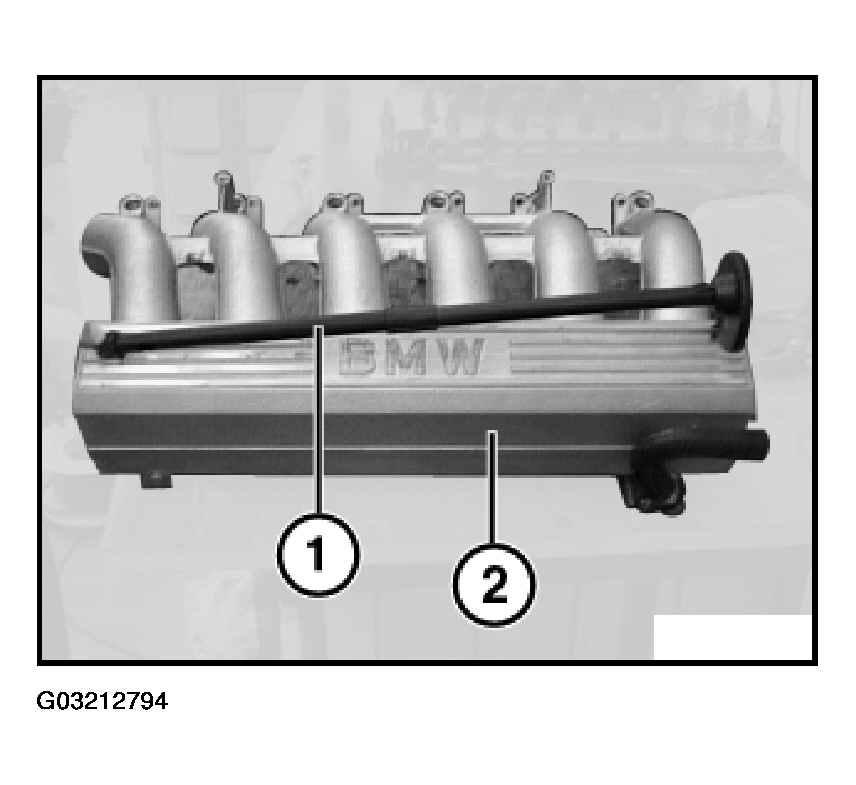

Fig 6: Installing Left Control Valve For Engine Venting

If necessary, remove vent pipe (1).

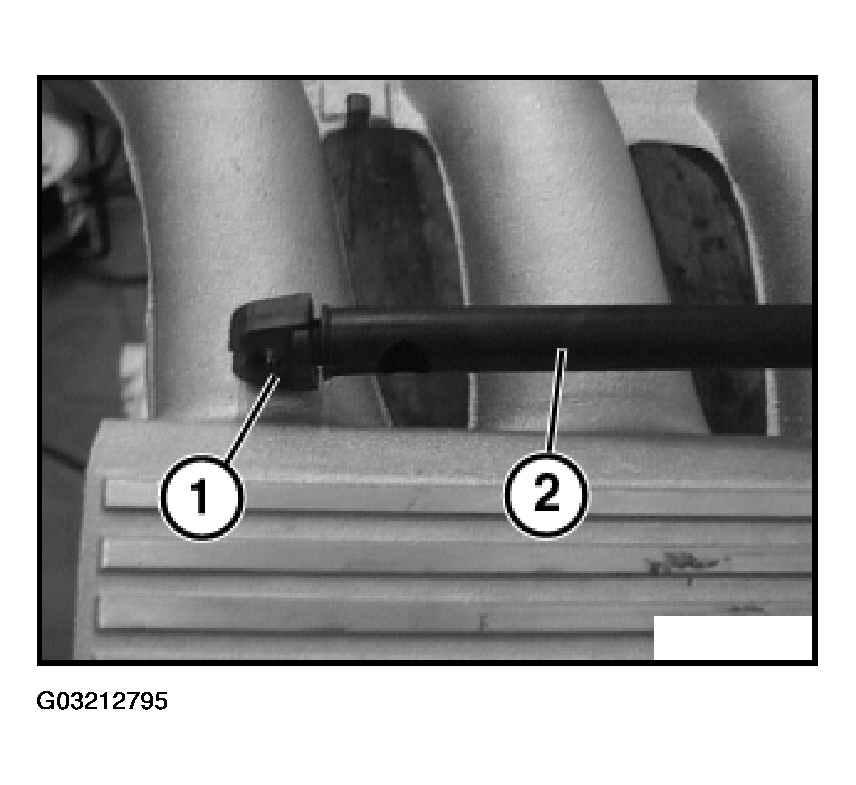

Fig 7: Removing Vent Pipe

Installation:

Installation position of vent pipe (1) in manifold (2).

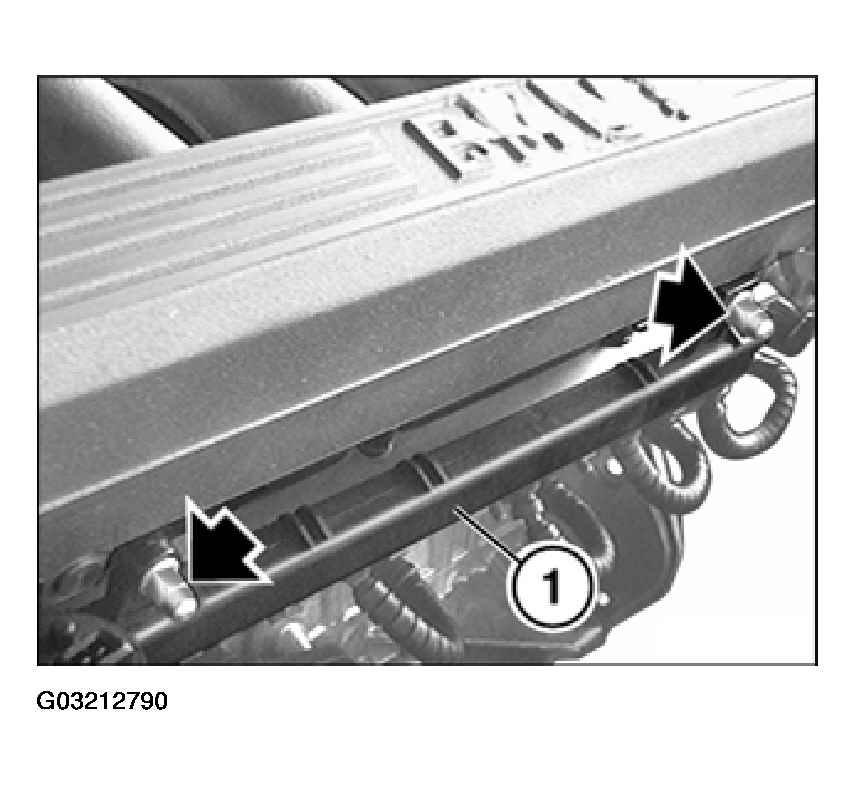

Fig 8: Installing Position Of Vent Pipe In Manifold

Installation:

Clip rubber mount (1) of vent pipe (2) in manifold on rotary shaft.

Fig 9: Installing Rubber Mount Of Vent Pipe In Manifold On Rotary Shaft

Installation:

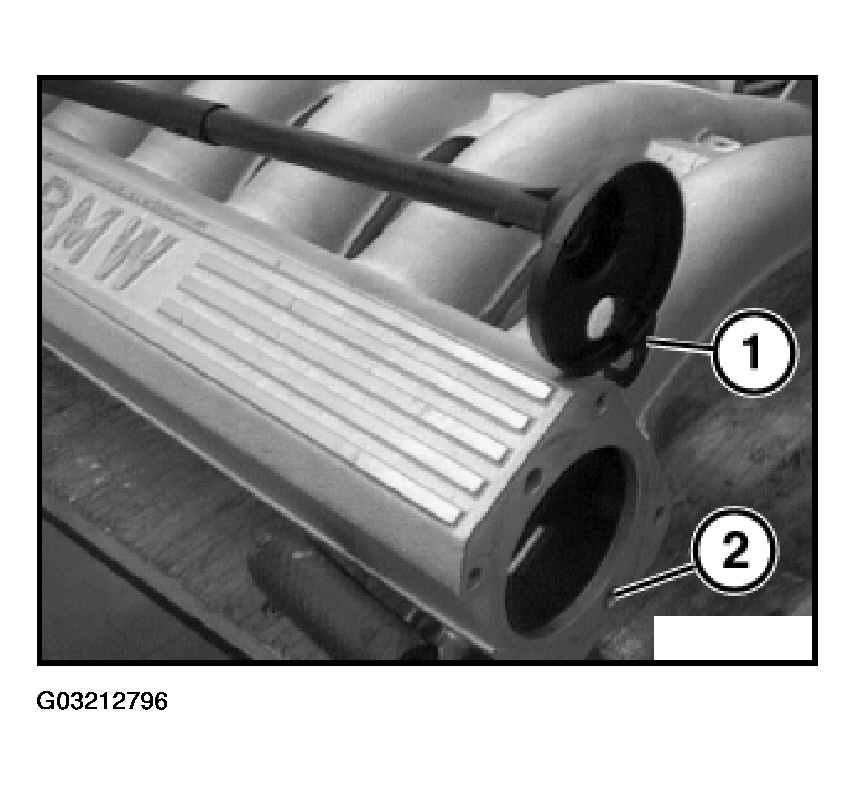

Lug (1) on vent pipe must locate in bore (2) of manifold.

Fig 10: Installing Lug On Vent Pipe Must Locate In Bore Of Manifold
