11 15 026 Sealing and replacing control valve for left engine vent (M73)

Unfasten screws (1) and remove control valve, (illustrated here on removed engine)

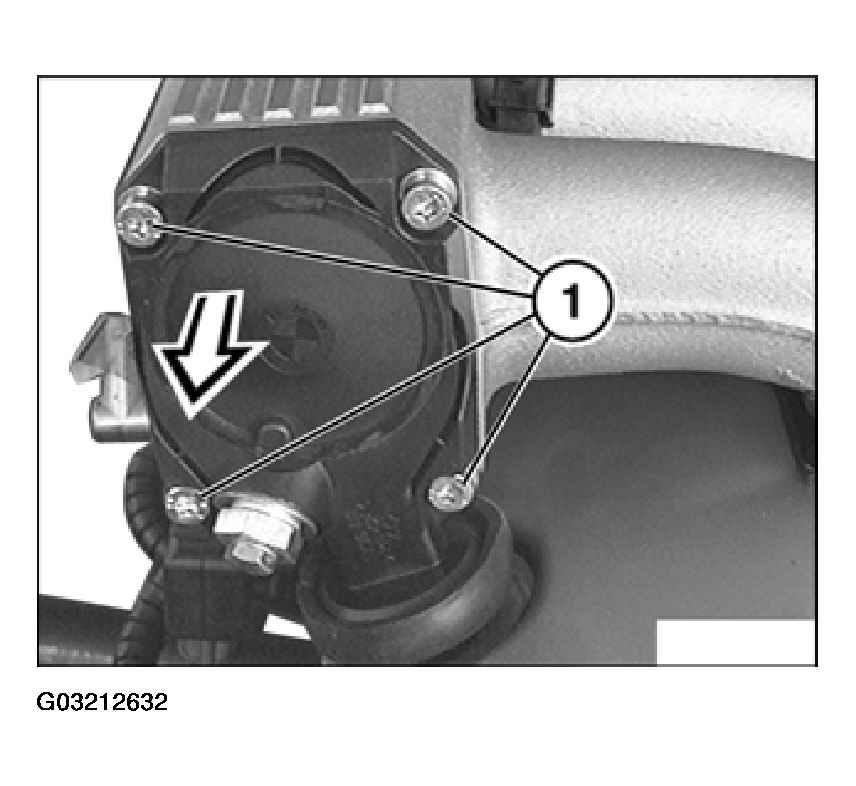

Fig 1: Removing Control Valve

Installation:

1. Fit manifold without control valve.
2. Control valve must first be fitted to neck (1) on cylinder head cover, then fitted to sealing face (2) of manifold.

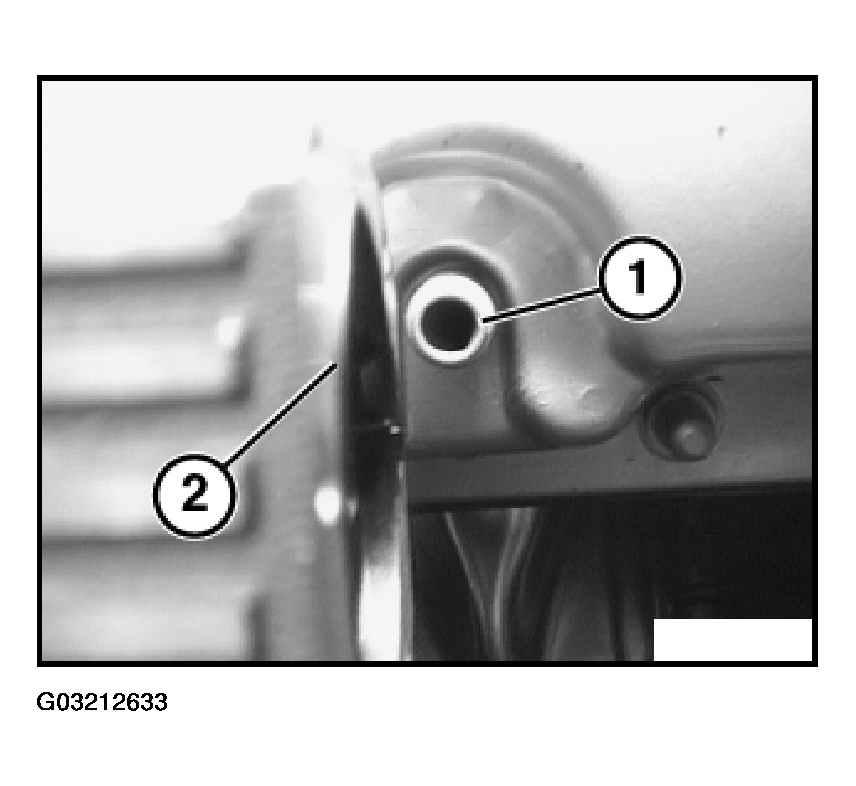

   Fig 2: Fitting Manifold Without Control Valve



Installation:

1. On control valve, first press adapter (1) for cylinder head cover inwards.

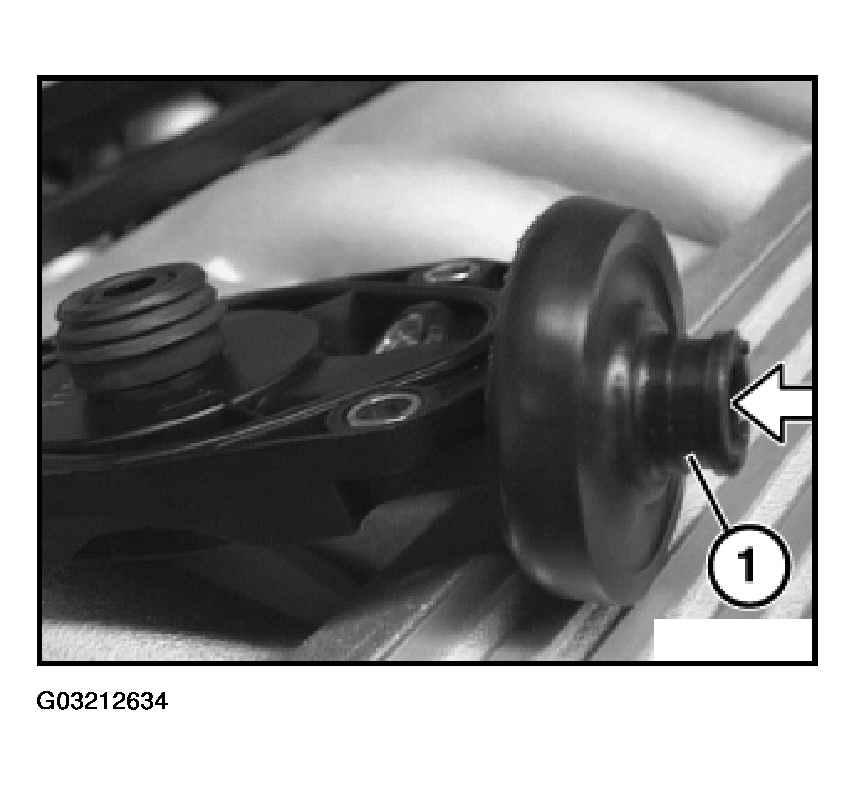

   Fig 3: Installing Control Valve, First Press Adapter For Cylinder Head Cover



Installation:

1. Fit control valve with fitted adapter (1) into the cylinder head cover.
2. Apply good coating of anti-friction agent to adapter (1).

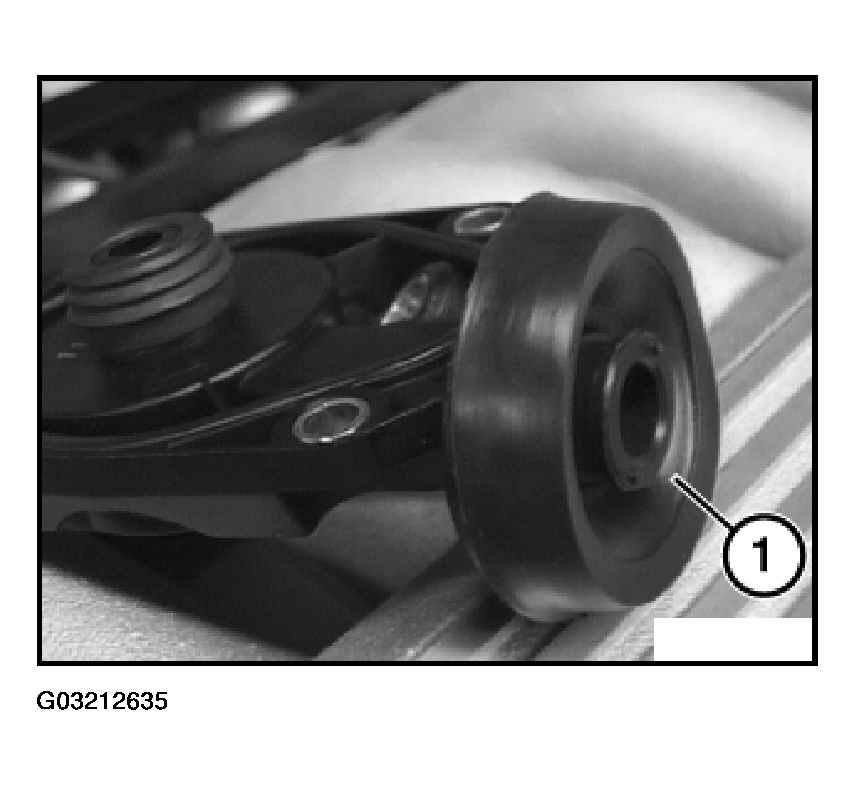

   Fig 4: Installing Control Valve With Fitted Adapter Into Cylinder Head Cover



Installation:

1. Fit control valve (1) to neck of cylinder head cover (2) and press control valve downwards, causing adapter to slide onto neck of cylinder head cover.
2. Screw control valve onto manifold.

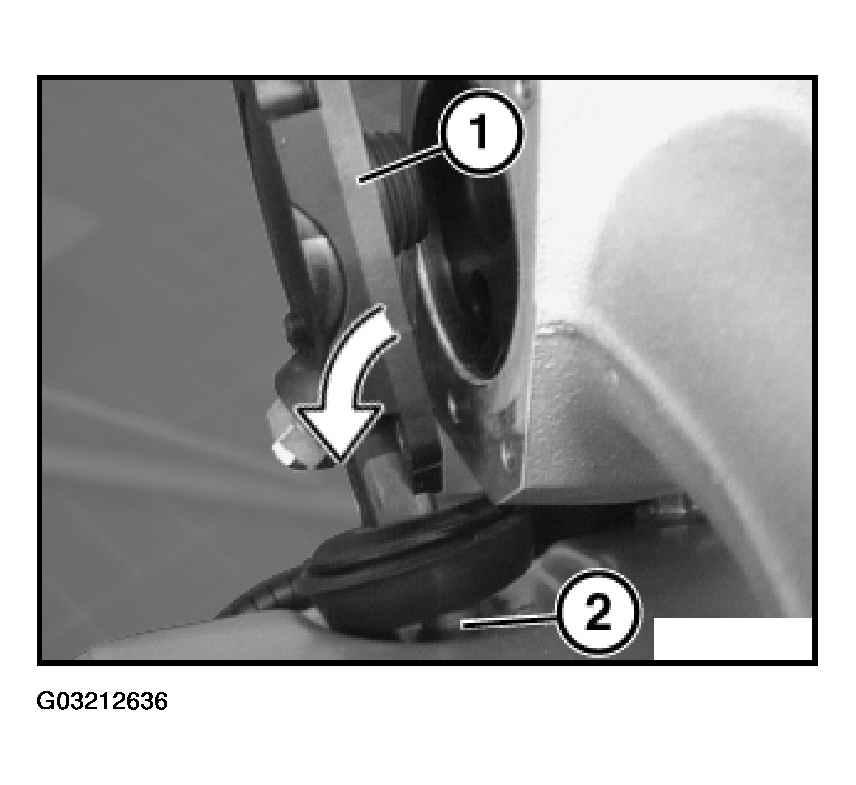

   Fig 5: Installing Control Valve Onto Manifold
