51 47 030 Removing and installing/replacing the rear (inside) left or right rocker panel strip
Remove and install rear seat (normal), refer to 52 24 005 REMOVING AND INSTALLING / REPLACING REAR SEAT (NORMAL) .
Remove and install rear seat (normal/electric), refer to 52 24 005 REMOVING AND INSTALLING / REPLACING REAR SEAT (NORMAL/ ELECTRIC) .
Remove and install rear seat (normal/electric on L7 with split bench seat), left or right.

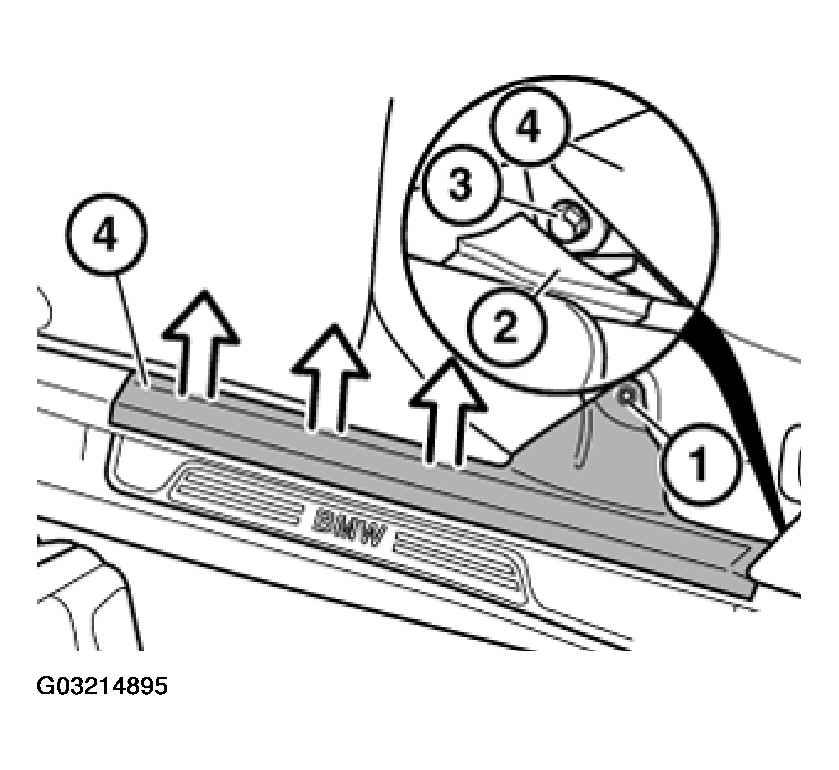

Slacken nut (1).
Pull acoustic insulation forwards (2) and unfasten screw (3).
Pull rocker panel strip (4) upwards and unclip.
Installation:

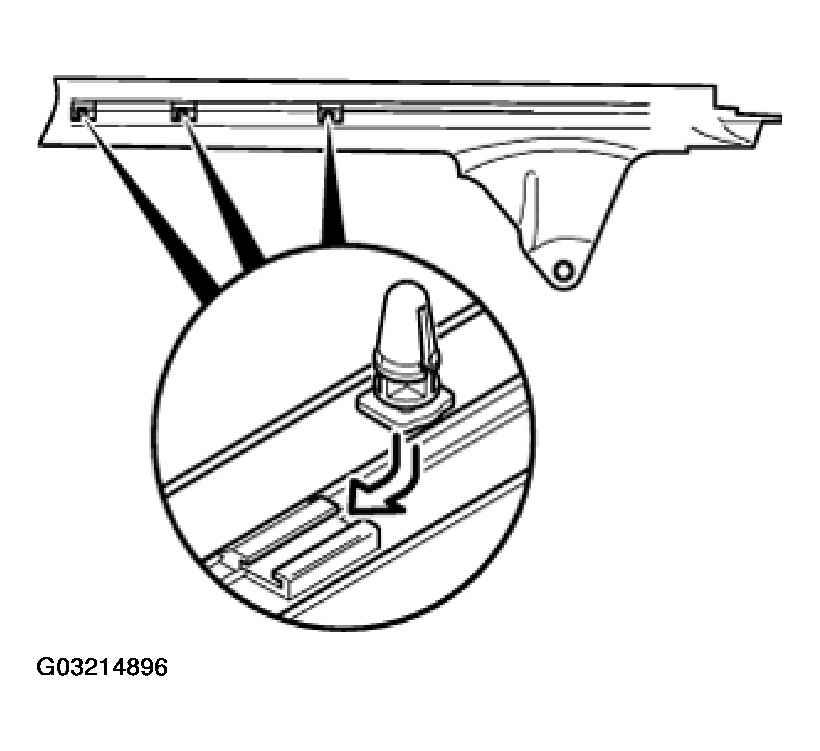

- If necessary, replace damaged clips.
