52 24 005 Removing and installing / replacing rear seat (normal)

Rear seat with seat heating and/ or electrically adjustable headrests:

CAUTION: If necessary, disconnect connector connection prior to removal (risk of damage).

Rear seat with seat heating and/ or electrically adjustable headrests:

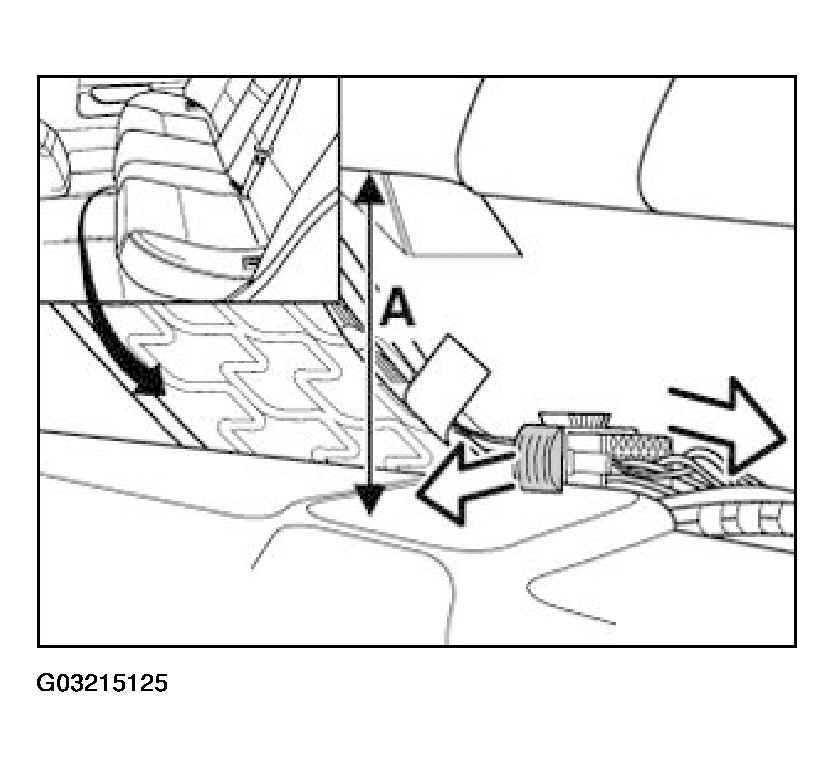

If necessary, unclip rear seat to maximum setting (dimension A), unlock connector and disconnect.

(A) = 150 mm

Installation:

Carry out operational check.

Fig 1: Removing Rear Seat To Maximum Setting (Dimension A)

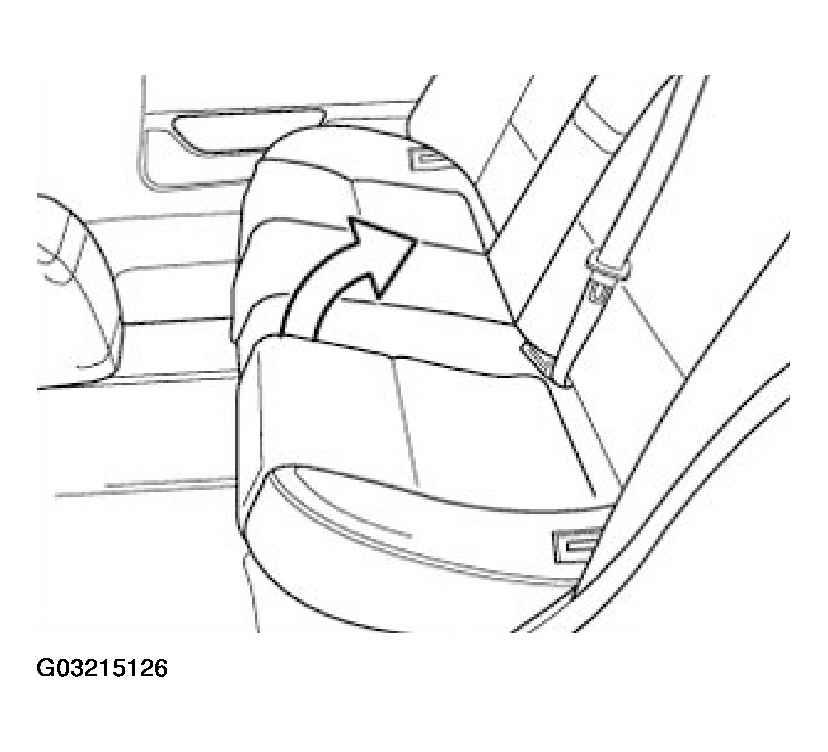

Lift out rear seat.

Fig 2: Lifting Out Rear Seat
