51 42... Removing and installing/replacing protective mat in rear door, left or right (Protection)

Remove rear door window glass,

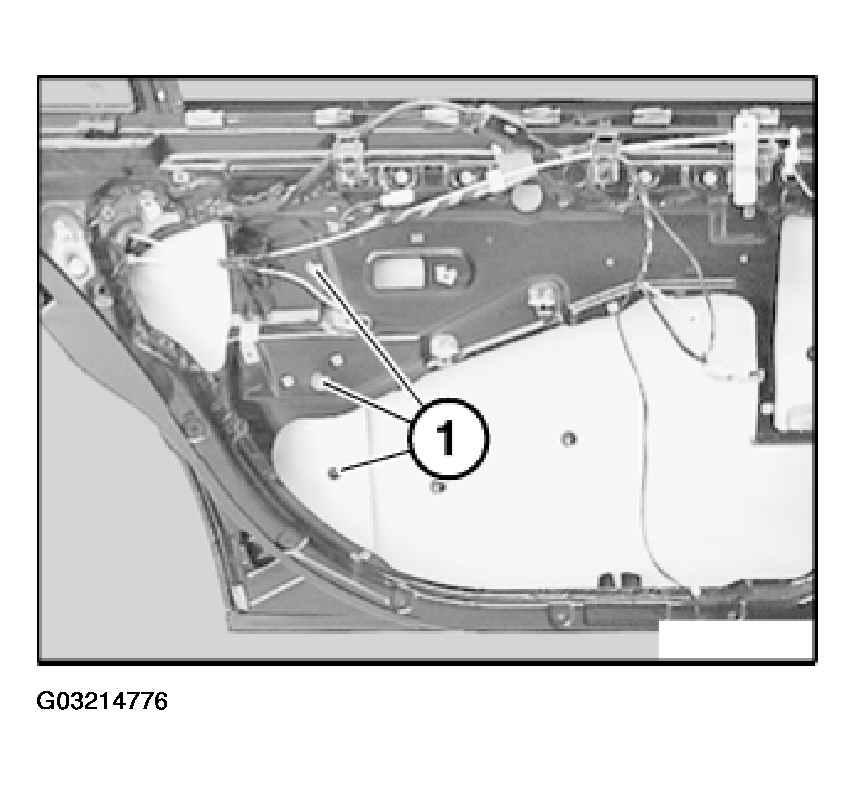

Unscrew bolts (1).

Fig 1: Unscrewing Bolts

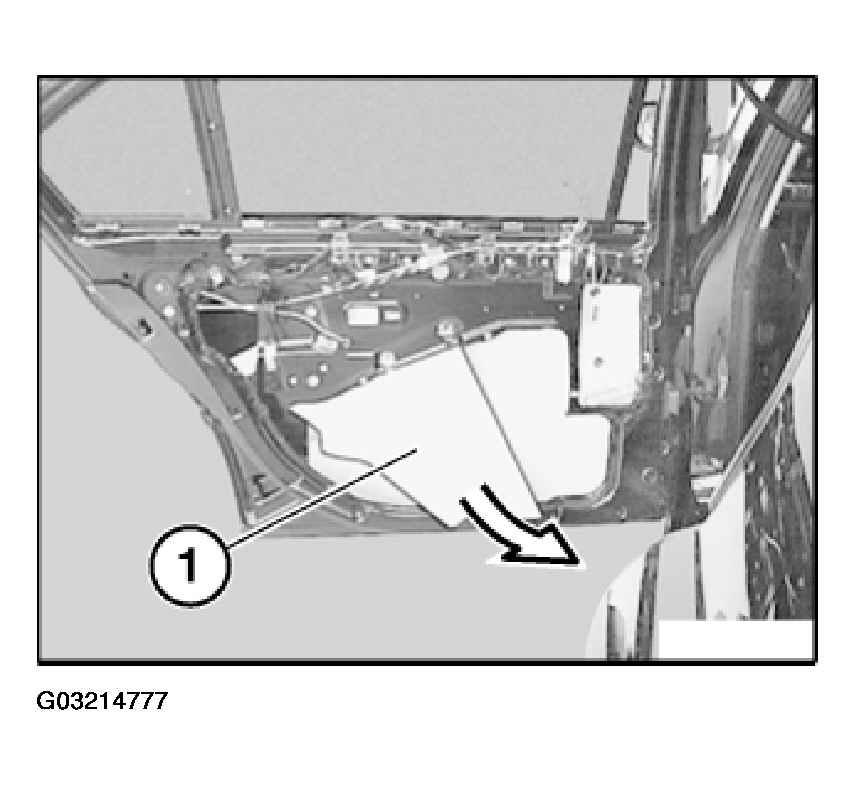

Pull out rear section (1) of protective mat towards rear.

Fig 2: Pulling Out Rear Section Of Protective Mat Towards Rear

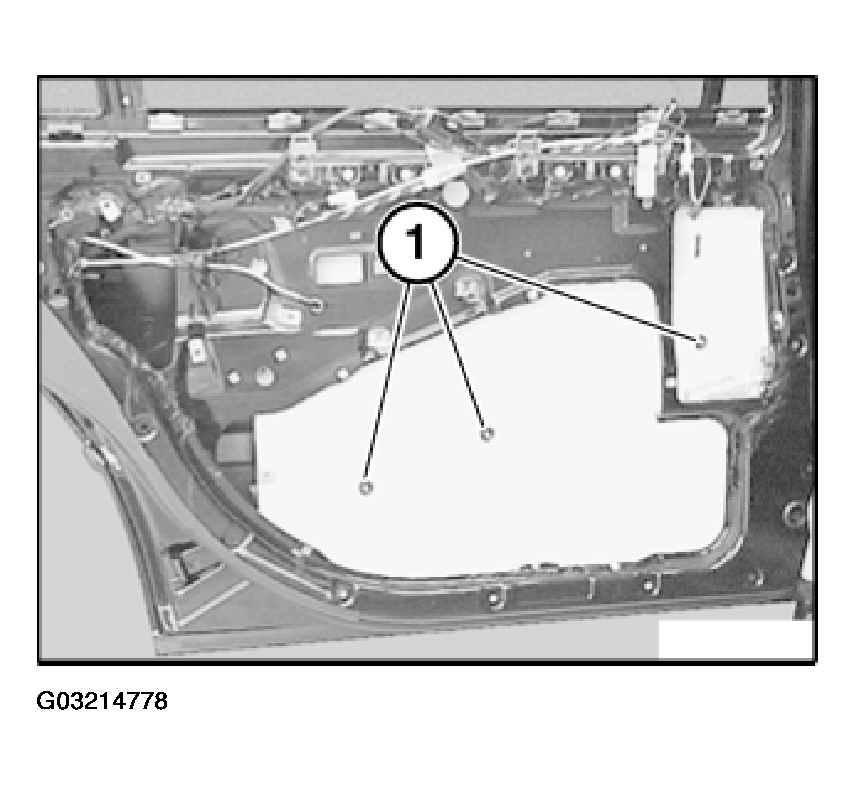

Unscrew bolts (1).

Fig 3: Unscrewing Bolts

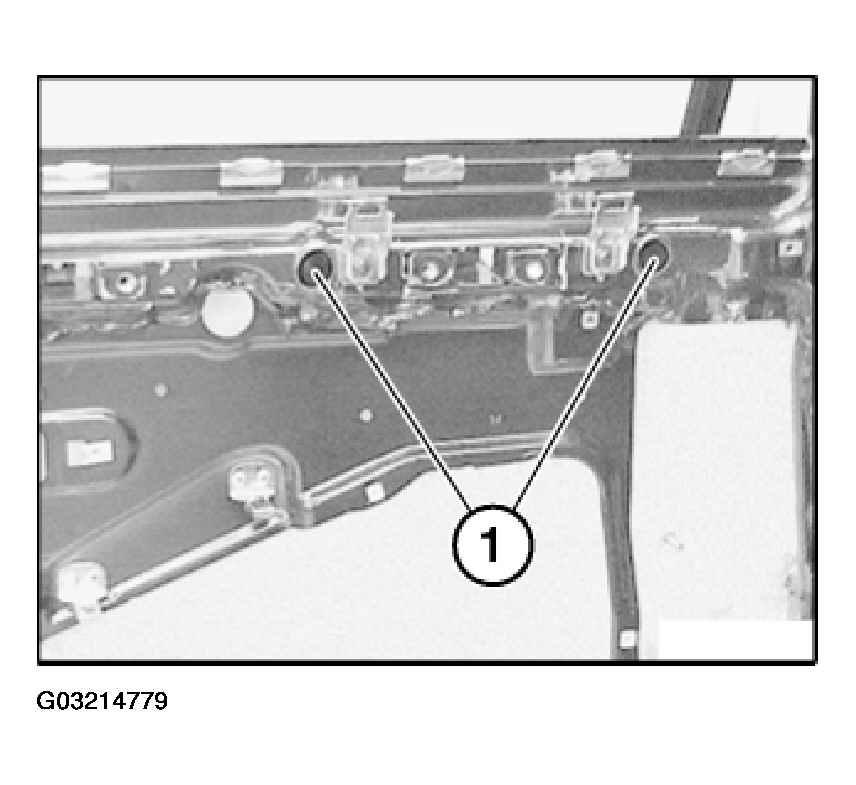

Remove dummy plugs (1).

Fig 4: Removing Dummy Plugs

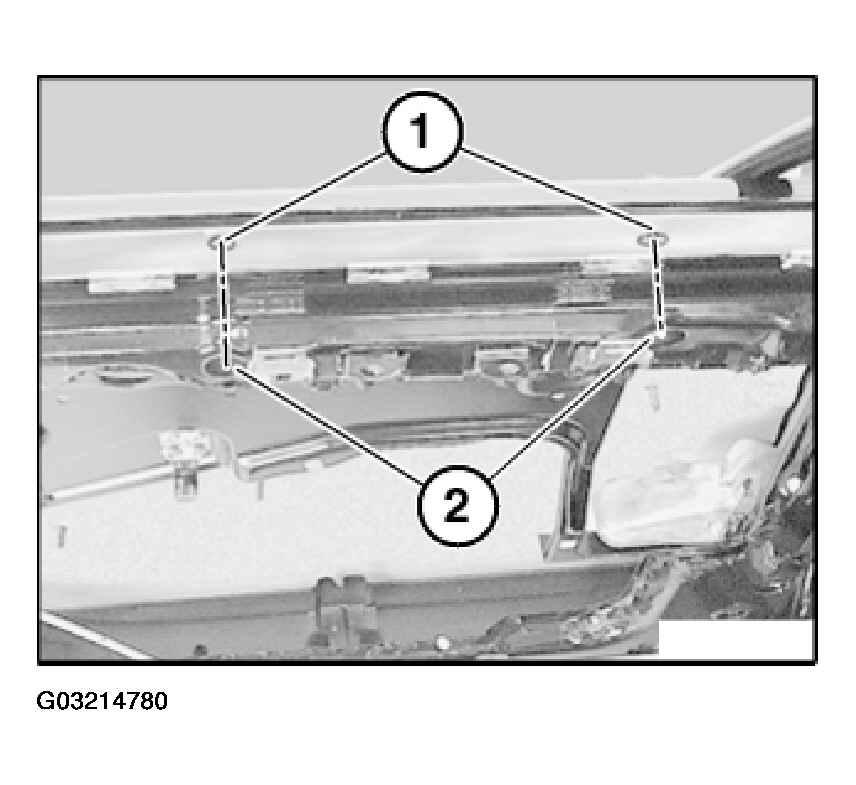

Release screws (1) through round door openings (2).

Fig 5: Releasing Screws Through Round Door Openings

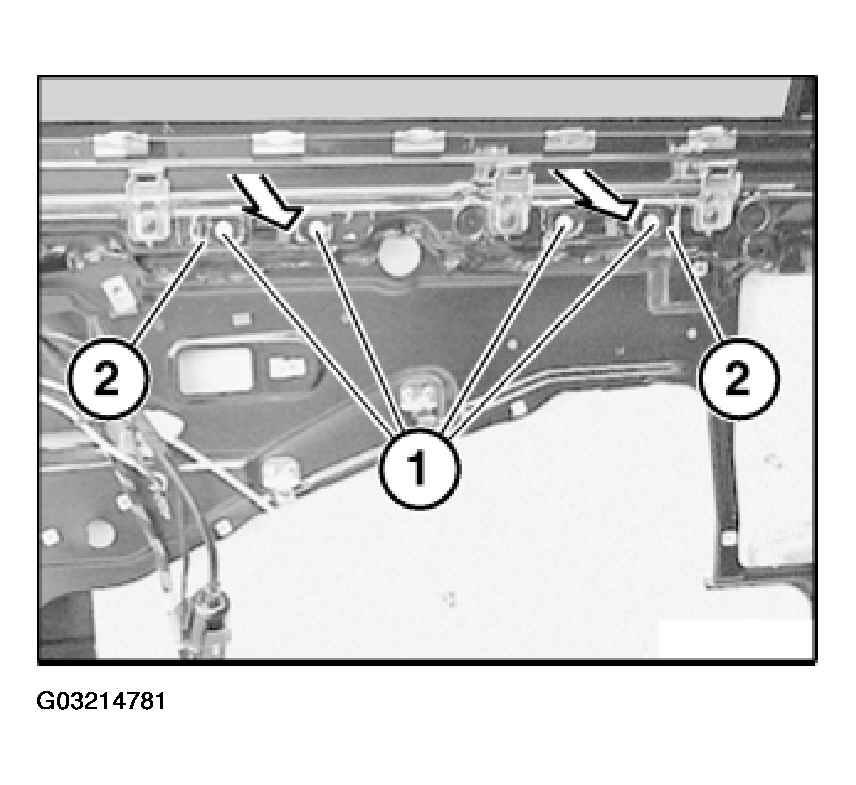

Unscrew bolts (1).

Remove holders (2) from door opening up to stop.

Fig 6: Removing Door Opening Holders

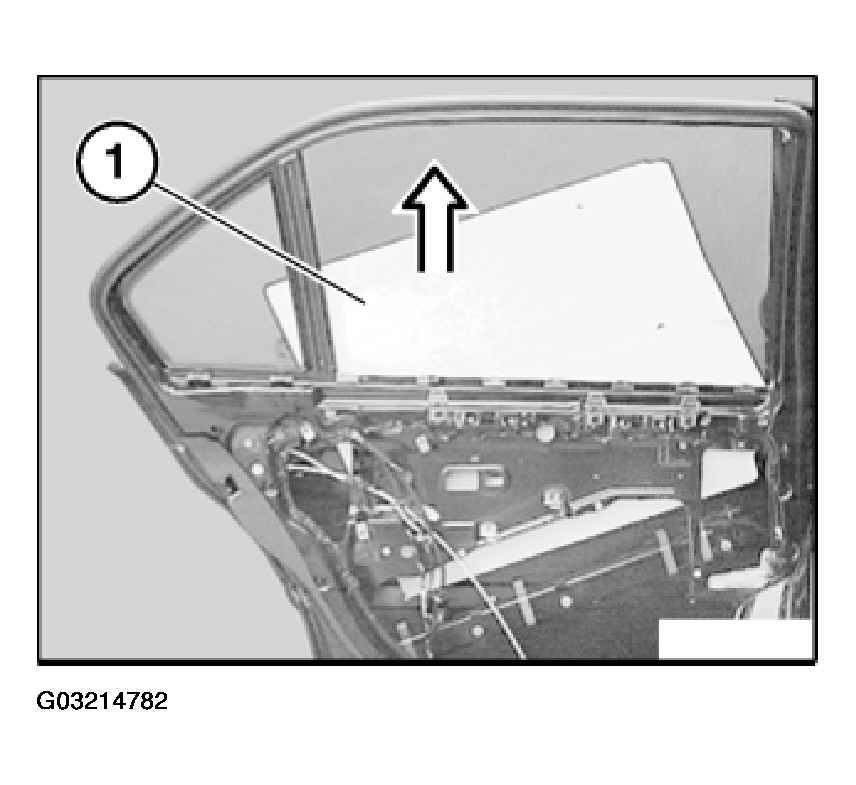

Press front section of protective mat (1) off stud bolts and pull out of window cavity towards top.

Fig 7: Removing Front Section Of Protective Mat
