51 16... Replacing left or right outside mirror housing

1. Remove mirror glass, refer to 51 16 026 REPLACING MIRROR GLASS

Tilt mirror forward. Unclip retaining clips and remove cover.

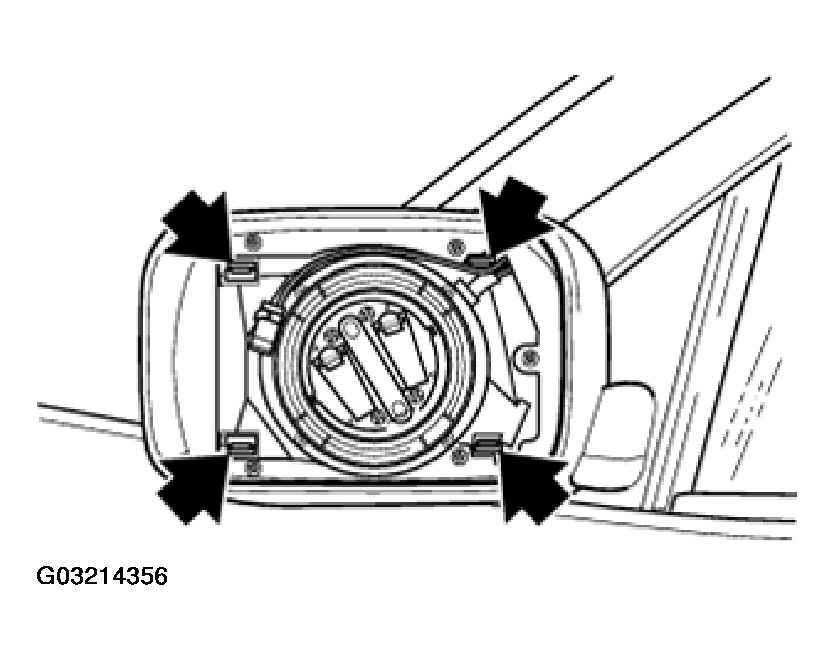

Fig 1: Removing Mirror Cover

Fold mirror forward again as far as possible. Unfasten screws and remove "housing glasses".

Installation:

Carry out operational check.

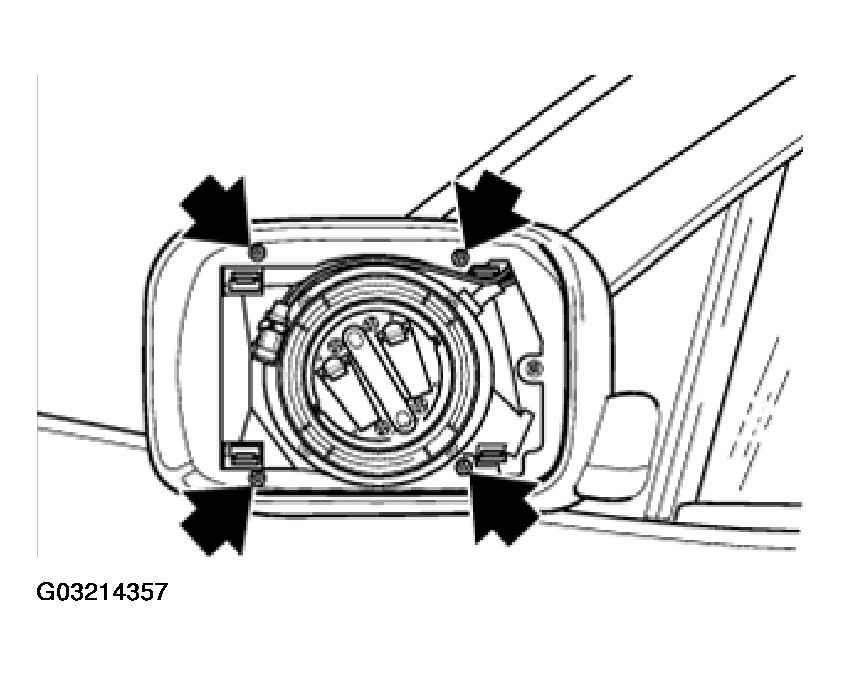

Fig 2: Removing Outside Mirror Housing
