51 16 026 Replacing mirror glass

NOTE: With the E 38, BMW offers a choice of normal mirror glass or mirror glass with automatic dip action (electro-chrome technology). The removal procedure differs from one type of mirror to another (risk of damage).

Mirror without automatic dip action:

The mirror glass does not have a plastic frame.

IMPORTANT: Make sure car has room temperature to prevent the clips from breaking off.

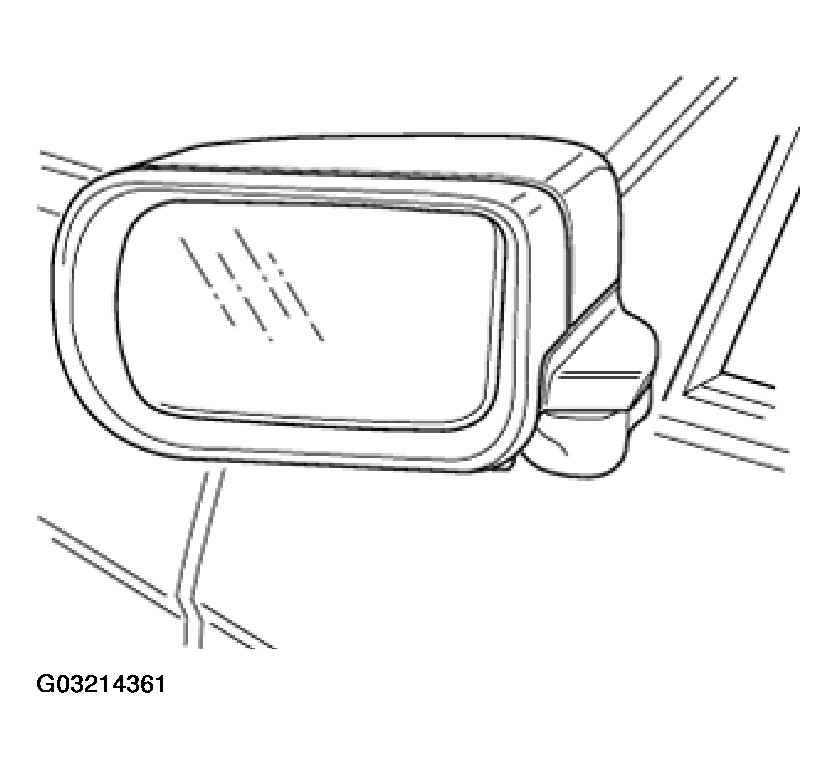

Fig 1: Removing Mirror Glass

Tilt mirror glass.

Remove cement between mirror glass and edge of housing (risk of damage).

Unclip mirror glass using a wooden wedge.

If applicable, remove connector (mirror glass heating) and remove mirror glass.

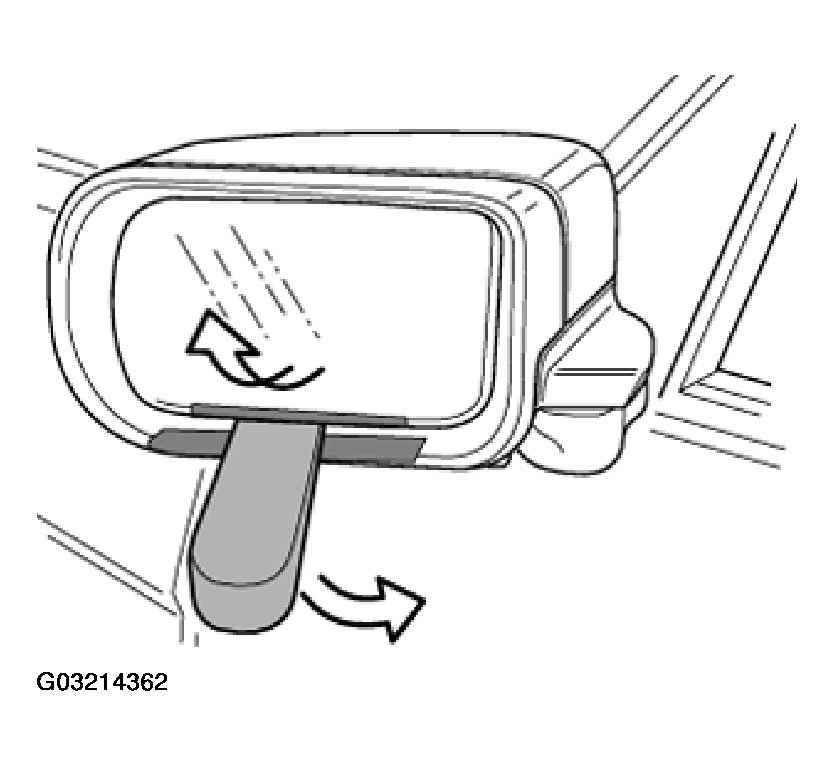

Fig 2: Removing Cement Between Mirror Glass & Edge Of Housing

Installation:

Install mirror glass that clips are seated on tabs and clip on glass. Ensure correct engagement.

Check function.

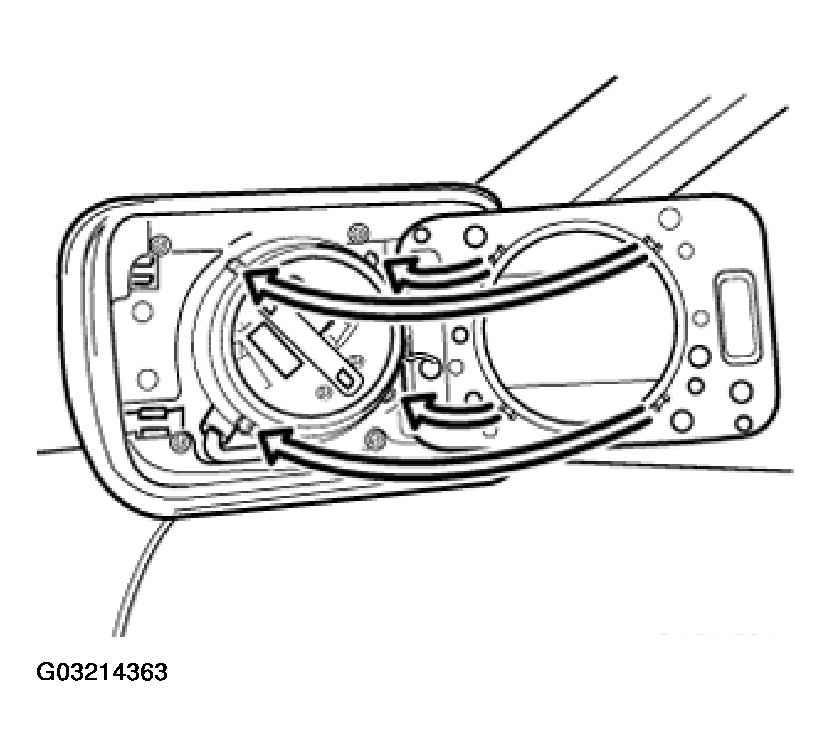

Fig 3: Installing Mirror Glass

Mirror with automatic dip action:

Slide journal to right (bayonet connection) and carefully lift off mirror glass (1).

Fig 4: Lifting Off Mirror Glass

If applicable, remove connector (1) (mirror glass heating). Unlock connector (2) (only 1 detent hook at front) and pull downwards to remove.

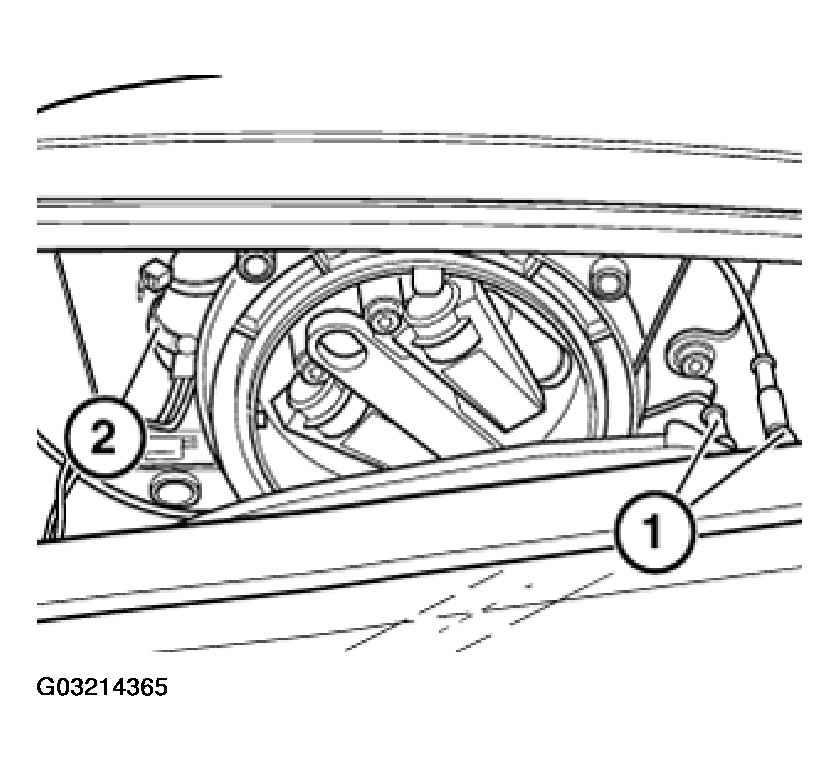

Fig 5: Removing Connectors

Installation:

Place mirror glass with apertures over lugs.

Slide pin to left until pin is perpendicular. Check function.

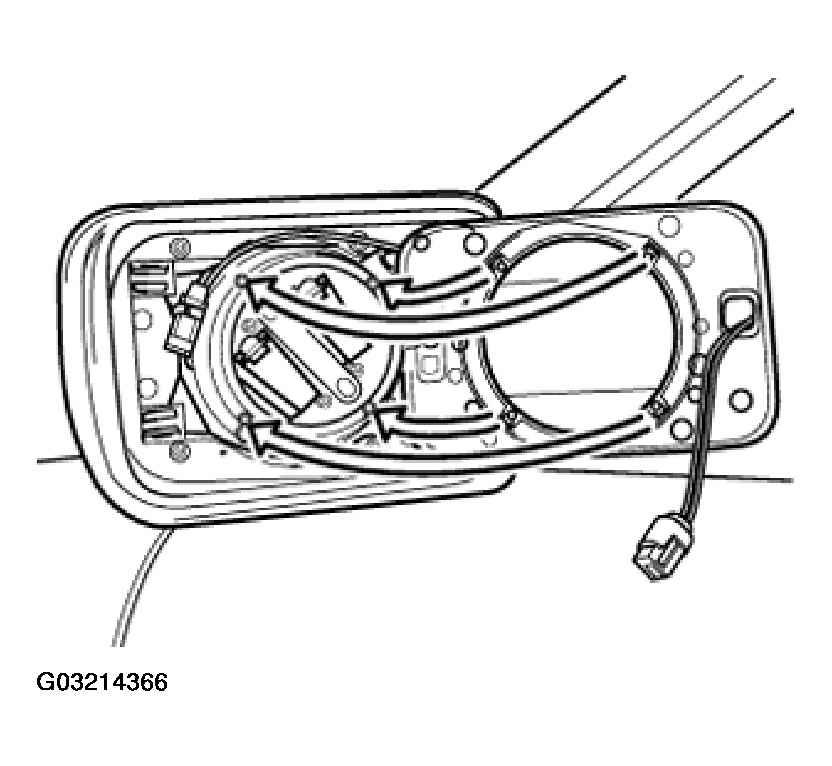

Fig 6: Installing Mirror Glass
