51 11 158 Replacing base plate for licence plate

Unscrew and remove licence plate.

Remove body molding, refer to 51 11 170 REPLACING BODY MOLDING FOR LEFT OR RIGHT BUMPER

Lift out expanding rivets (1) underneath and expanding tapers (2) on top.

Unclip top of licence plate base plate and pull forwards and downwards to remove.

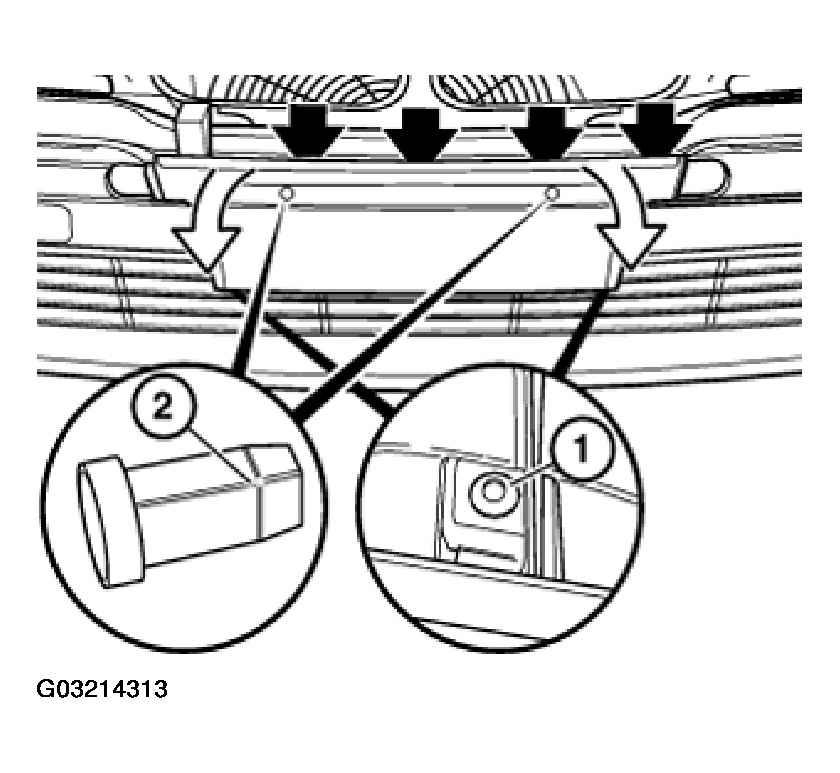

Fig 1: Removing License Plate Base Plate
G03214313
