51 11 170 Replacing body molding for left or right bumper

CAUTION: If a headlight cleaning system is fitted, the bumper must be removed to enable the spray nozzles to be removed (risk of damage),

Unclip body molding with hardwood wedge and remove, first from front (1), then from side (2).

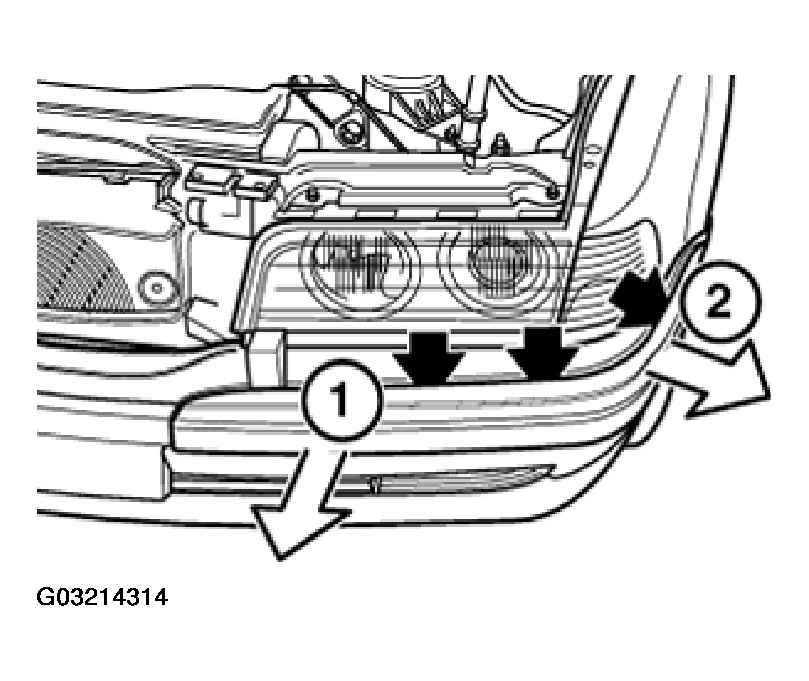

Fig 1: Removing Body Molding For Left Or Right Bumper

Unclip and remove chrome finisher from body molding.

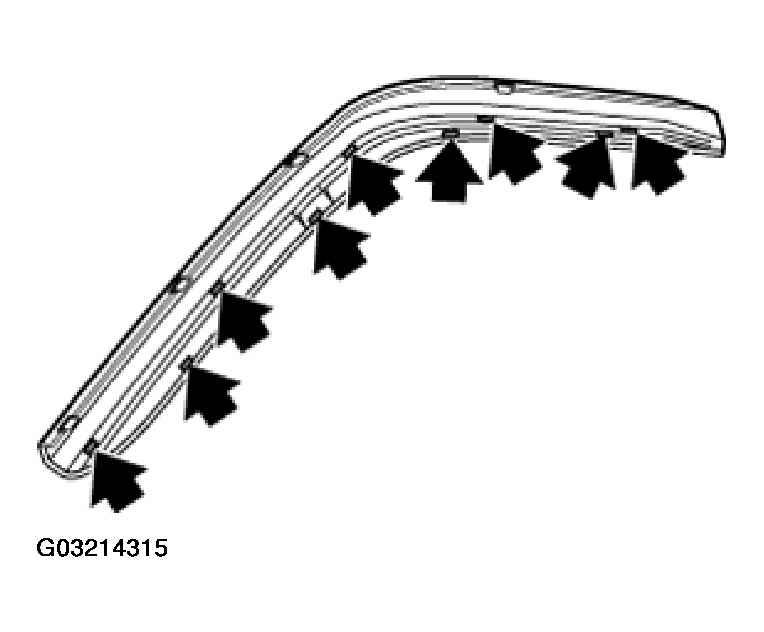

Fig 2: Removing Chrome Finisher From Body Molding
