51 31 000 Removing and installing windshield (Protection)

Provision of work accessories:

CAUTION: Danger of injury!
The weight of the windshield is considerably greater than on the normal version. The above-mentioned special tools are therefore absolutely essential.
A second person is necessary to help remove and install the windshield.

* Sourcing reference: BMW Parts Service

Remove engine bonnet/hood, refer to 41 61 000 REMOVING AND INSTALLING ENGINE HOOD . Remove interior rearview mirror, refer to 51 16 060 Removing and installing or replacing interior rearview mirror .

If necessary, remove rain sensor.

Remove both sun visors and counter supports, refer to 51 16 080 REMOVING AND INSTALLING OR REPLACING SUN VISOR AND LEFT OR RIGHT COUNTER SUPPORT .

Remove both panels for front roof pillar (A-pillar finishers), refer to 51 43 201 REMOVING AND INSTALLING OR REPLACING TRIM FOR FRONT LEFT OR RIGHT ROOF PILLAR .

Remove cover from windshield. Refer to 61 61 270 REMOVING AND INSTALLING COMPLETE WIPER CONSOLE .

Remove both gutter strips on windshield, refer to 51 31 030 REMOVING AND INSTALLING OR REPLACING LEFT OR RIGHT GUTTER ALONG WINDSHIELD .

Remove both windshield wiper arms. Refer to 61 61 100 REMOVING AND INSTALLING/REPLACING BOTH WINDSHIELD WIPER ARMS .

Cold processing:

Comply with instructions on gluing windows, refer to 51 31... INSTRUCTIONS ON GLUING WINDSCREEN

Warm processing:

Open aluminum membrane at rear end of cartridge. Place cartridge in cartridge oven.

Heat glue cartridges to 80°C for one hour in oven (sourcing reference: BMW Parts Service).

Comply with instructions on gluing windows, refer to 51 31... INSTRUCTIONS ON GLUING WINDSCREEN

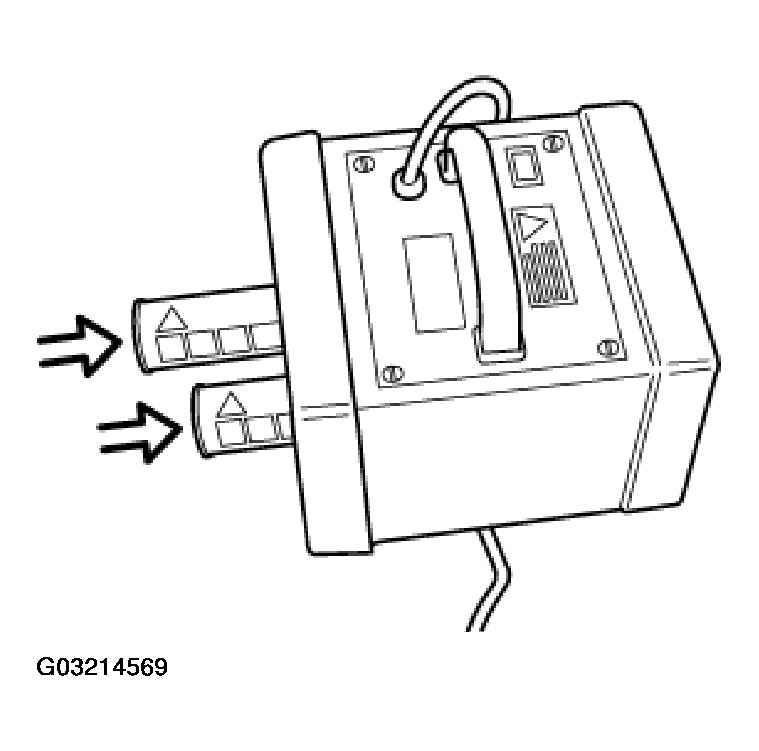

Fig 1: View Of Oven
G03214569
NOTE: Cover engine compartment (top) and side panels with protective covers.

Lower front headliner slightly.

Disconnect left and right plug connections for windshield heating and fix cable to windshield.

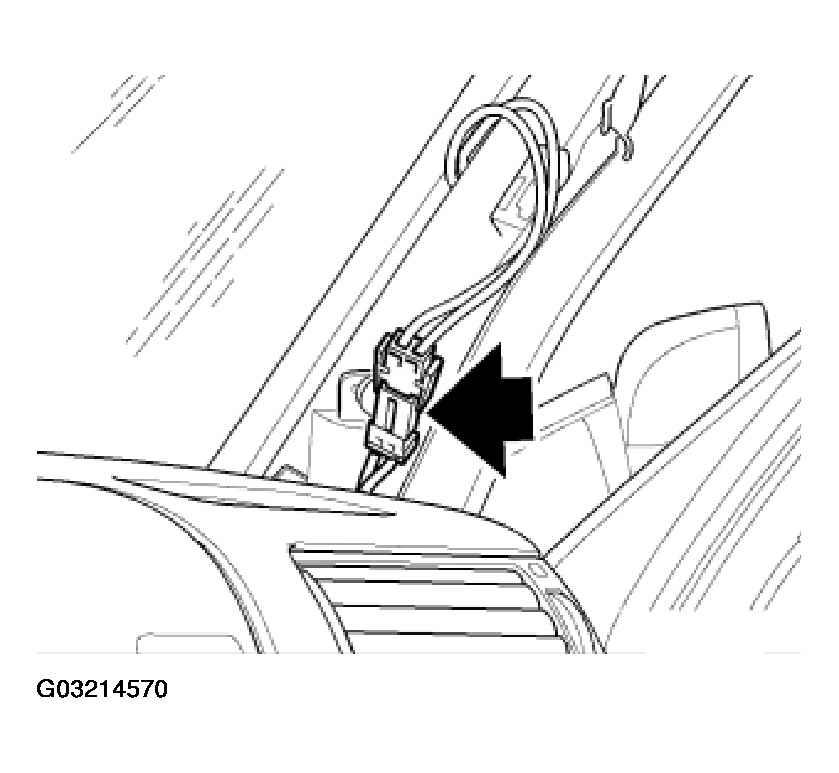

Fig 2: Disconnecting Left & Right Plug Connections
G03214570

Mark area of cable entries on windshield.

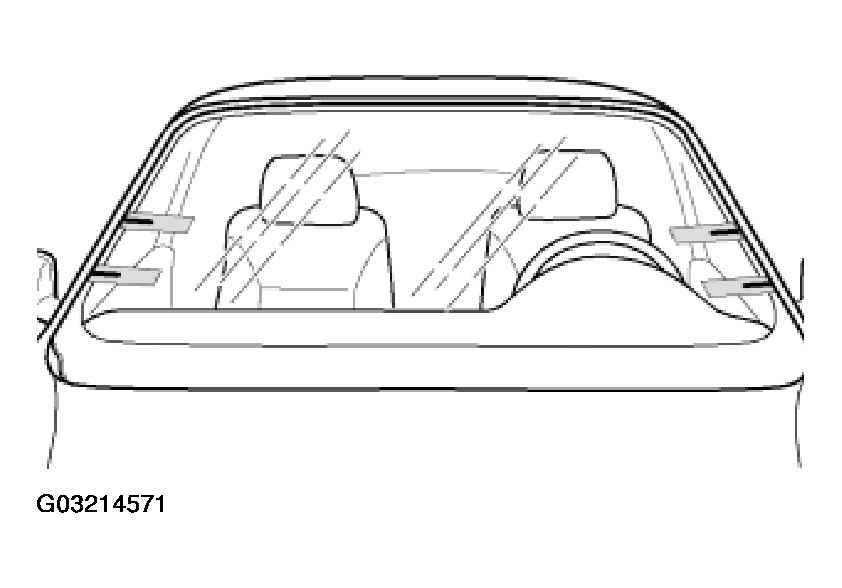

Fig 3: Identifying Area Of Cable Entries On Windshield
G03214571

Partially remove seal and let it hang down.

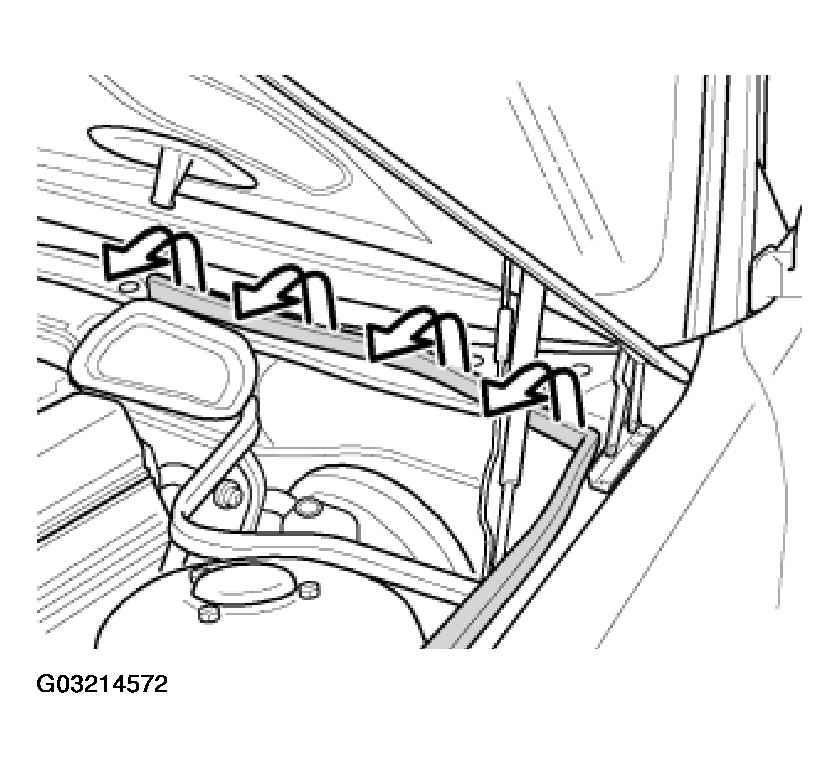

Fig 4: Removing Seal
G03214572

Lift out expanding rivets and pull finisher (1) upwards to remove.

Seal hose connection for windshield wash nozzles on hood lid.

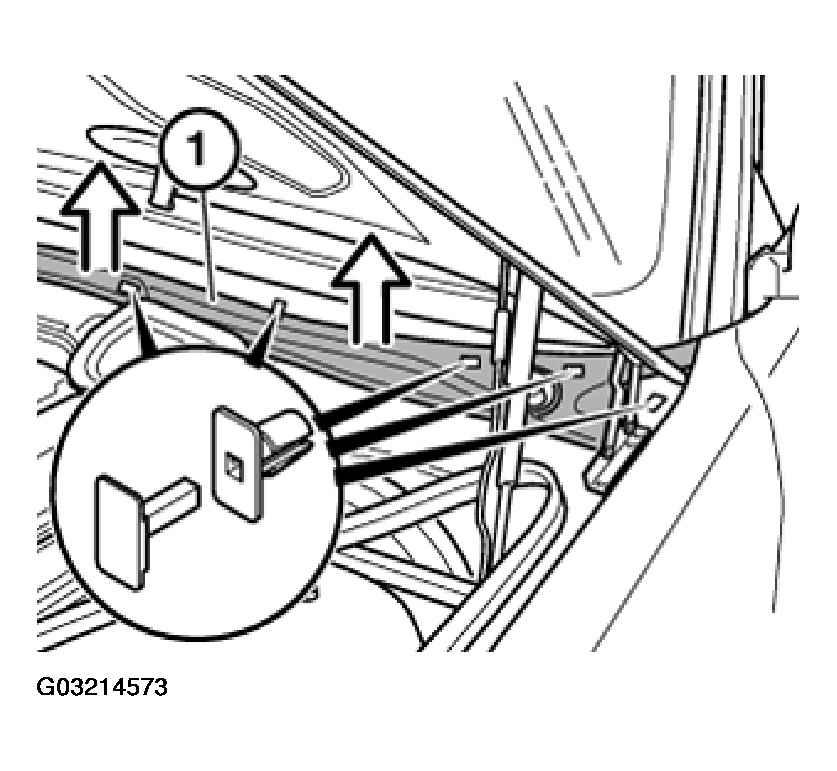

Fig 5: Removing Expanding Rivets & Finisher
G03214573

Removal: Removal of windshield is described separately from installation. Assembly sequence for removal and installation is different.

CAUTION: Seal is reinforced with aluminum strip.
Turning carefully, wind seal out (windshield breakage).

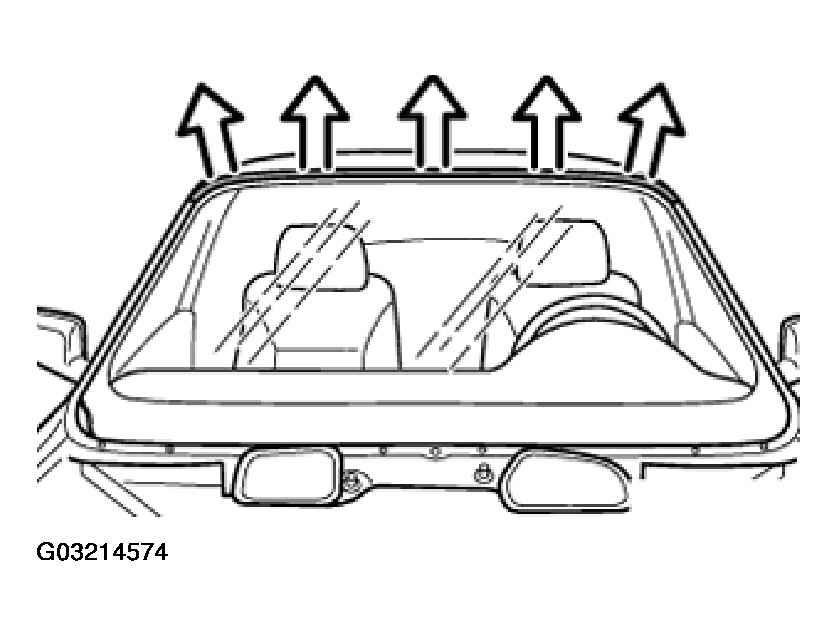

Fig 6: Removing Wind Seal
G03214574

Mask body all around with fabric adhesive tape (sourcing reference: BMW Parts Service).

  1. Windshield
  2. Glue bead
  3. Body aperture
  4. Fabric adhesive tape

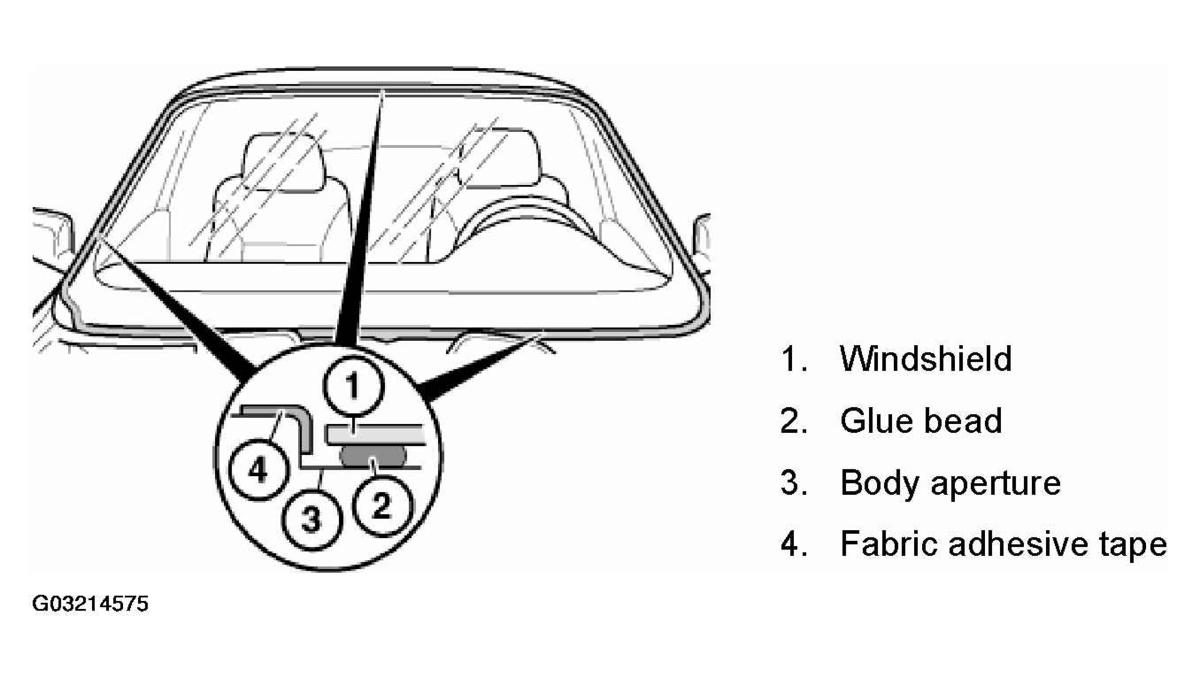

Fig 7: Masking Windshield Body All Around With Fabric Adhesive Tape
G03214575
CAUTION: When reusing the windshield:
Do not damage wires for windshield heating.

Fit knife (24 mm blade length, sourcing reference: BMW Parts Service) to the tool.

NOTE: If necessary, resharpen knife with machine running.

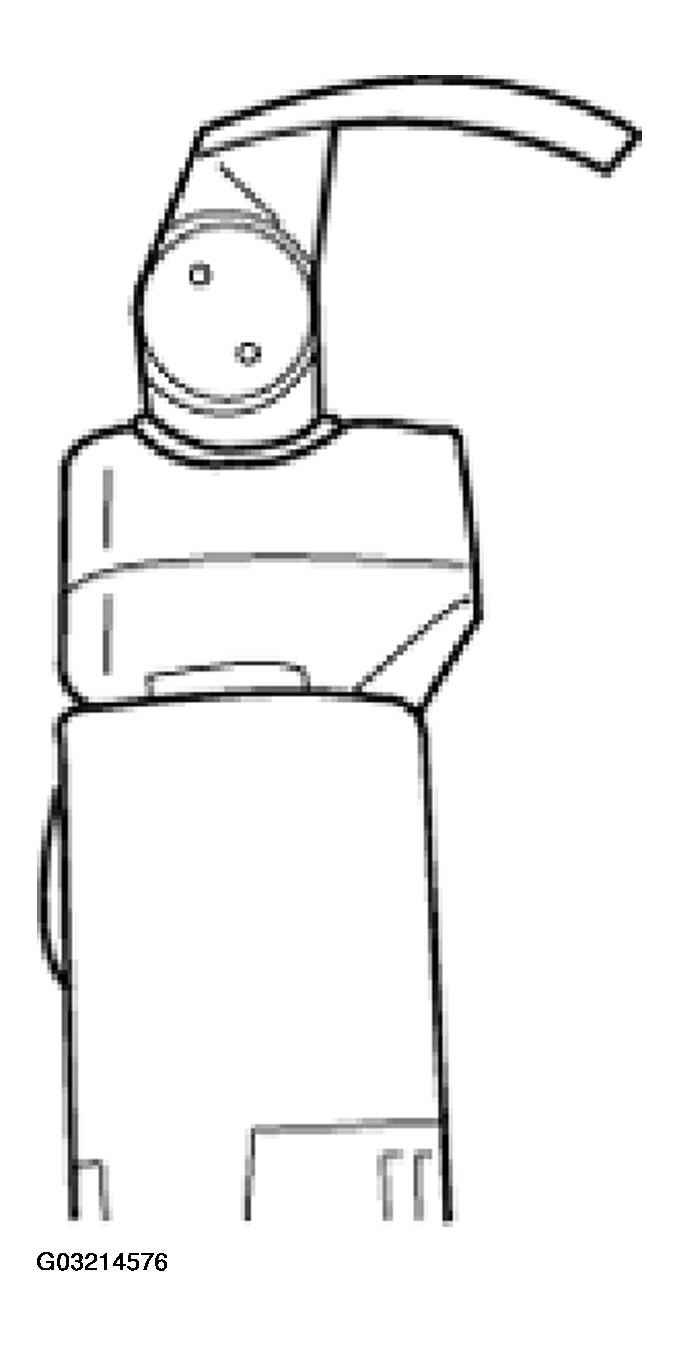

Fig 8: Fitting Knife To Tool
G03214576

Carefully insert knife between body and windshield.

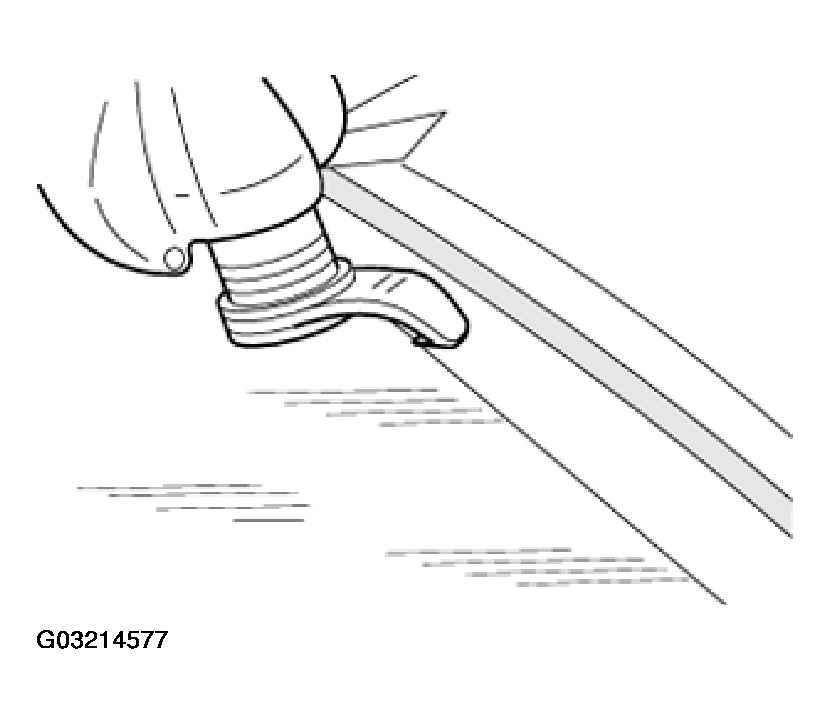

Fig 9: Inserting Knife Between Body & Windshield
G03214577

Guide handle of knife parallel to windshield.

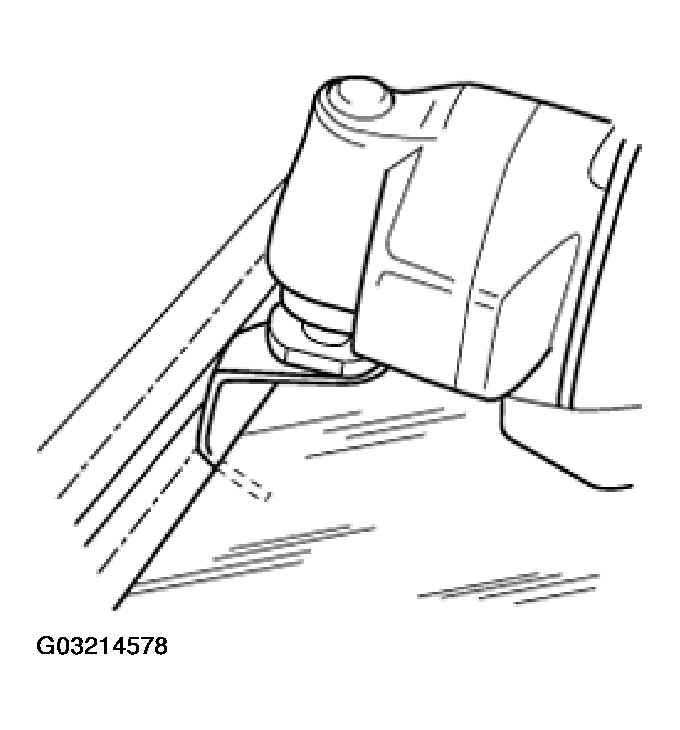

Fig 10: Guiding Handle Of Knife Parallel To Windshield
G03214578

Cut through glue bead as close as possible to windshield in area of A-pillar on left and right and roof edge.

  1. Body aperture
  2. Glue bead
  3. Knife
  4. Windshield (illustration does not correspond to actual glass thickness)

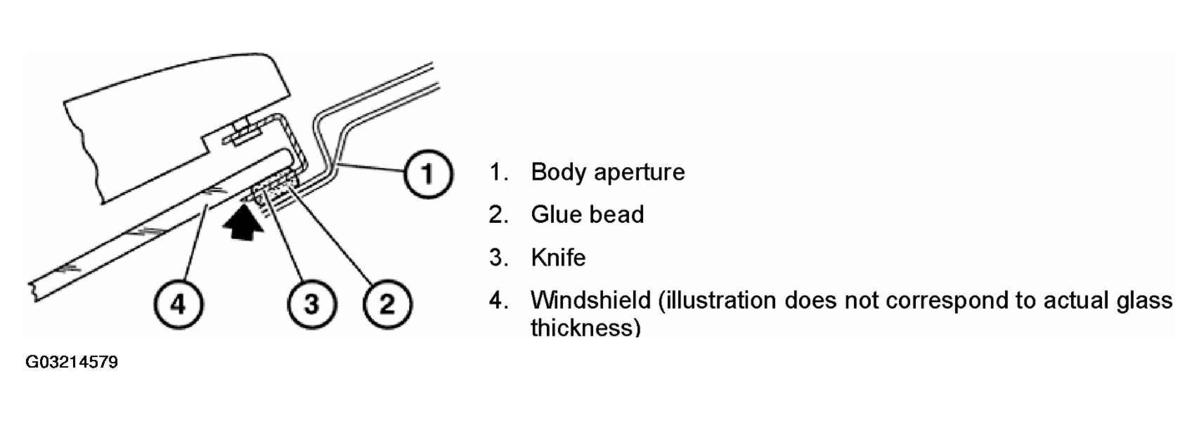

    Fig 11: Cutting Glue Bead To Windshield In Area Of A-Pillar On Left & Right & Roof Edge
    G03214579

Fit knife (36 mm blade length, sourcing reference: BMW Parts Service) to the tool.

NOTE: If necessary, resharpen knife with machine running.

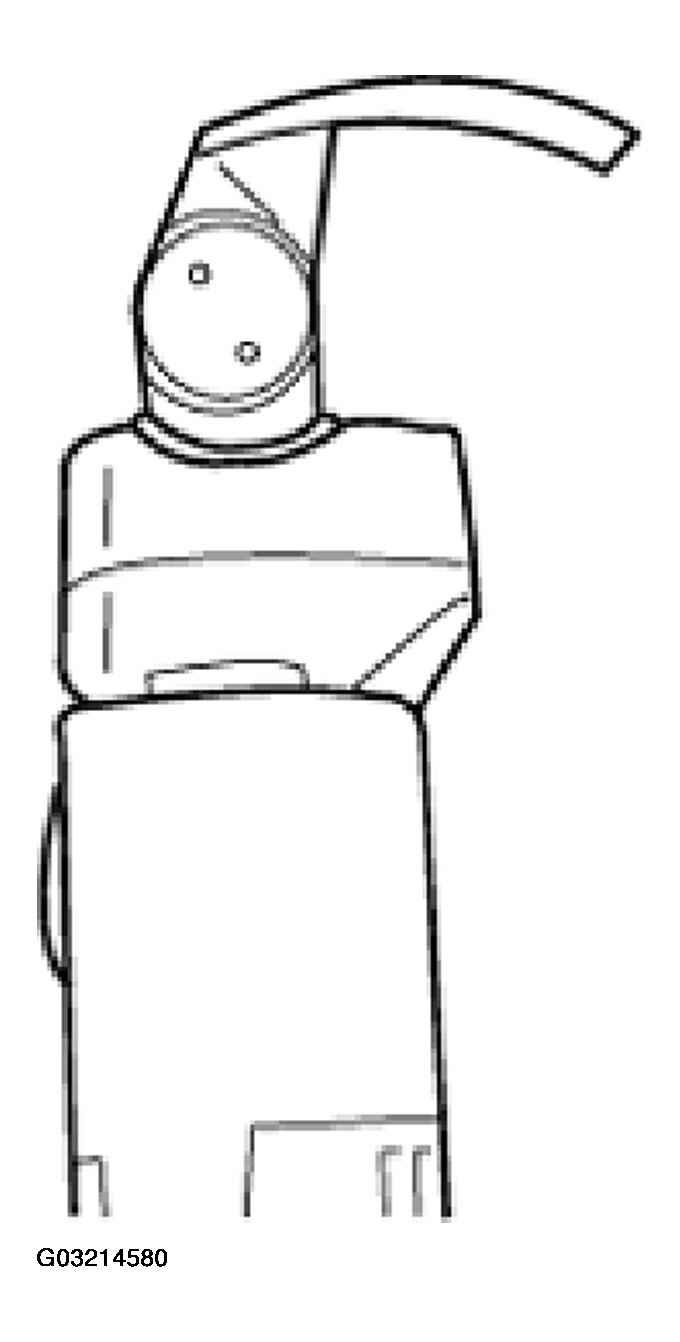

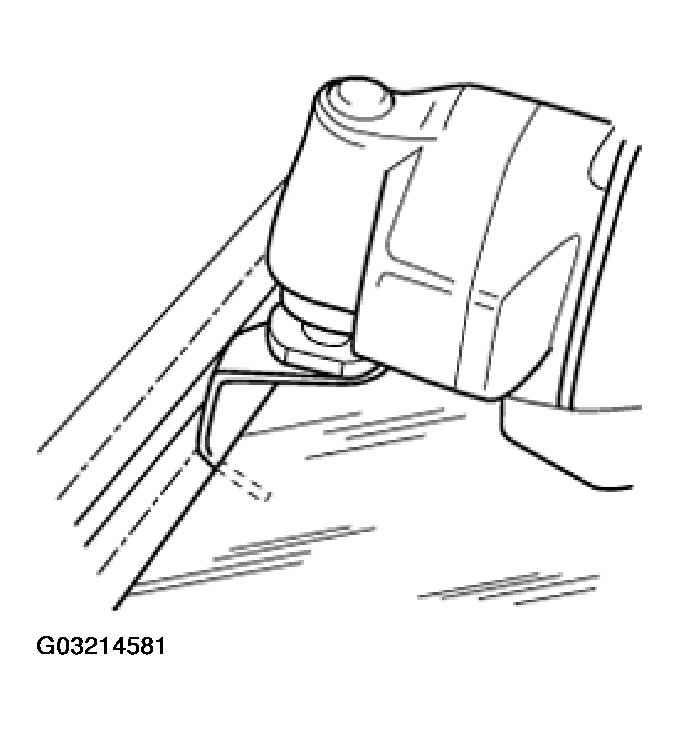

Fig 12: Fitting Knife To Tool
G03214580

Carefully insert knife at cowl panel between body and windshield.

Guide handle of knife parallel to windshield.

Cut through adhesive bead as close as possible to windshield in area of cowl panel.

Fig 13: Cutting Adhesive Bead To Windshield In Area Of Cowl Panel
G03214581

Suspend special tool 51 9 002 (suction lifter) from conventional workshop lifting equipment.

Switch on vacuum pump.

Firmly attach special tool 51 9 002 to outside of windshield in center in upper third.

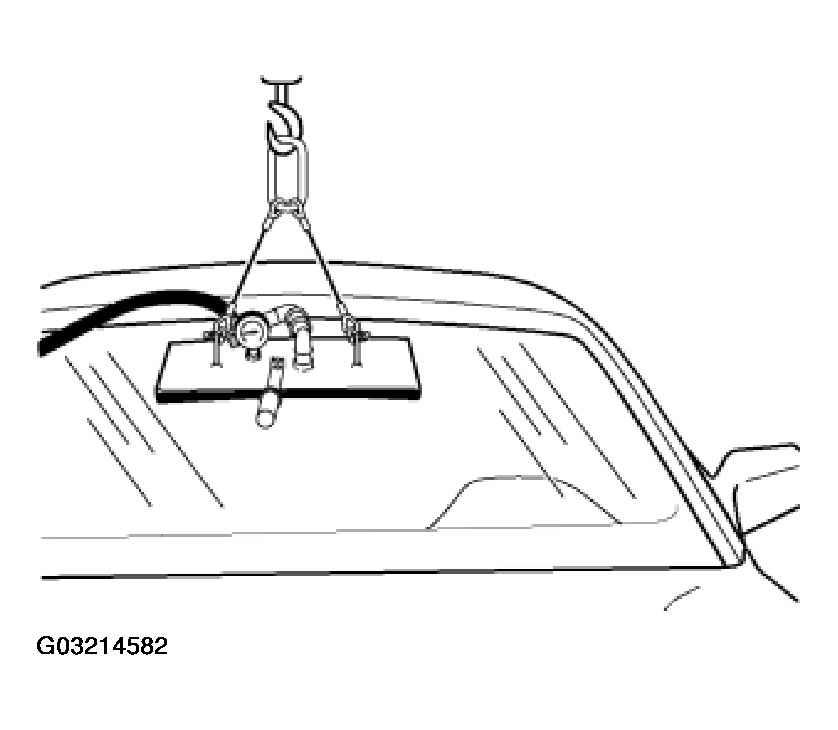

Fig 14: Attaching Special Tool 51 9 002 To Outside Of Windshield In Center In Upper Third
G03214582
CAUTION: Follow operating instructions for special tool 51 9 002.
The pointer of the vacuum gauge must be in the green area.
Do not shorten connecting hose between suction hoist and vacuum pump (minimum length 5 m).
Replacement with original hose only.

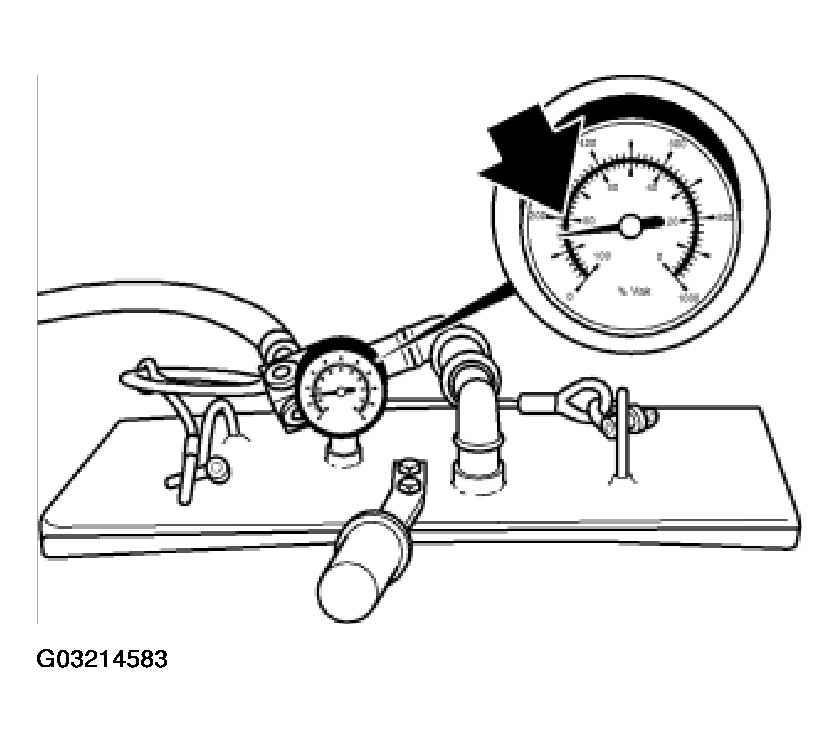

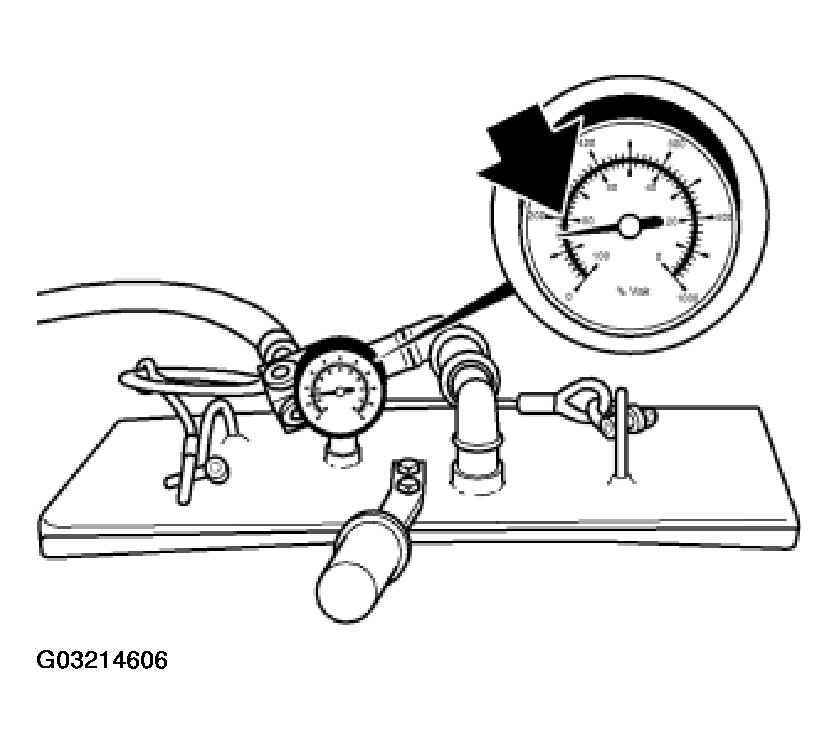

Fig 15: Identifying Position Of Vacuum Gauge Pointer
G03214583

Raise windshield slightly with suction hoist. If necessary, remove any residual traces of bonding carefully.

Lift out windshield and place on assembly stand.

Switch off vacuum pump.

Pull off adhesive masking tape all around.

Fig 16: Raising Windshield With Suction Hoist
G03214584
CAUTION: To ensure long-term corrosion protection, it is absolutely essential to repair paintwork damage (scratches and large-surface damage), refer to 51 31... INSTRUCTIONS ON GLUING WINDSCREEN
CAUTION: The basic filler must have hardened!

Treat body around glued area with BMW-approved materials (repair kit, sourcing reference: BMW Parts Service), refer to 51 31... INSTRUCTIONS ON GLUING WINDSCREEN

NOTE: Note specified ventilation time!

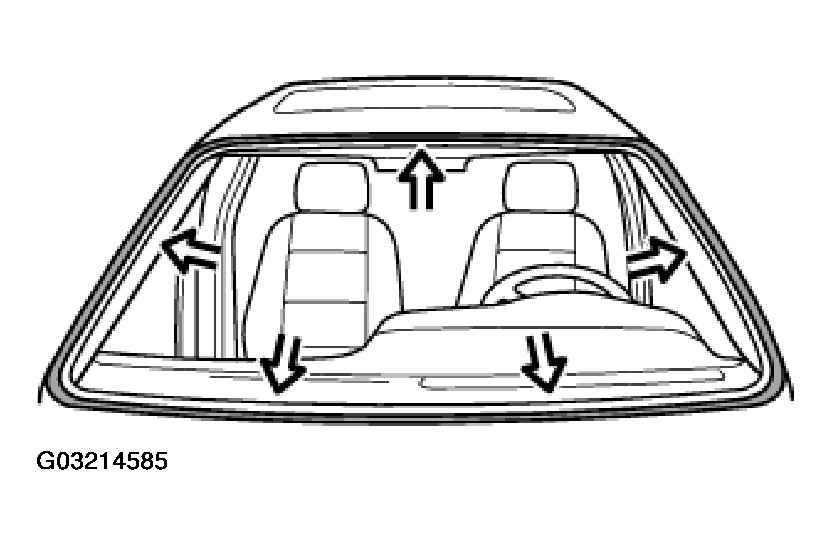

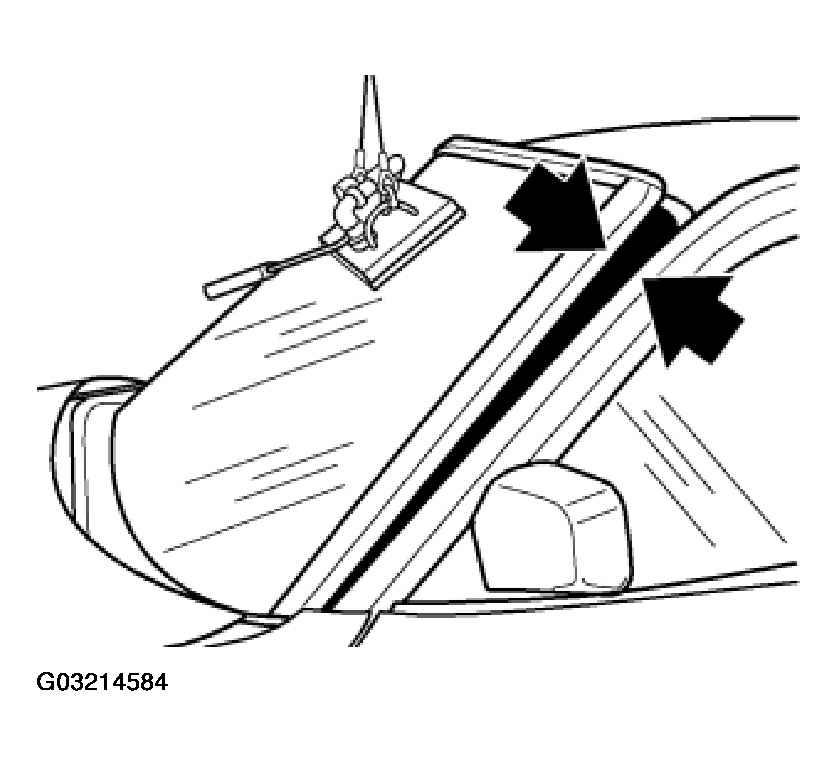

Fig 17: Identifying Windshield Glued Area
G03214585

Installation:

Installation of windshield is described separately from removal. Assembly sequence for removal and installation is different.

Installation check on reused and new windshields:

When installing a new windshield:

CAUTION: Static charge! Unroll protective foil on outside and inside, do not pull off.

Place windshield on support pedestal with inside facing upwards.

When reusing the windshield:

Remove residual glue on windshield with a heavy-duty scalpel (1)to approx. 0.5 mm.

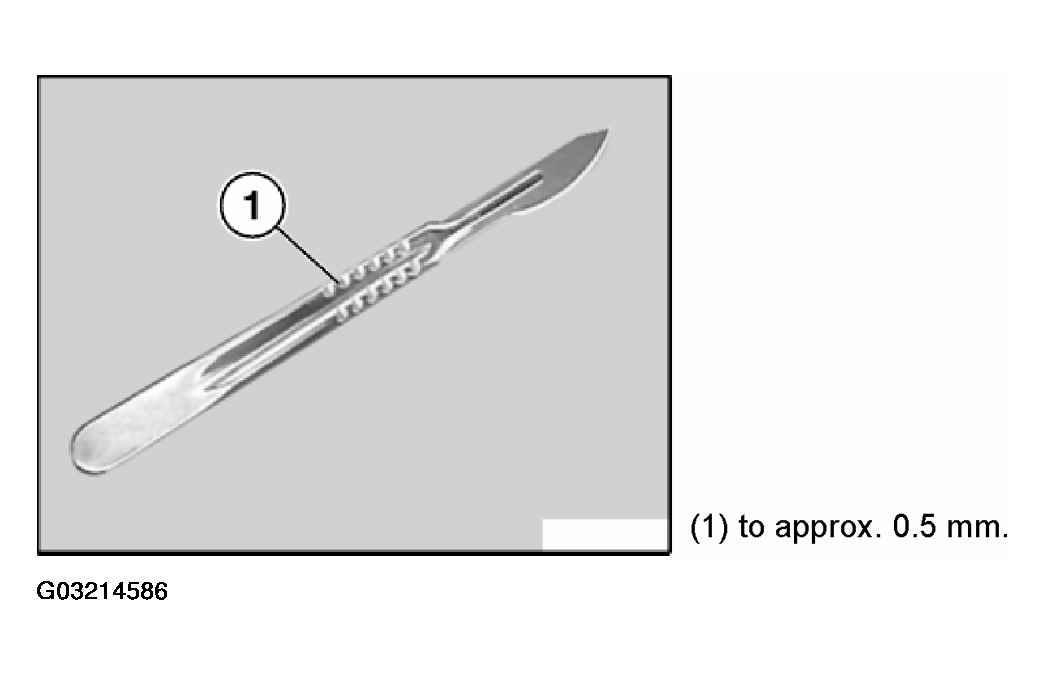

Fig 18: Identifying Scalpel
G03214586

Fit seal (1) to top of windshield and press into place.

NOTE: Seal (1) and windshield are marked in the center (2).

(3) Mirror base

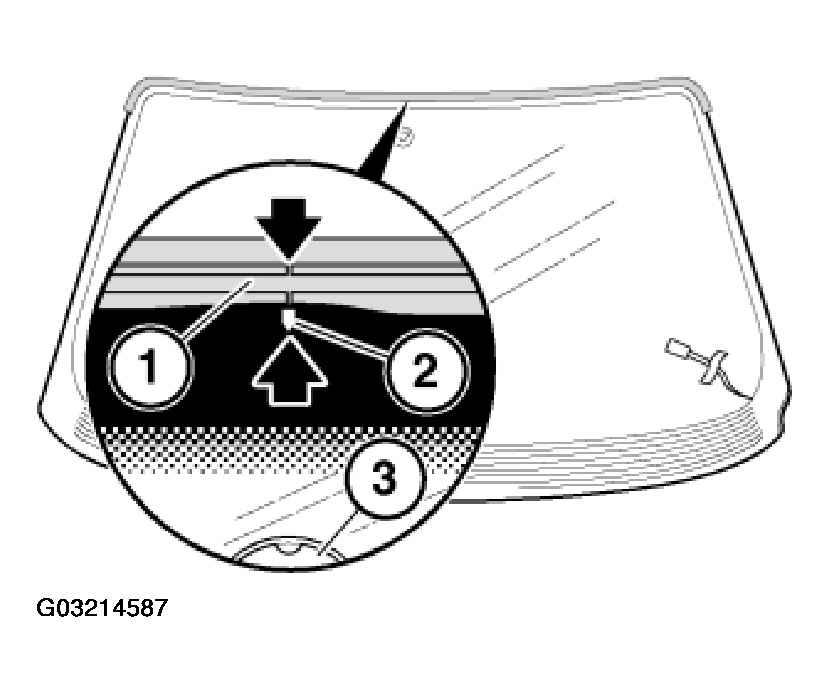

Fig 19: Identifying Marking Of Seal & Windshield
G03214587

Secure cable (1) (rear window heating) with adhesive tape.

Treat windshield in glued area (A) with materials approved by BMW (repair kit, sourcing reference: BMW Parts Service), refer to 51 31... INSTRUCTIONS ON GLUING WINDSCREEN

(A) = 21 mm

NOTE: Note specified ventilation time!

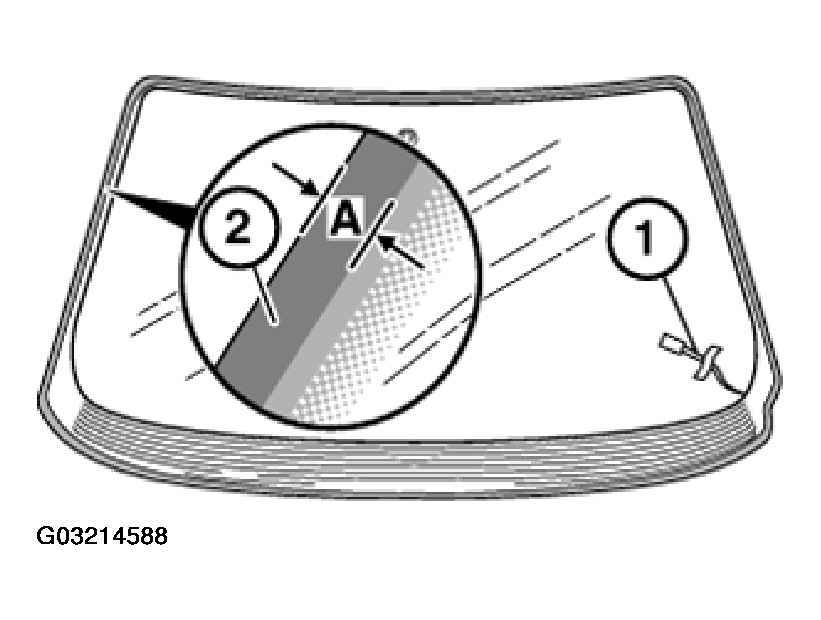

Fig 20: Securing Cable (Rear Window Heating) With Adhesive Tape
G03214588

Immediately before installing windshield:

Remove glue residue in body cutout to approx. 0.5 mm thickness.

NOTE: Cut off old glue carefully with a heavy-duty scalpel to avoid damaging the paint finish in body cutout.
CAUTION: Clean freshly cut residual bead with alcohol only.
Do not under any circumstances use Sika bonding agent 205/5 or glass primer 205/5.
Fig 21: Removing Glue Residue
G03214589

Installation of spacer buffers:

Two different spacer buffers are fitted. Adhere precisely to installation position (broken windshield).

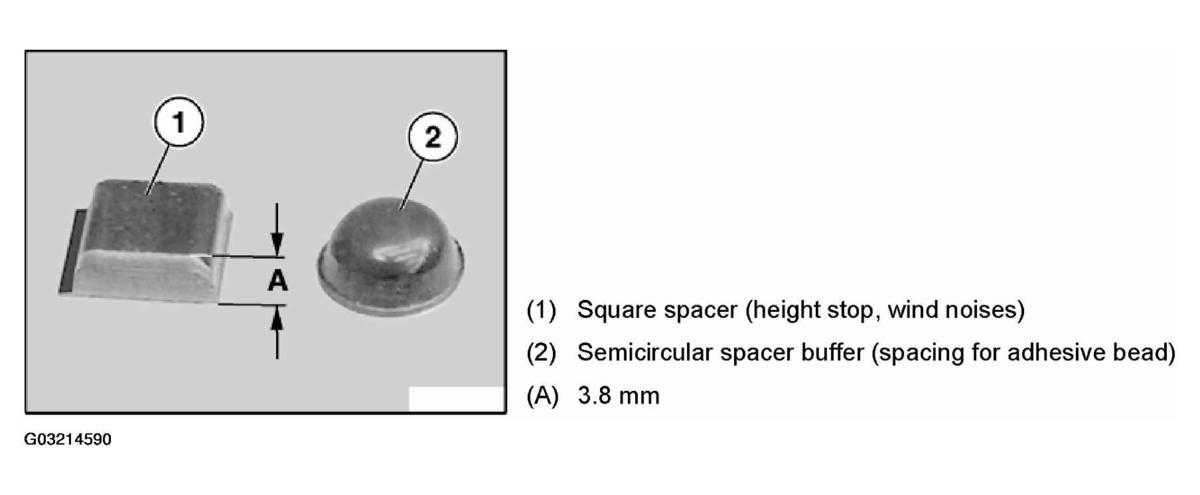

  1. Square spacer (height stop, wind noises)
  2. Semicircular spacer buffer (spacing for adhesive bead)

(A) 3.8 mm

CAUTION: Wind noises may result if measurement (A) is not 3.8 mm.
Fig 22: Identifying Square & Semicircular Spacer
G03214590
CAUTION: To avoid breaking windshield:
Before sticking on new spacer buffers, remove remains of old spacer buffers completely.
Stick on semicircular spacer buffers (1) "outside" in molding (2) on left/right.

(3) Expanding foam tape

NOTE: Expanding foam tape (3) over gap between sound insulation and cowl panel must be fitted from left to right, fit if necessary.

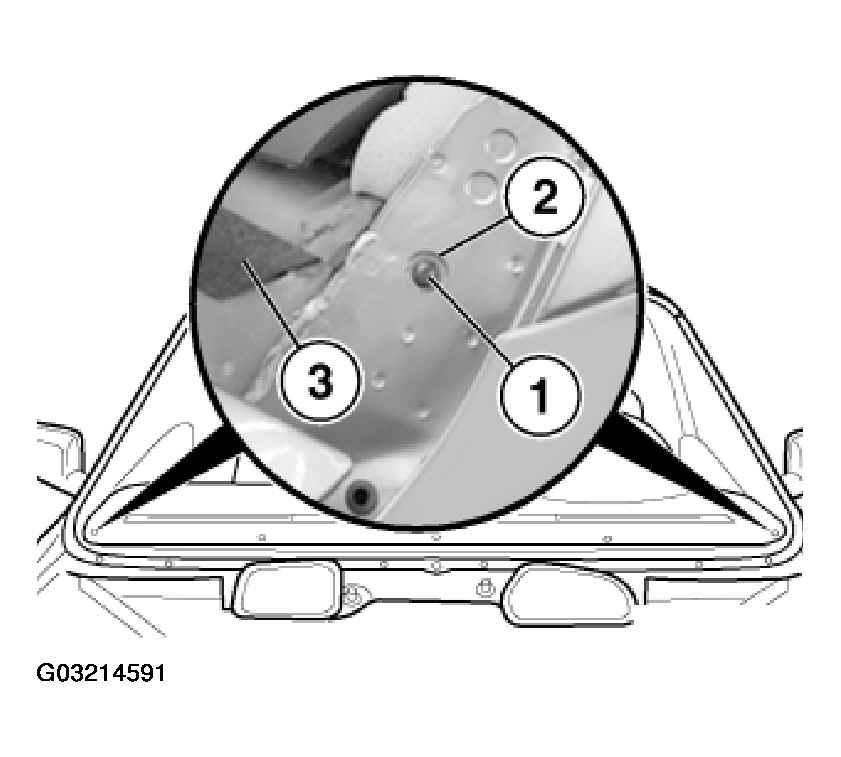

Fig 23: Sticking Semicircular Spacer Buffers "Outside" In Molding On Left/Right
G03214591

In direction of travel, left:

Stick on semicircular spacer buffers (1) "center/outside" between bores (2).

NOTE: Attach semicircular spacer buffer (1) to end of metal radius (3).

(4) Expanding foam tape

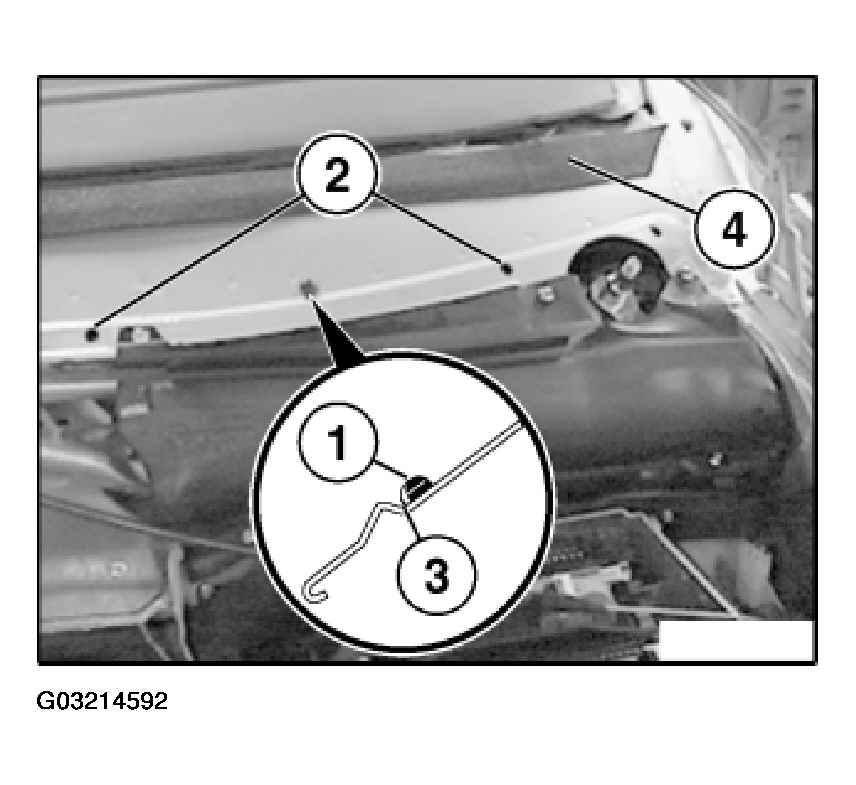

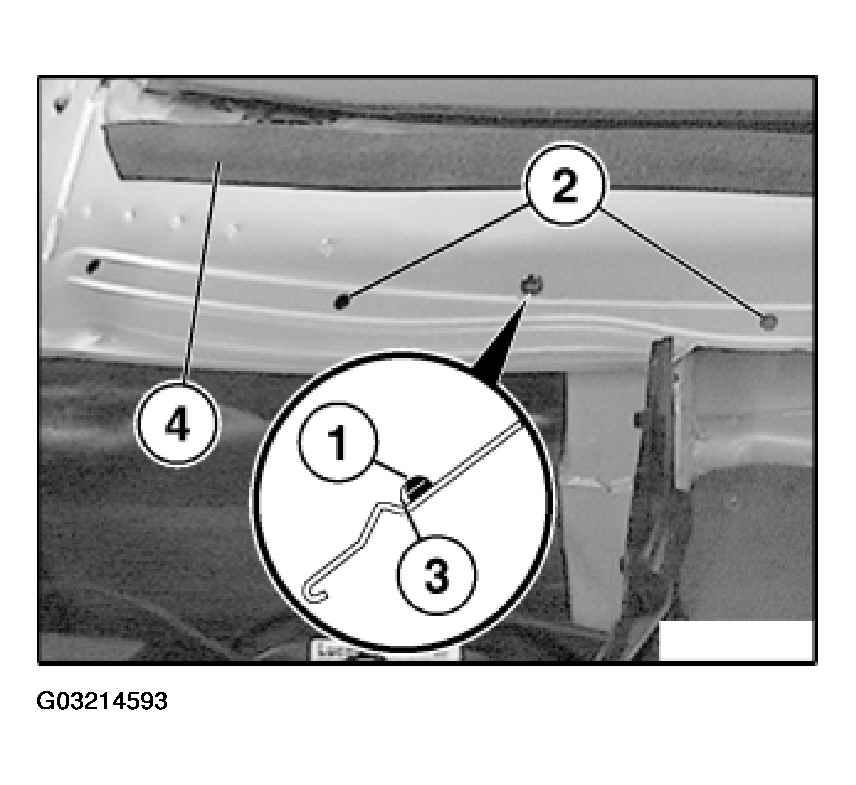

Fig 24: Attaching Semicircular Spacer Buffer To End Of Metal Radius
G03214592

In direction of travel, right:

Stick on semicircular spacer buffers (1) "center/outside" between bores (2).

NOTE: Attach semicircular spacer buffer (1) to end of metal radius (3).

(4) Expanding foam tape

Fig 25: Attaching Semicircular Spacer Buffer To End Of Metal Radius
G03214593

Attach semicircular spacer buffer (1) "centrally" at distance (A) on right side (left side in direction of travel) at same height as bore (2).

(A) 25 mm

(3) Expanding foam tape

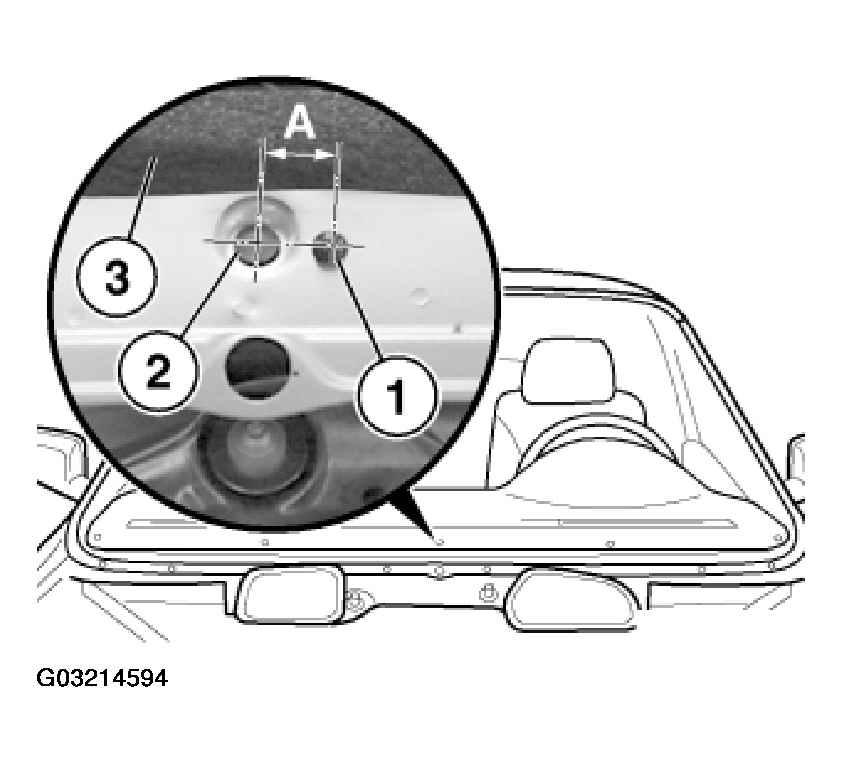

Fig 26: Identifying Distance For Attaching Semicircular Spacer Buffer
G03214594

Aligning windshield:

Turn windshield on assembly stand so that inner side faces downwards.

Suspend special tool 51 9 002 (suction lifter) from conventional workshop lifting equipment.

Switch on vacuum pump.

Firmly attach special tool 51 9 002 to outside of windshield in center in upper third.

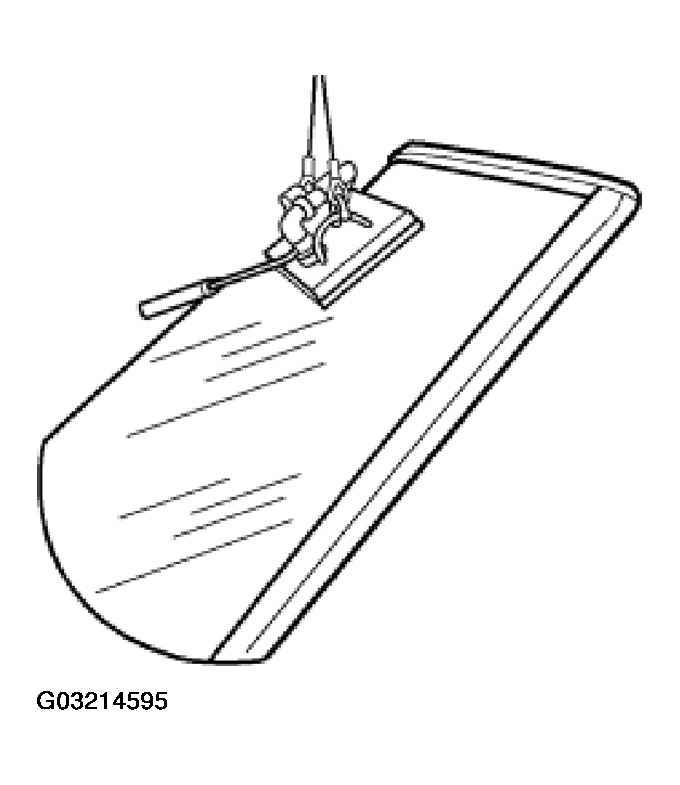

Fig 27: Attaching Special Tool 51 9 002 To Outside Of Windshield In Center
G03214595
CAUTION: Follow operating instructions for special tool 51 9 002.
The pointer of the vacuum gauge must be in the green area.
Do not shorten connecting hose between suction hoist and vacuum pump (minimum length 5 m).
Replacement with original hose only.
Fig 28: Identifying Position Of Vacuum Gauge Pointer
G03214596

Lift windshield with special tool 51 9 002 over body cutout.

First position windshield carefully at top and align sides evenly.

Lower windshield at bottom and in so doing press upwards on left and right with two special tools 51 3 010 until seal contacts roof uniformly.

Fig 29: Lifting Windshield With Special Tool 51 9 002
G03214597

Preload on top of windshield to prevent wind noise:

Fig 30: Identifying Preload On Top Of Windshield
G03214598

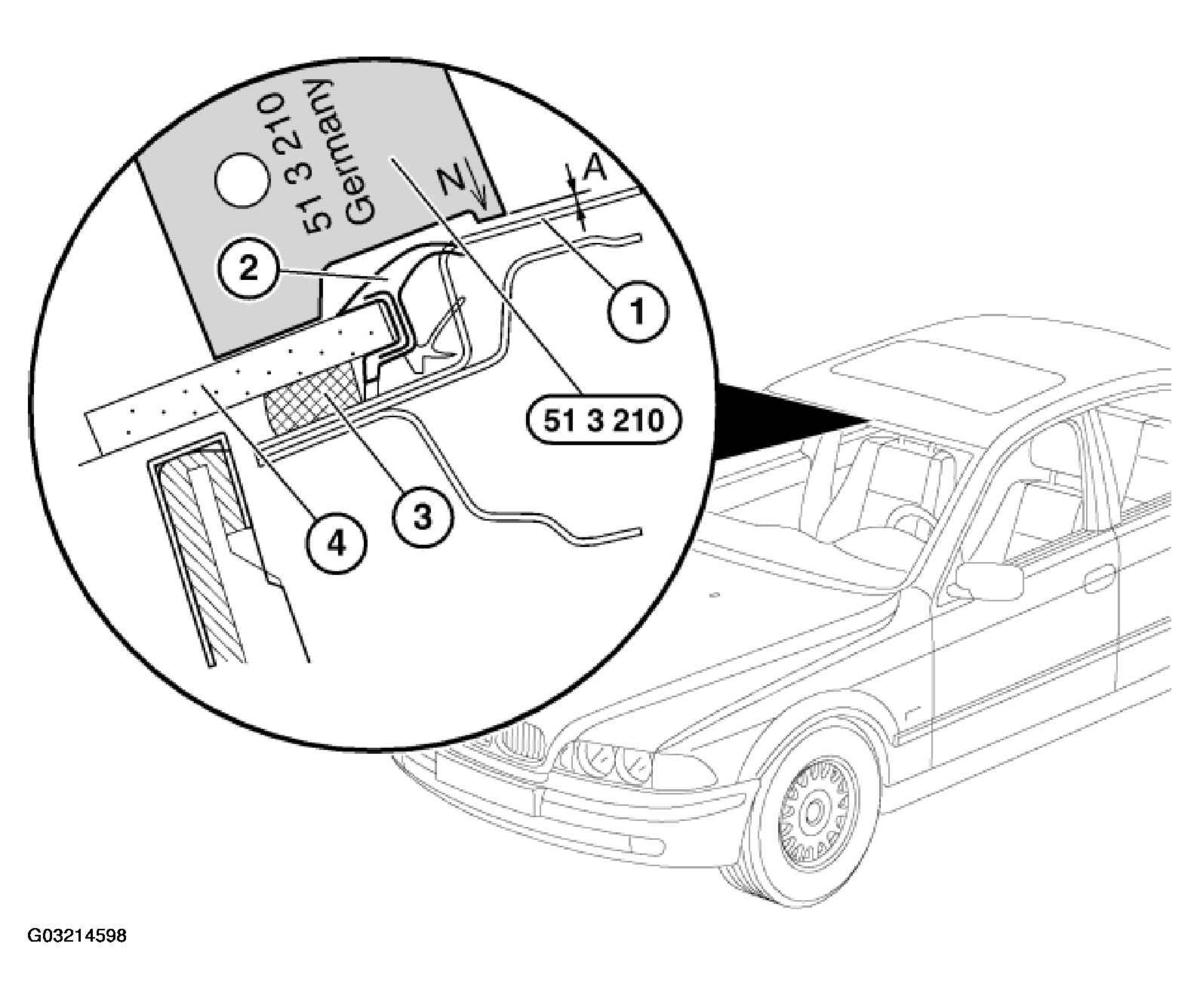

When installing the windshield (4), make sure that it lies lower with respect to roof outer skin (1). This is the only way of ensuring sufficient pretension between the sealing lip (2) and the roof (prevention of wind noise). Check installation position of windshield (4) in middle of vehicle with special tool 51 3 210. A clearance (A) is permitted.

(3) Later adhesive bead

Print on special tool = "S" (Anti-theft windows)

Adapt pretension and installation position if necessary with spacer buffers.

Repeat alignment of windshield if necessary several times.

Lift windshield with special tool 51 9 002 out of body cutout and place on assembly stand.

Switch off vacuum pump.

Turn windshield on assembly stand so that inner side faces upwards.

Fig 31: Lifting Windshield With Special Tool 51 9 002
G03214599

Cut nozzle to size.

Dimensions:

  1. 7+1 mm
  2. 11-2 mm
NOTE: For an even application of adhesive bead:
Use a cartridge gun (operated pneumatically or electrically, sourcing reference: BMW Parts Service).

Check expiration date of glue!

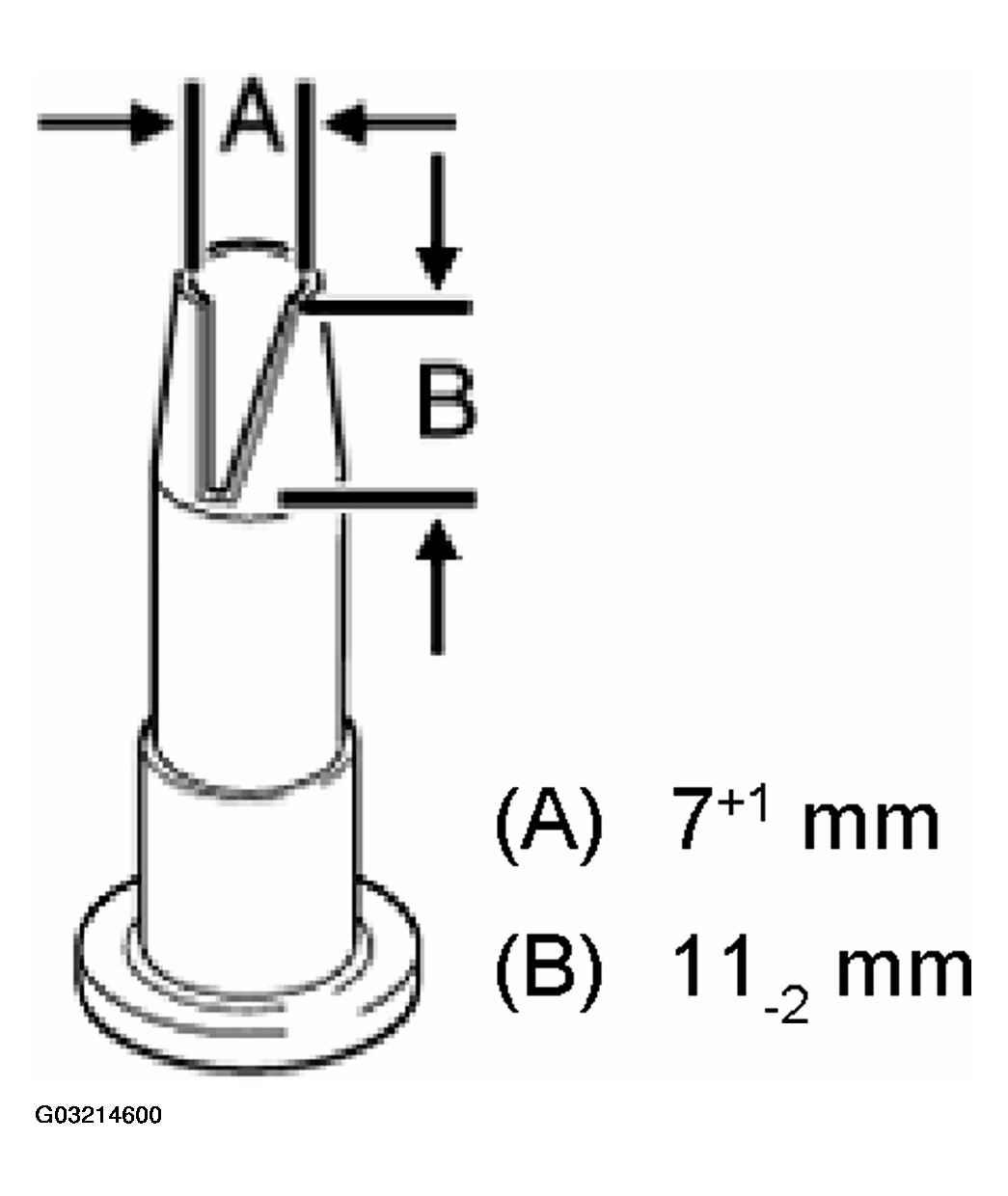

Fig 32: Identifying Dimension For Cutting Nozzle
G03214600

If necessary, apply a test bead before gluing.

Cartridge must be held perpendicularly to the windscreen glass.

NOTE: Approx. 1 1/4 adhesive cartridges are required for the windshield.

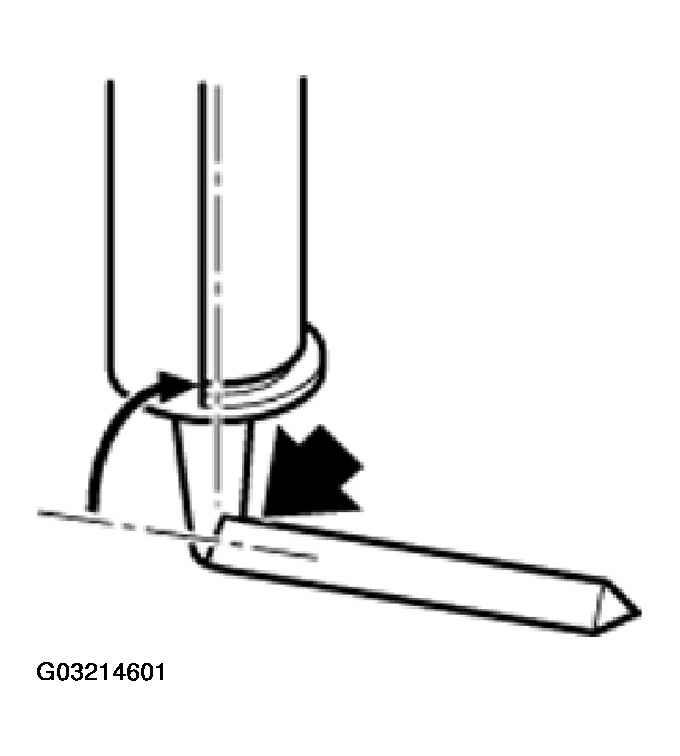

Fig 33: Identifying Position Of Cartridge To Windshield Glass
G03214601

Effect of differing adhesive quantities:

DIFFERING ADHESIVE QUANTITIES EFFECT

Insufficient adhesive: Excessive adhesive:
Windshield positioned too low in body cutout Windshield positioned too high in body cutout
Stresses may occur (risk of broken windshield) Wind noise may occur

Shape of glue bead:

  1. 7+1 mm
  2. 11-2 mm
CAUTION: Apply adhesive bead swiftly (and uniformly) and install windshield. Maximum skin formation time of adhesive is 10 minutes.
Maintain distance (X) to edge of windshield, refer to measurement (A) to (C) in next work step.

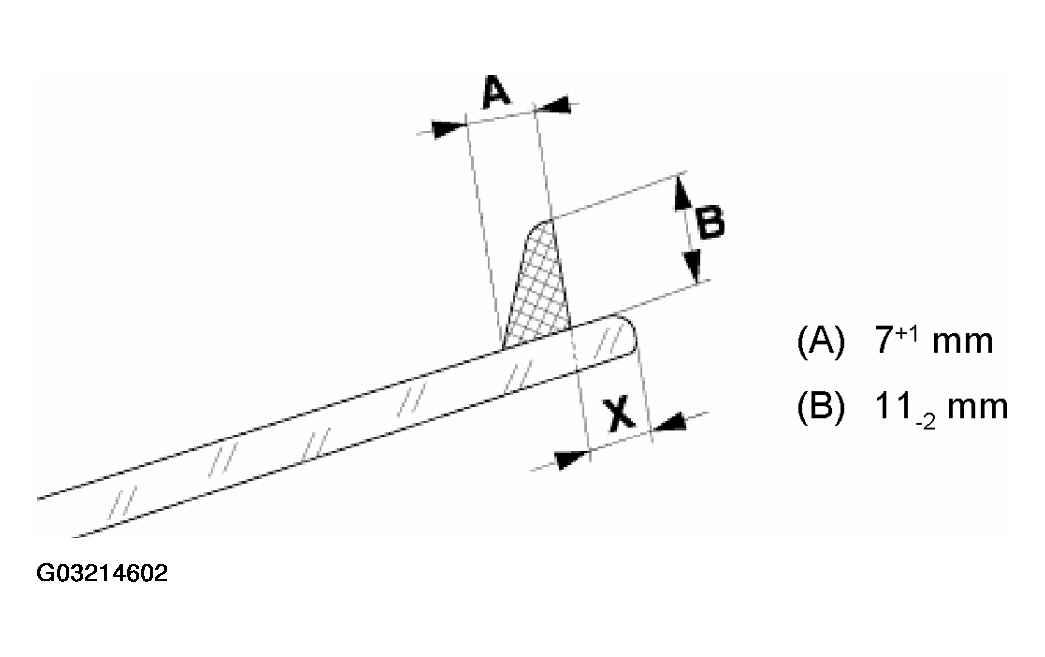

Fig 34: Identifying Glue Bead Shape
G03214602

Maintain the distance (A) of the upper glue bead to the gasket, (B) at side and (C) bottom along the windshield edge.

  1. 1 mm
  2. 2 mm
  3. 4 mm

Uniformly apply cement beads in corners of seal at top and at break in sealing lip.

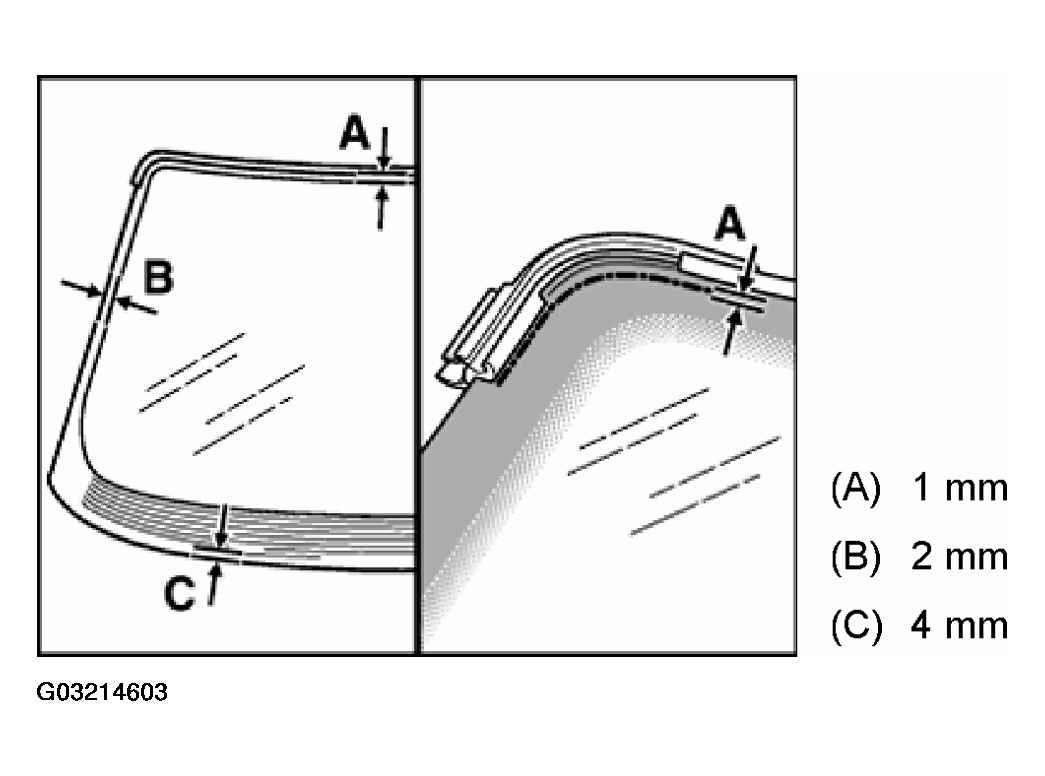

Fig 35: Identifying Distance Of Upper Glue Bead To Gasket
G03214603
NOTE: Adhesive area for plastic adhesive tapes (1) must be free of grease and dust.

Attach two yellow plastic adhesive tapes (1) (Tesa) to roof at a distance (A) from outer corners.

Length: 400 mm

Width: 50 mm

(A) 250 mm

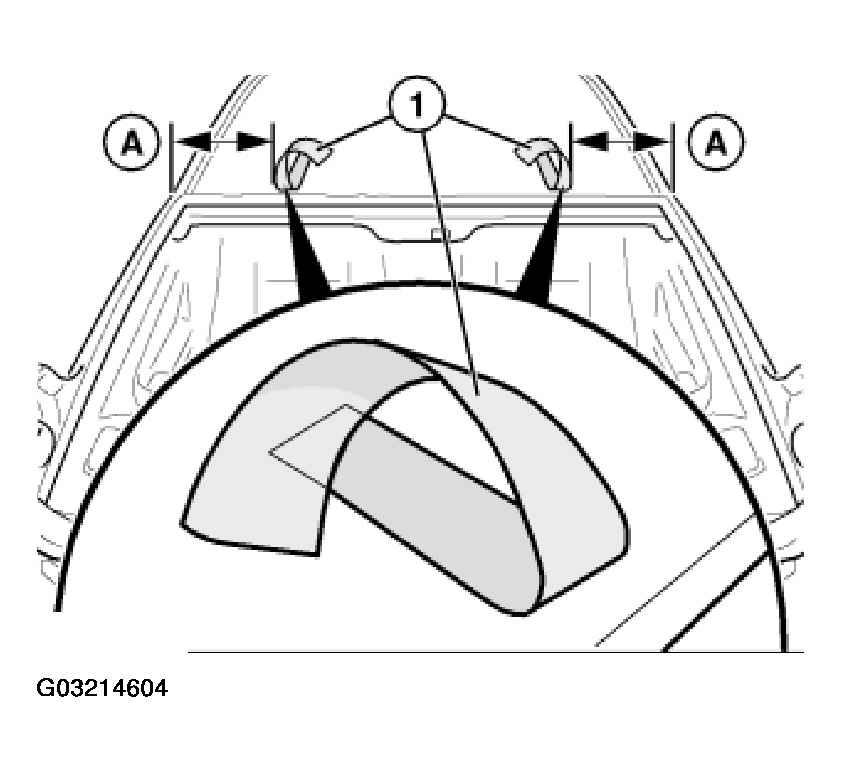

Fig 36: Identifying Adhesive Area Of Plastic Adhesive Tapes
G03214604

Switch on vacuum pump.

Firmly attach special tool 51 9 002 to outside of windshield in center in upper third.

Fig 37: Attaching Special Tool 51 9 002 To Outside Of Windshield In Center
G03214605
CAUTION: Follow operating instructions for special tool 51 9 002.
The pointer of the vacuum gauge must be in the green area.
Do not shorten connecting hose between suction hoist and vacuum pump (minimum length 5 m).
Replacement with original hose only.
Fig 38: Identifying Position Of Vacuum Gauge Pointer
G03214606

Lift windshield with special tool 51 9 002 over body cutout.

First position windshield carefully at top and align sides evenly.

Lower windshield at bottom and in so doing press upwards on left and right with two special tools 51 3 010 until seal contacts roof uniformly.

Fig 39: Lifting Windshield With Special Tool 51 9 002
G03214607

Secure windshield (1) in this position on top with yellow plastic adhesive tapes (2) (sourcing reference: BMW Parts Service) and press down all around.

Switch off vacuum pump.

Remove special tools 51 3 010 and 51 9 002.

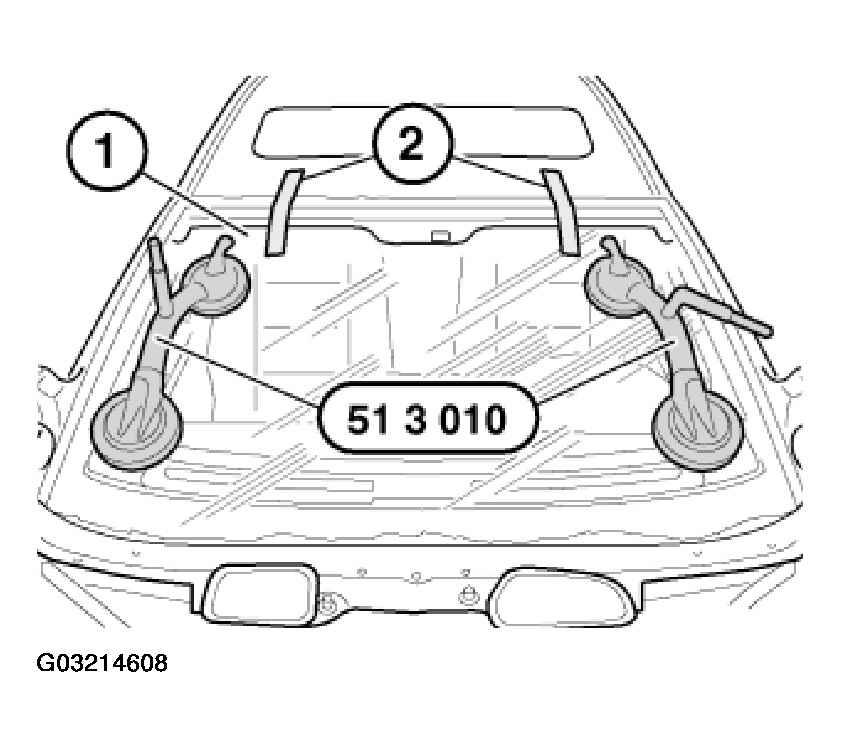

Fig 40: Securing Windshield Position On Top With Yellow Plastic Adhesive Tapes
G03214608

To avoid wind noises: The windshield is pretensioned at the top.

Pretension is created with special tool 51 3 130 (three HR foam blocks).

1 piece (1): 40 x 70 x 70 mm (W x H x D)

2 pieces (2): 40 x 30 x 70 mm (W x H x D) Position of HR foam blocks:

HR foam blocks (1), middle, at distance (A) from top.

HR foam blocks (2), distance (A) from top, distance (B) at side.

(A) 100 mm

and

(B)

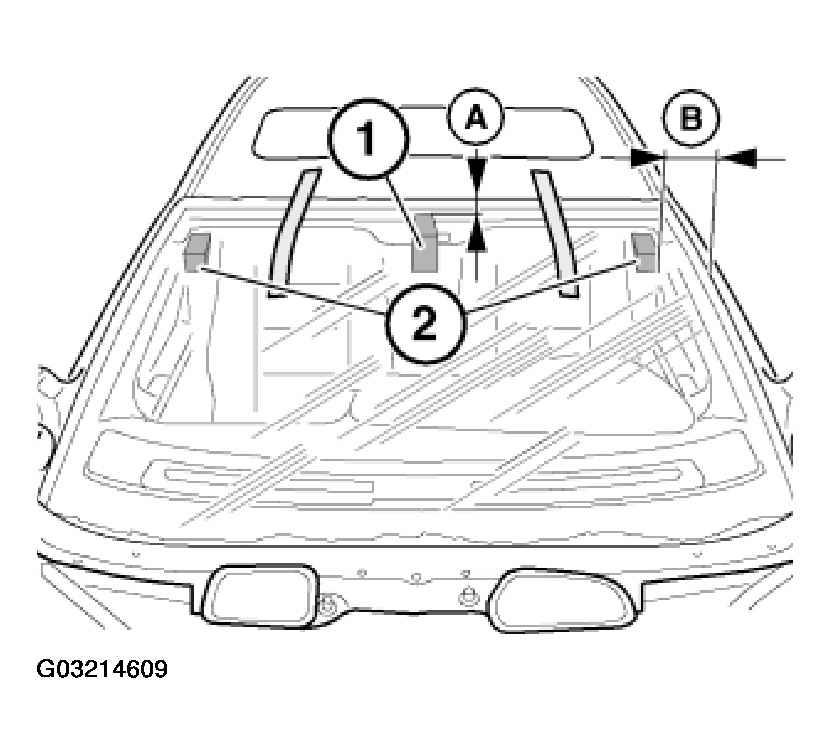

Fig 41: Identifying Dimensions For Positioning HR Foam Blocks
G03214609

Open both front doors.

Secure HR foam blocks (2) with yellow plastic adhesive tape (1) (Tesa).

Pretension windshield with yellow plastic adhesive tape (1) until it is correctly positioned at top.

NOTE: Do not stick yellow plastic adhesive tape (1) above A-pillar finisher (3) or ITS head airbag.

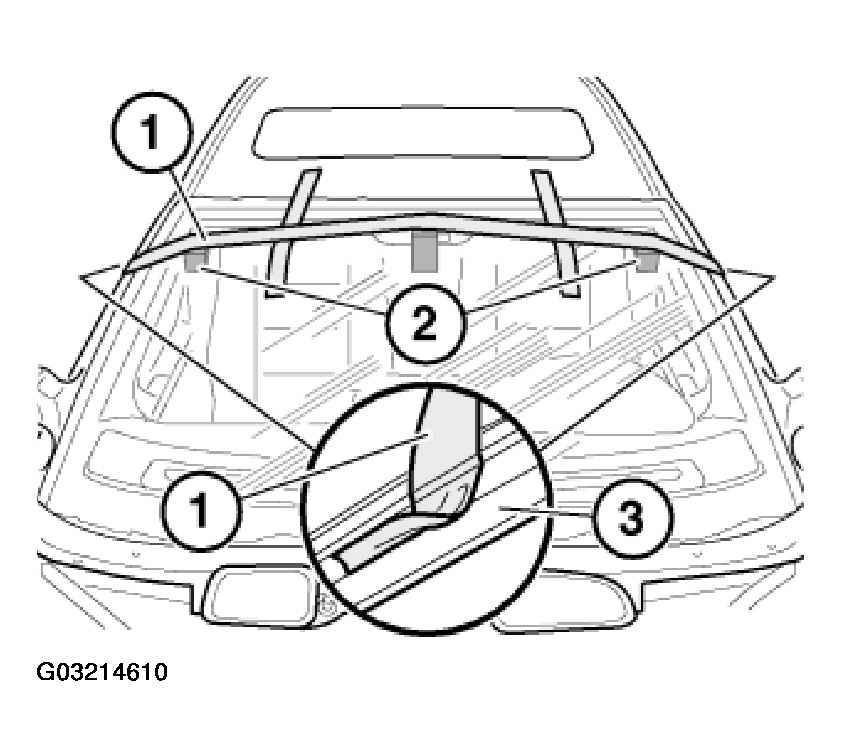

Fig 42: Securing HR Foam Blocks With Yellow Plastic Adhesive Tape (Tesa)
G03214610
CAUTION: Hardened glue can only be removed by machine.
Remove contamination caused by residual adhesive immediately with Sika remover 208 (sourcing reference: BMW Parts Service). Do not press out windscreen glass again for this purpose.

Assemble car.

After hardening time, remove support.

NOTE: Leaks are detected by spraying water under the sealing lips or by using an ultrasonic leak tester and can then be sealed with an appropriate nozzle.
