51 43 201 Removing and installing or replacing trim for front left or right roof pillar

WARNING: Version with head airbag (ITS):
Follow safety instructions for working on cars with airbag systems,
refer to 51 00... SAFETY INSTRUCTIONS FOR WORKING ON CARS WITH AIRBAG SYSTEMS

CAUTION: Do not use sharp-edged tools to remove trim (risk of damage to head air bag).

ITS Inflatable Tubular Structure (head airbag)

Version with head airbag (ITS):

Remove edge protection from A-pillar finisher.

Lift out clip (1).

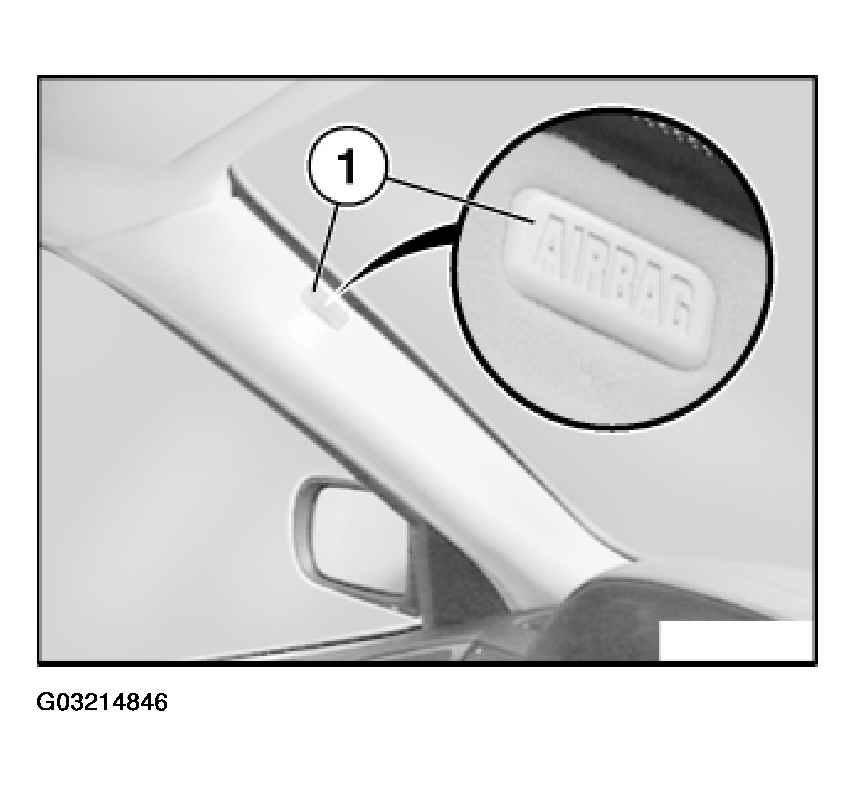

Fig 1: Removing Edge Protection From A-Pillar Finisher

Version with head airbag (ITS):

Unscrew bolt (1).

Installation:

Ensure that clip is perfectly seated (2).

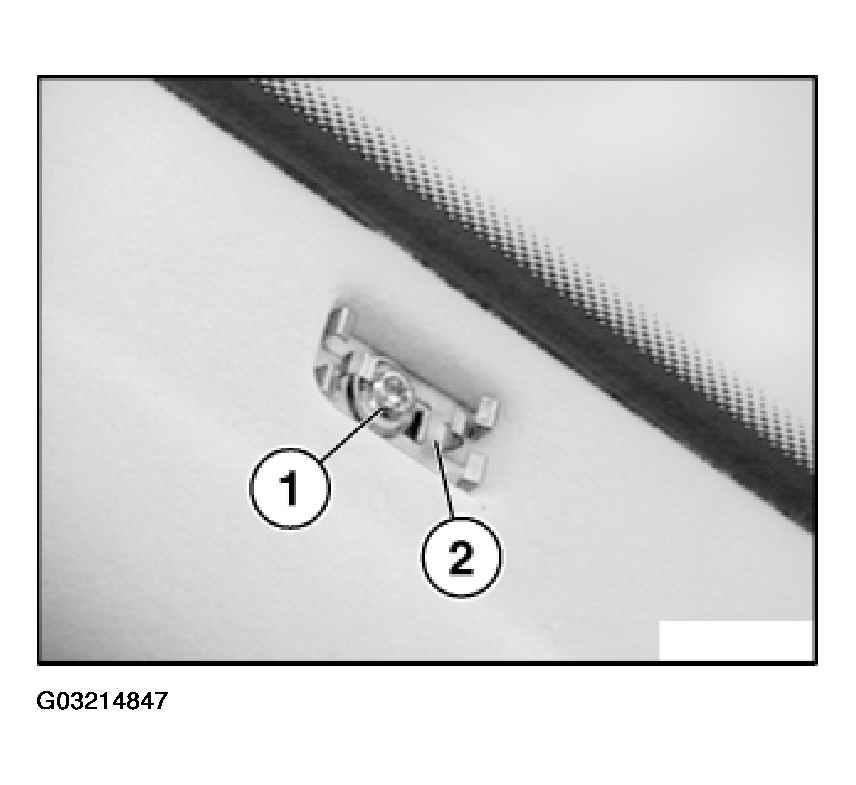

Fig 2: Identifying Correct Seating Of Clip

Remove A-pillar finisher by pulling inwards and upwards.

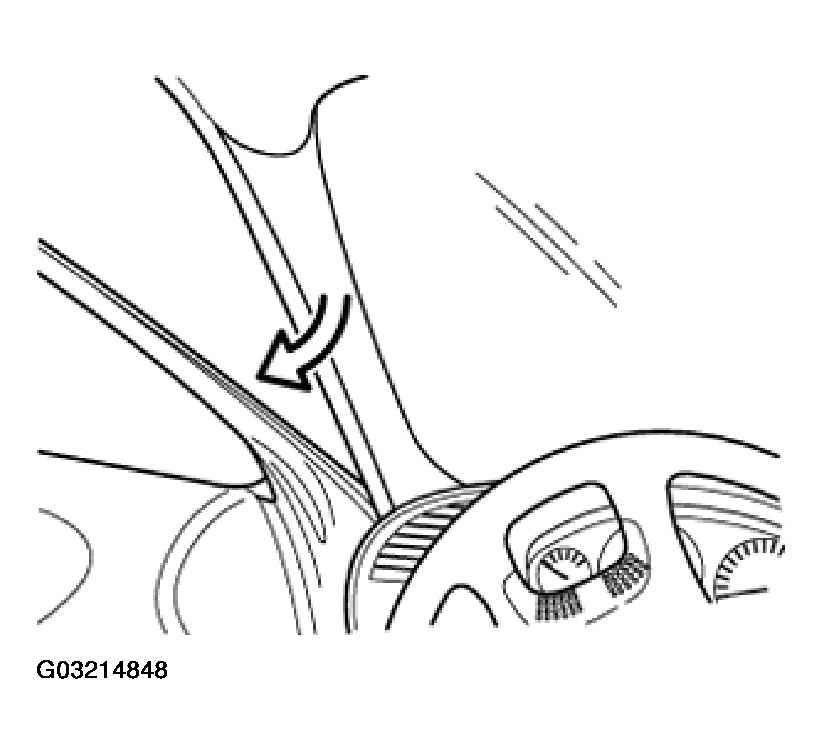

Fig 3: Removing A-Pillar Finisher By Pulling Inwards & Upwards

Installation:

If necessary, replace damaged clips and grommets.

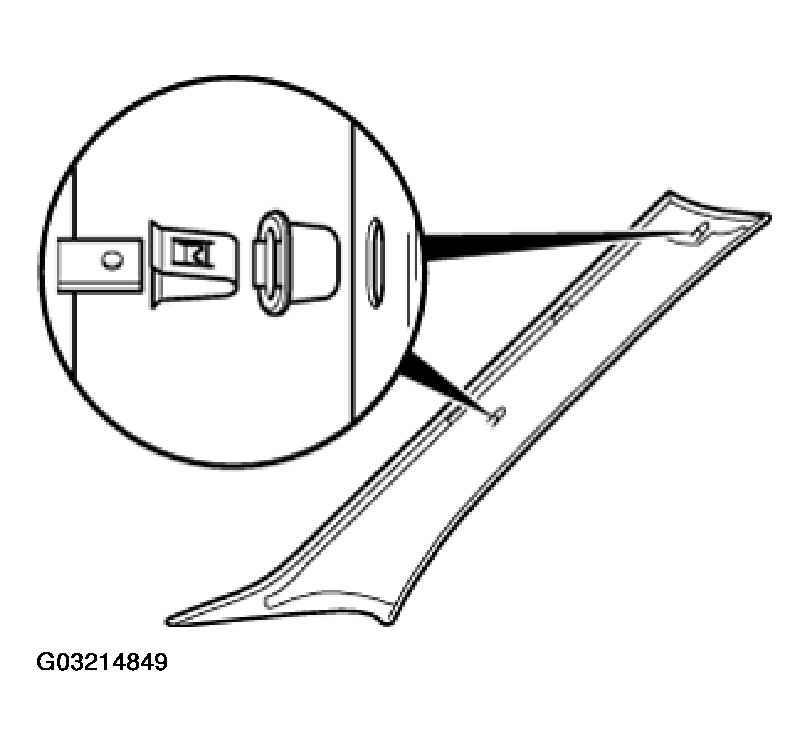

Fig 4: Identifying Clips & Grommets

Version with head airbag (ITS):

Installation:

Cloth (1) on grommet (2) must be fitted to head air bag (3) otherwise the clip (4) can damage the head air bag.

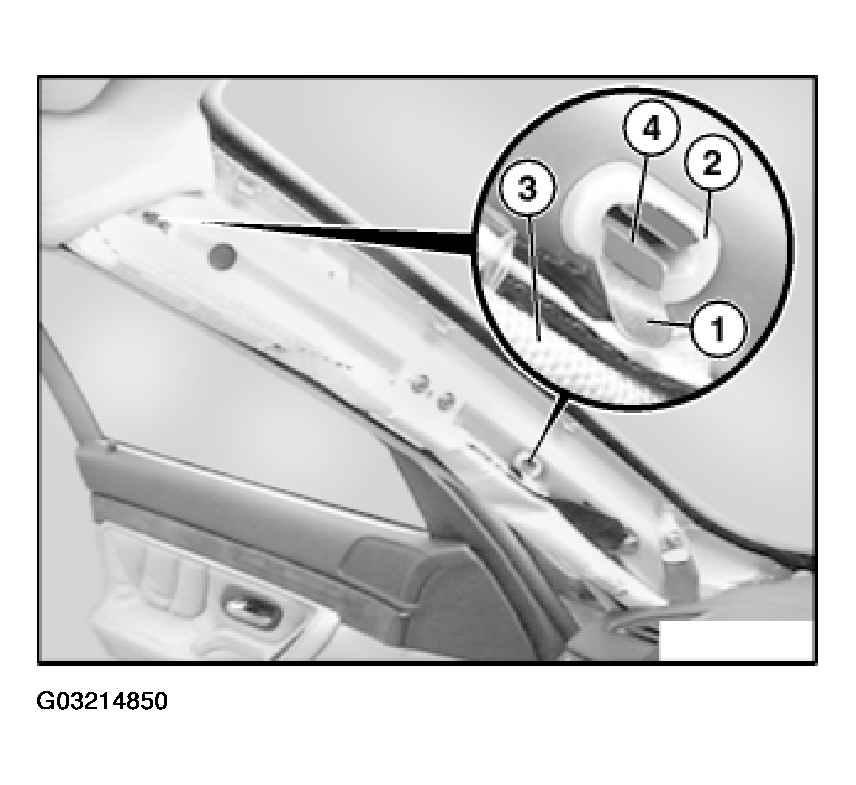

Fig 5: Installing Grommet Cloth To Head Air Bag
