34 21 320 Removing and installing or replacing both rear brake disks

CAUTION: If the thickness of the brake disks drops below the minimum level (MIN TH), the disks must be replaced. Always replace brake disks in pairs.
If the brake disks are replaced, you must also fit new brake linings.

Remove wheels.

If necessary, remove and clean brake linings.

After completing work, adjust handbrake, refer to 34 41 006 ADJUSTING PARKING BRAKE .

Unscrew bolts (1). Remove and suspend brake caliper from vehicle.

NOTE: Brake hose remains connected.

Installation:

Tightening torque 34 21 3AZ.

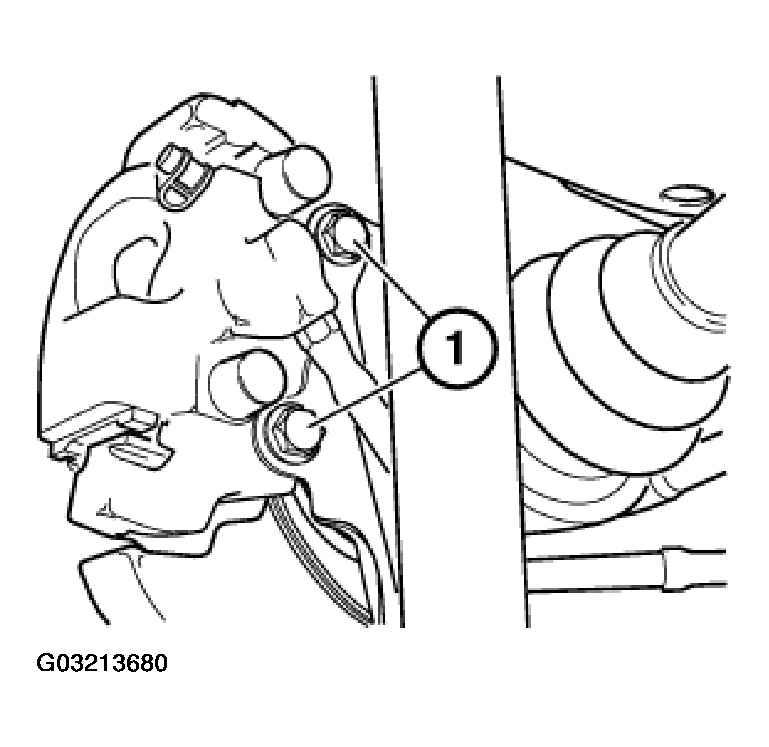

Fig 1: Identifying Bolts Of Suspend Brake Caliper

Unscrew bolts and take off brake disk.

Installation:

Tightening torque 34 21 1AZ.

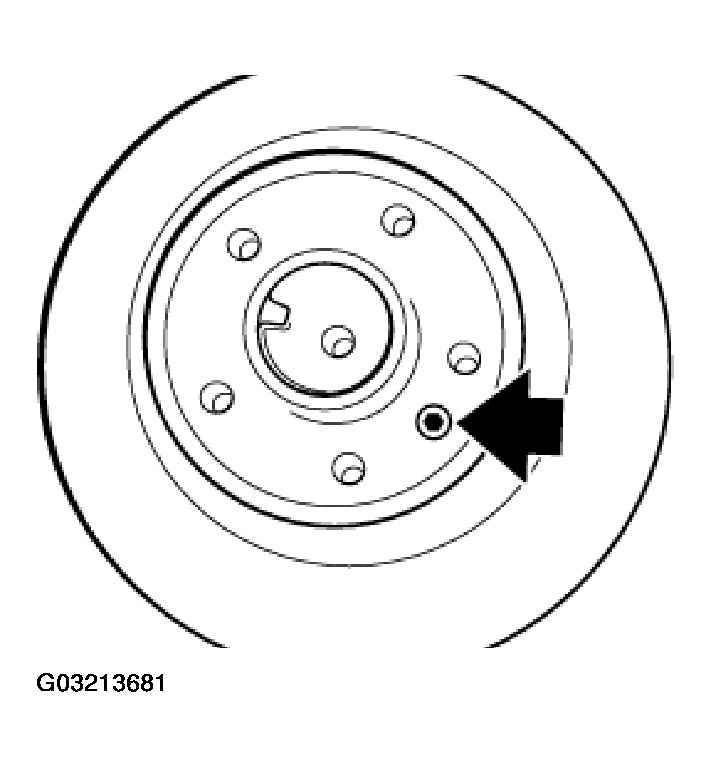

Fig 2: Identifying Bolts Of Brake Disk
