750i/iL and Z8: Right

Installation:

  1. Ensure proper installation position of guide sleeves.
    1. Guide sleeve with Teflon socket (white insert) is located on disk inlet (bottom)
    2. Guide sleeve in standard version (black) is located on disk outlet (top)

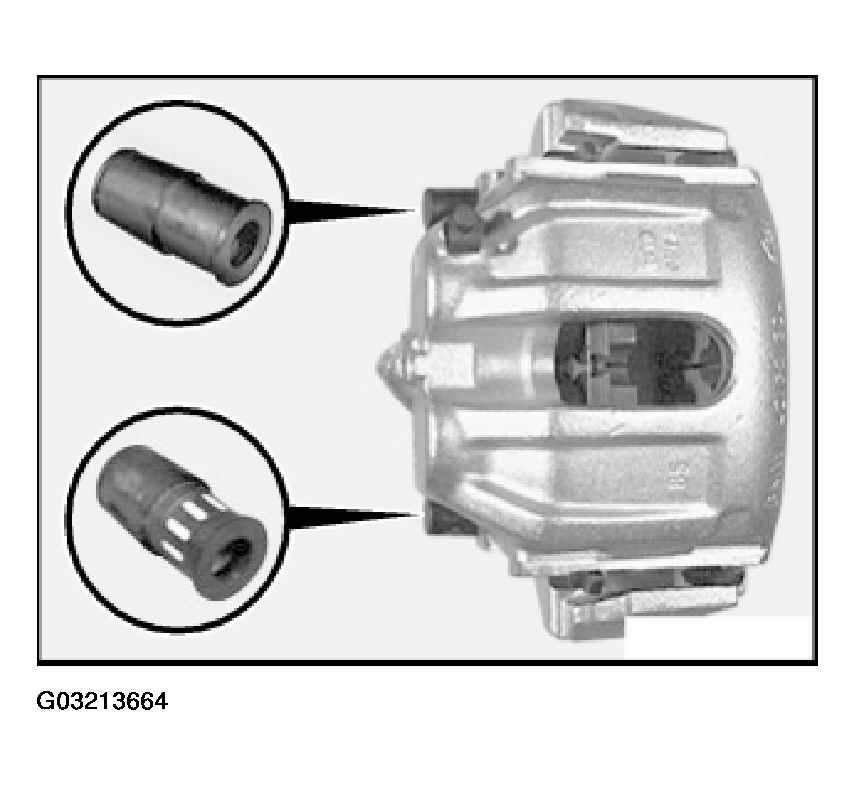

    Fig 1: Identifying Guide Sleeve Located On Disk Inlet (Bottom & Top) - Right
    G03213664
