34 11... Configuration of floating caliper (front)

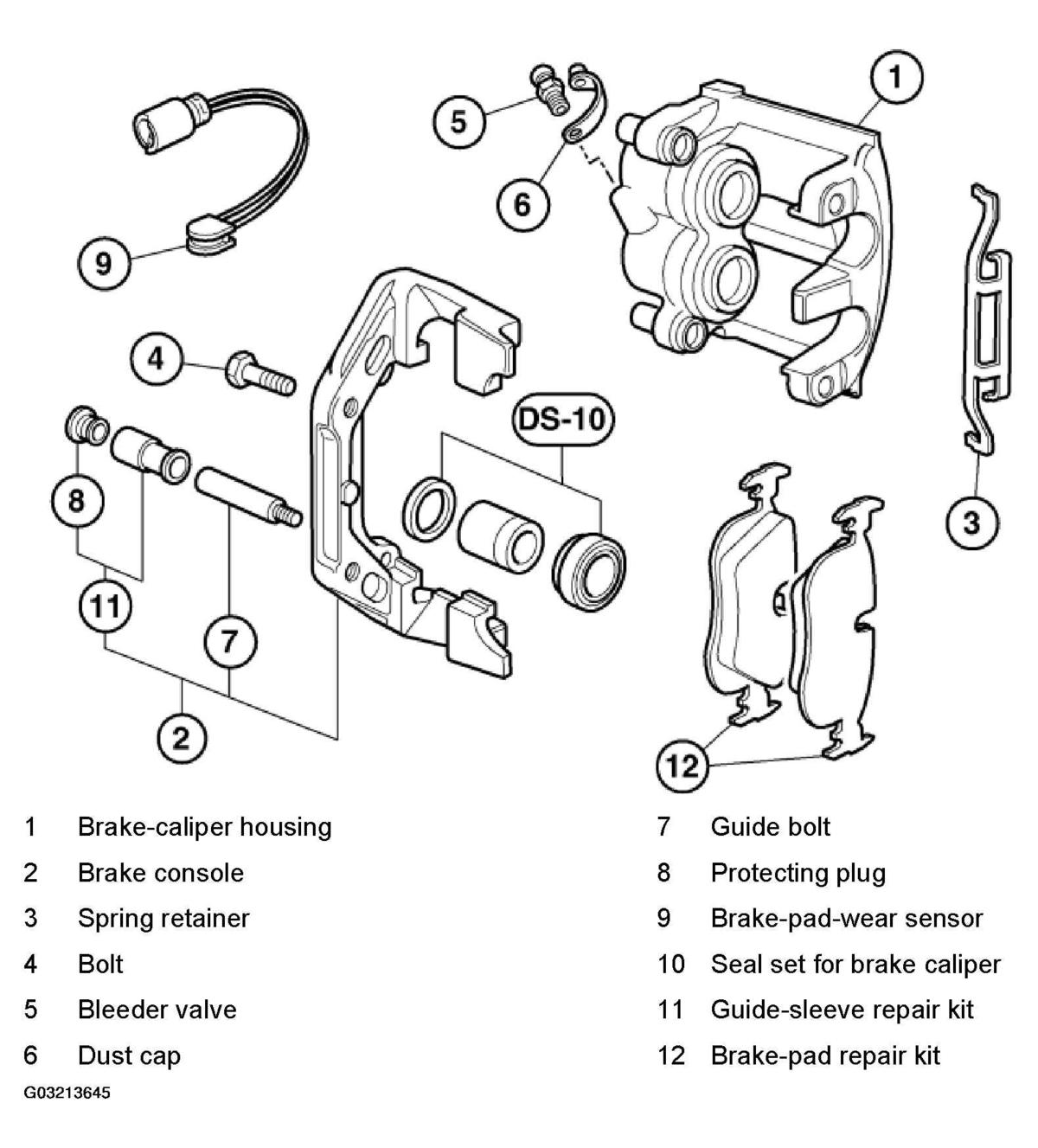

Fig 1: Identifying Components Of Configuration Of Floating Caliper (Front)

G03213645
