34 52 525 Removing and installing / replacing front ABS impulse sensor

Open connector housing (1), pull plug connector (2) out of bracket and disconnect.

Pull cable with rubber grommet out of bracket on spring strut,

Installation:

1. Ensure proper locking of plug connector and proper seating of rubber grommets.

Fig 1: Opening Connector Housing & Pulling Plug Connector Out Of Bracket

Unfasten socket head cap screw (1) and pull ABS impulse sensor out of hole.

Installation:

1. Clean hole for impulse sensor and grease with lubricating grease Staburags NBU 12/K.

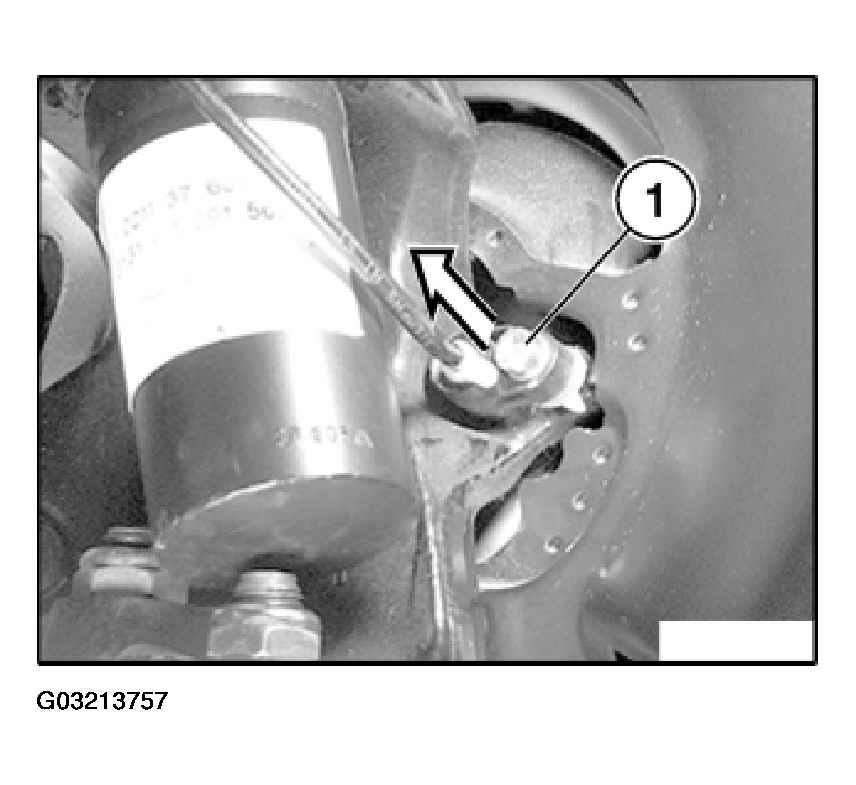

Fig 2: Unfastening Socket Head Cap Screw & Pulling ABS Impulse Sensor Out Of Hole
