34 52 510 Replacing control unit (for ABS)

CAUTION: Before removing the control unit, switch off ignition.

Remove lower glove box trim. Unscrew bolts.

Pull control unit down slightly to enable plug connection to be unlocked.

Remove control unit.

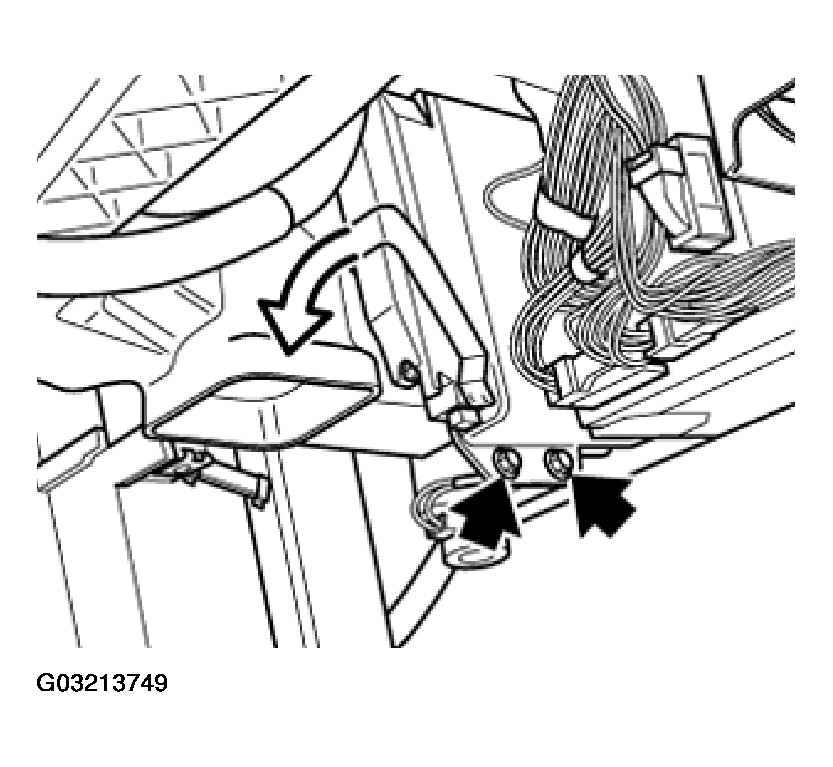

Fig 1: Removing Control Unit (For ABS)
