34 00 048 Bleeding brake system with ABS/ASC+T: Notes
NOTE:
Observe following filling and bleeding specification when exchanging or repairing:
Tandem-brake master cylinder Hydraulic unit ABS/ASC+T
Components installed between the assemblies.
For other operations on the brake system (e.g. exchanging brake calipers), observe specification "Bleeding ABS brake system", refer to 34 00 047 BLEEDING BRAKE SYSTEM WITH ABS .
Tandem-brake master cylinder Hydraulic unit ABS/ASC+T
Components installed between the assemblies.
For other operations on the brake system (e.g. exchanging brake calipers), observe specification "Bleeding ABS brake system", refer to 34 00 047 BLEEDING BRAKE SYSTEM WITH ABS .
Connect BMW Diagnosis and Information System.
Call up service function Bleeding ABS/ASC hydraulics

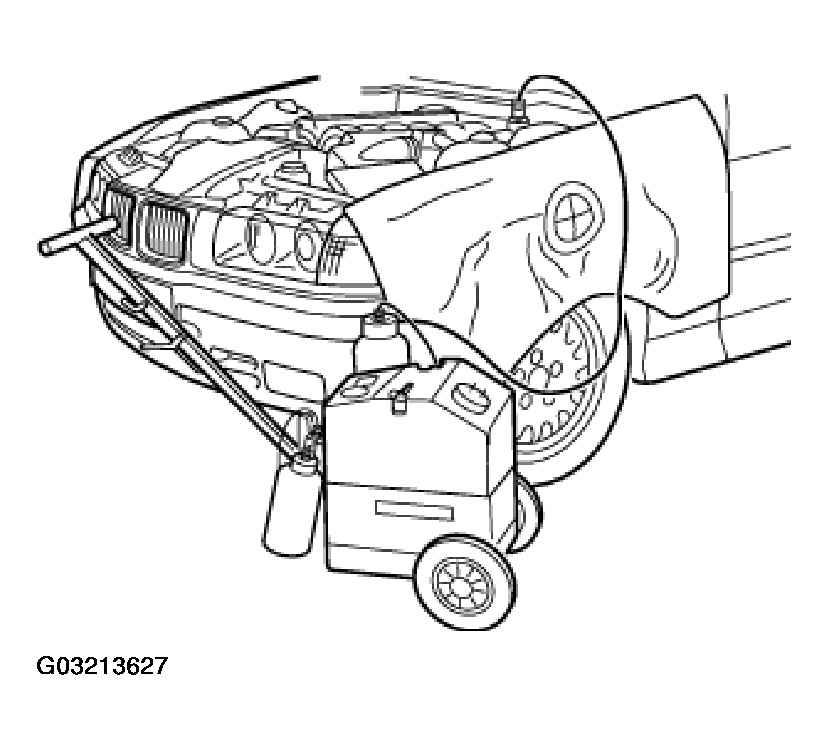

Connect bleeder unit to expansion tank and switch on.
NOTE:
Check relevant operating instructions for each device.
Charging pressure must not exceed 2 bar.
