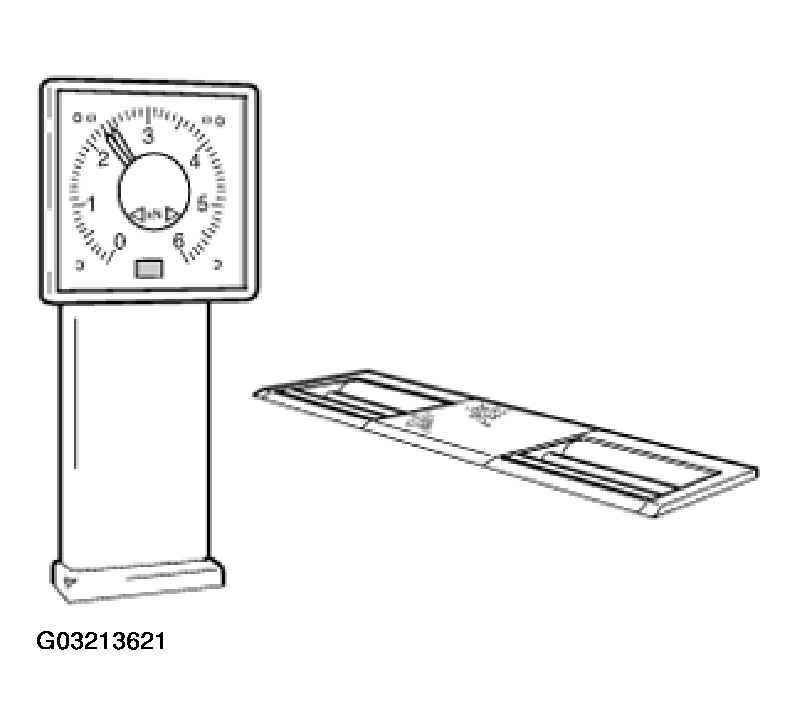

34 00 009 Checking brakes on test stand
NOTE:
- Check tires for damage
- Check tire treads
- Check tire pressures
In the case of vehicles with ASC+T or DSC, the system must be deactivated with the switch. The ASC+T / DSC indicator lamp in the instrument cluster must light up!
The brakes must be at normal operating temperature. For this purpose, gently warm up the brake disks/drums while dry by braking the vehicle several times.
CAUTION:
You should only use brake dynamometers whose test speed is < 5 km/h.
You must follow without fail the guidelines contained in the operating instructions of the relevant test stand manufacturer.
Failure to do so may result in damage to the vehicle and the system and also personal injury.
The maximum test duration for four-wheel drive vehicles is 3 minutes per axle! If it has to be repeated, it will be necessary in the meantime to the drive the vehicle a distance of at least 1 km in order to achieve sufficient lubrication of the transfer case.
You must follow without fail the guidelines contained in the operating instructions of the relevant test stand manufacturer.
Failure to do so may result in damage to the vehicle and the system and also personal injury.
The maximum test duration for four-wheel drive vehicles is 3 minutes per axle! If it has to be repeated, it will be necessary in the meantime to the drive the vehicle a distance of at least 1 km in order to achieve sufficient lubrication of the transfer case.
