34 32 881 Replacing front left or right brake hoses

CAUTION: After assembly, bleed brake, refer to 34 00 047 BLEEDING BRAKE SYSTEM WITH ABS .

Apply pedal prop and depress brake pedal slightly. This prevents brake fluid from flowing out of expansion tank and into brake system when brake lines are opened.

Fig 1: Applying Pedal Prop & Depressing Brake Pedal

Draw brake fluid out of expansion tank with a syringe Disconnect brake hose from pipe.

NOTE: Syringe must only be used for brake fluid.

CAUTION: Ensure that square head screw on brake hose does not rotate in metal bracket. If necessary, brace the brake hose with mold grips.

Unfasten brake hose from brake caliper.

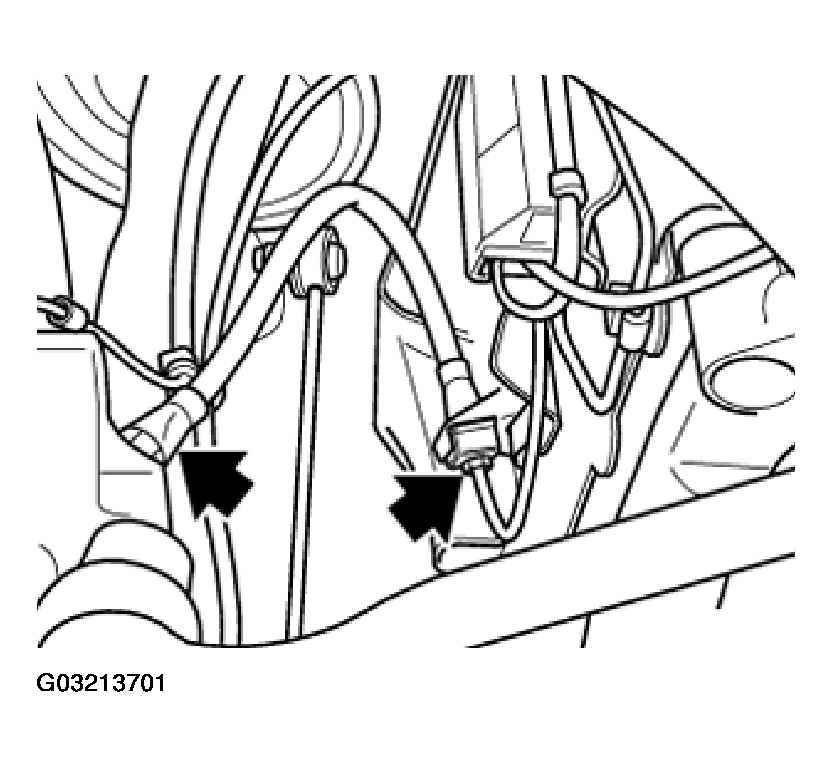

Fig 2: Removing Brake Hose From Brake Caliper

Installation:

First tighten brake hose on brake caliper.

Move wheels into straight-ahead position.

Insert brake hose in bracket and screw onto brake pipe.

Tightening torque. Refer to BRAKES - TIGHTENING TORQUES .

CAUTION: Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.

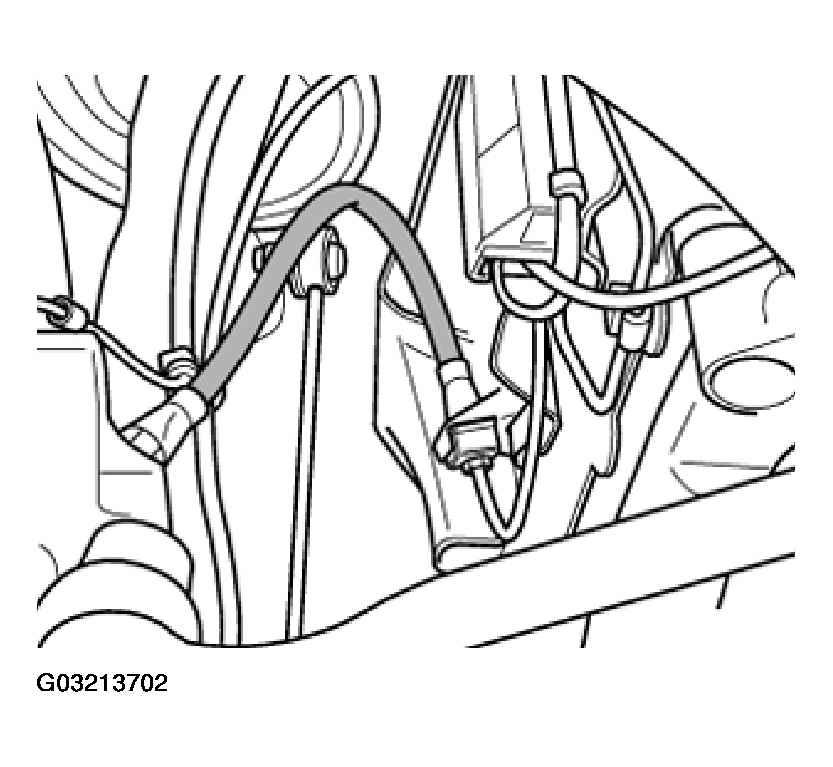

Fig 3: Installing Brake Hose
