34 32 861 Replacing all brake pipes
Special tools required:
- 34 5 100
NOTE:
Brake pipes are only supplied straight, in correct length and fitted with connecting nipples.
CAUTION:
Follow general instructions:
Refer to 34 00... GENERAL DATA
After completing work, bleed brake system:
Vehicle with ABS, refer to 34 00 047 BLEEDING BRAKE SYSTEM WITH ABS
Vehicle with ABS/ASC+T, DSC1, DSC2, refer to 34 00 048 BLEEDING BRAKE SYSTEM WITH ABS/ASC+T
Vehicle with DSC3, refer to 34 00 050 BLEEDING BRAKE SYSTEM WITH DSC3 750I/IL FROM 09/96 TO 09/98 .
Refer to 34 00... GENERAL DATA
After completing work, bleed brake system:
Vehicle with ABS, refer to 34 00 047 BLEEDING BRAKE SYSTEM WITH ABS
Vehicle with ABS/ASC+T, DSC1, DSC2, refer to 34 00 048 BLEEDING BRAKE SYSTEM WITH ABS/ASC+T
Vehicle with DSC3, refer to 34 00 050 BLEEDING BRAKE SYSTEM WITH DSC3 750I/IL FROM 09/96 TO 09/98 .

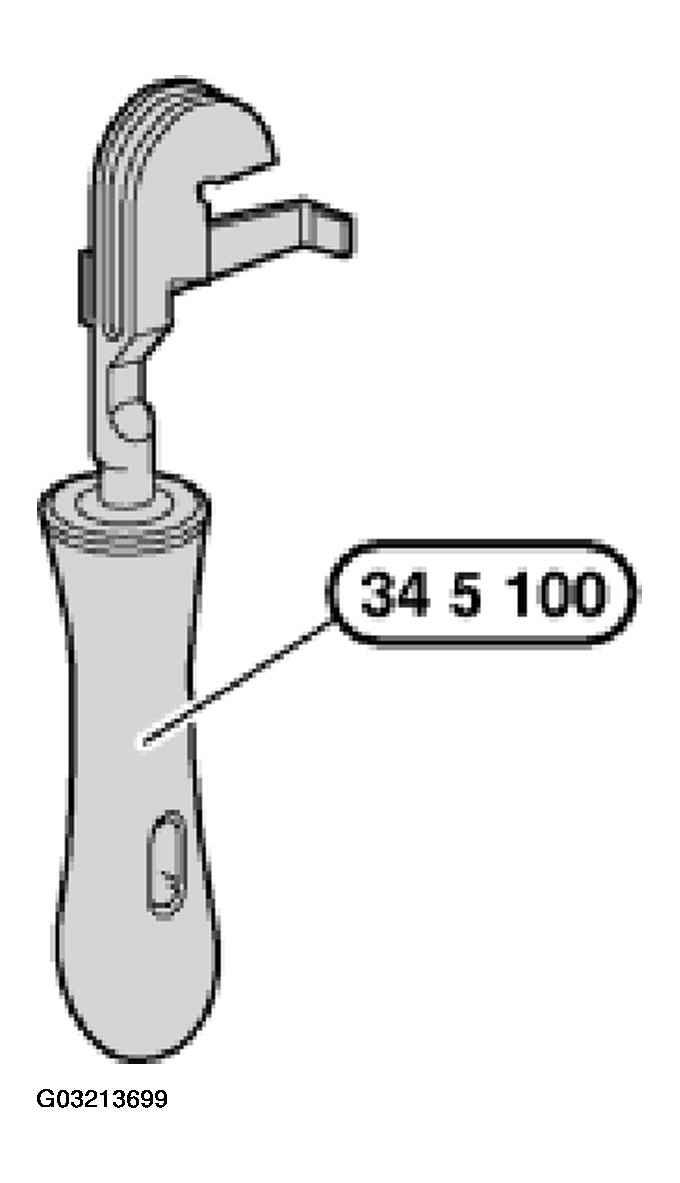

New brake pipes must be bent as required using bending tool 34 5 100.
Removed brake pipes can be used as templates for bending.
CAUTION:
- Protective coat on brake pipes must not be damaged while bending.
- Brake pipes must not be bent back and forth.
- Watch distances to rigid and movable vehicle parts. Brake lines may not make contact or rub.
- Tighten brake-pipe couplings with torque wrench.
Tightening torque. Refer to BRAKES - TIGHTENING TORQUES .
