34 33 071 Replacing vacuum hose for brake booster

IMPORTANT: Note "General Information", Refer to 34 00... GENERAL DATA
Before starting work, actuate the brake pedal several times to reduce the vacuum in the brake booster, making it easier to pull off the vacuum hose.

Open hose clips (1 - 2) and pull off vacuum hose.

Installation:

Replace hose clips.

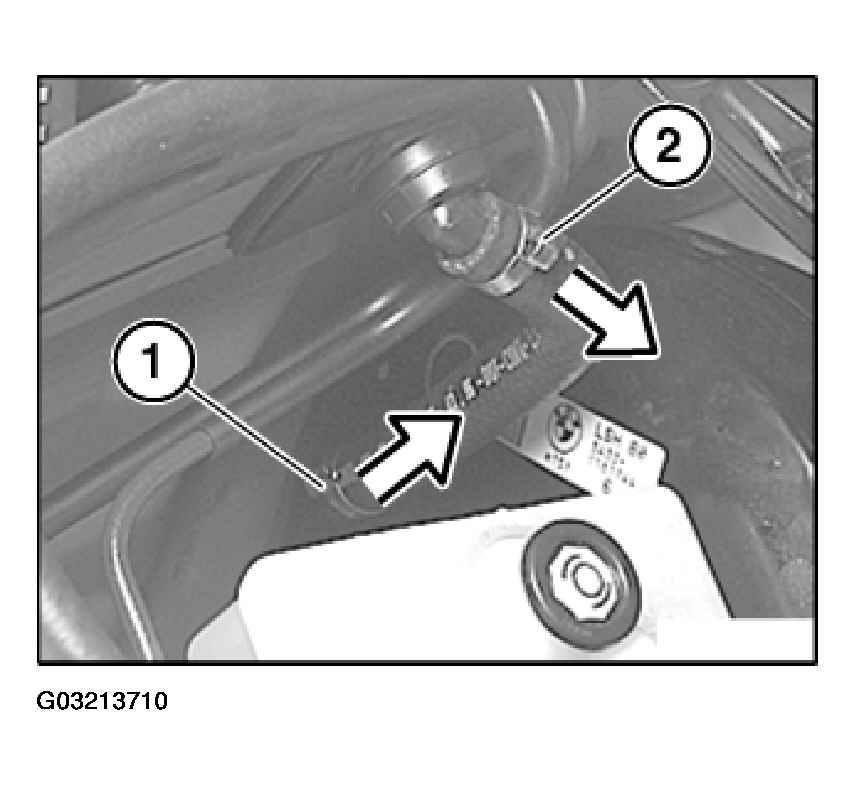

Fig 1: Opening Hose Clips & Pulling Off Vacuum Hose
