Timing Chain TENSIONER: Installation

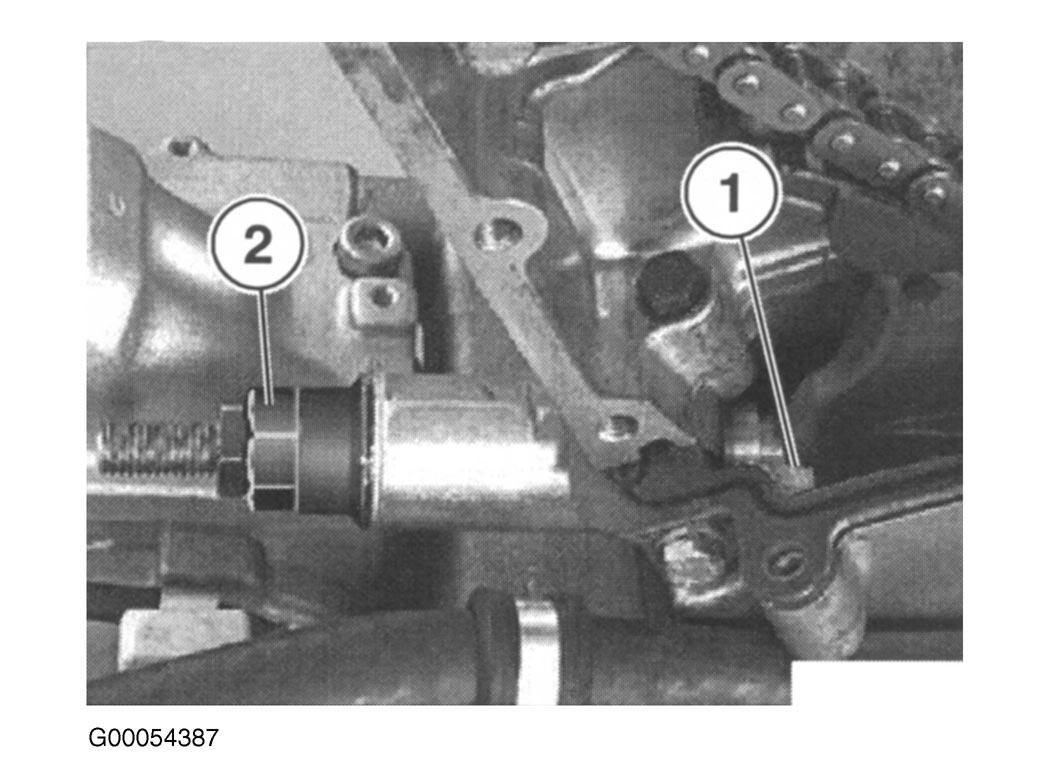

Install chain tensioning piston with guide lugs in tensioning rail, insert compression spring and plug and tighten. See TORQUE SPECIFICATIONS . See Figure .
