Adjusting Camshaft Timing

Before carrying out adjustment, camshaft timing must be checked. See CHECKING TIMING .

NOTE: Timing case cover must be removed when tightening bolt on sprocket wheel. Timing case cover and timing case share a gasket in lower section. This must be replaced before reassembly. Timing case must be removed before gasket can be replaced.

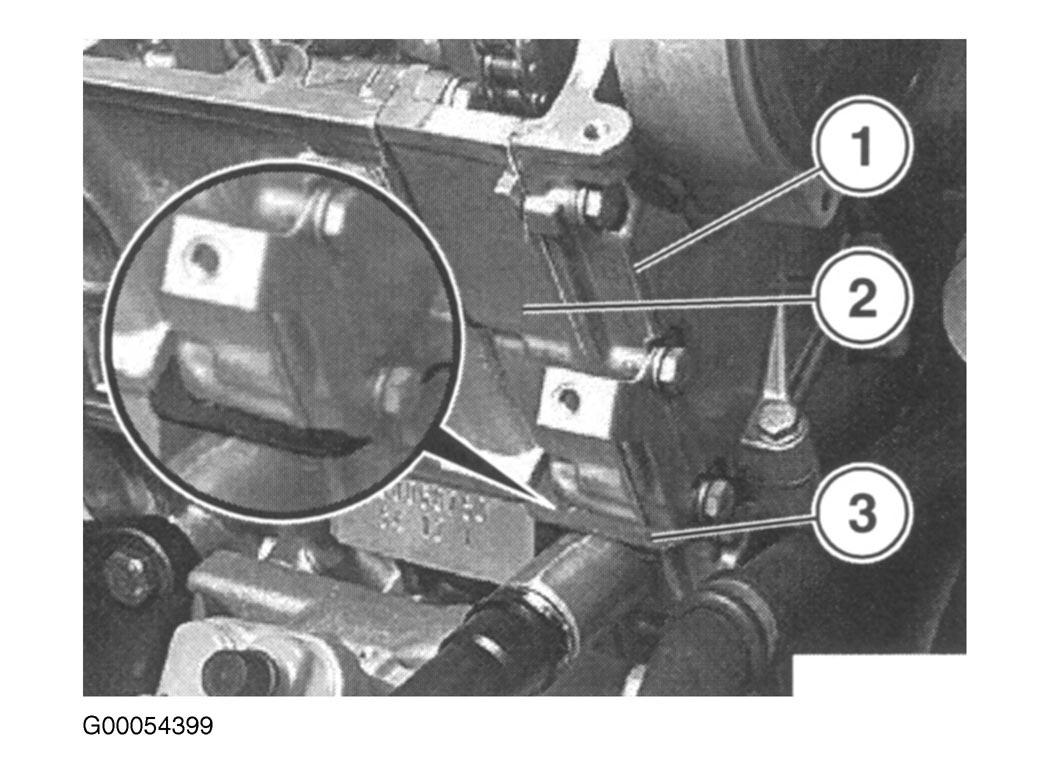

Fig 1: Identifying Timing Case Components

Courtesy of BMW OF NORTH AMERICA, INC.

For removal and installation of timing case, replacement of gasket and adjustment of timing, see TIMING CHAIN & UPPER TIMING CASE under REMOVAL & INSTALLATION.
