63 12 001 Removing and installing/replacing complete left-hand headlight assembly

1. Remove turn signal, refer to 63 13 150 REMOVING AND INSTALLING/REPLACING COMPLETE FRONT LEFT OR RIGHT TURN SIGNAL LAMP

Lift up unlocking unit and remove connector.

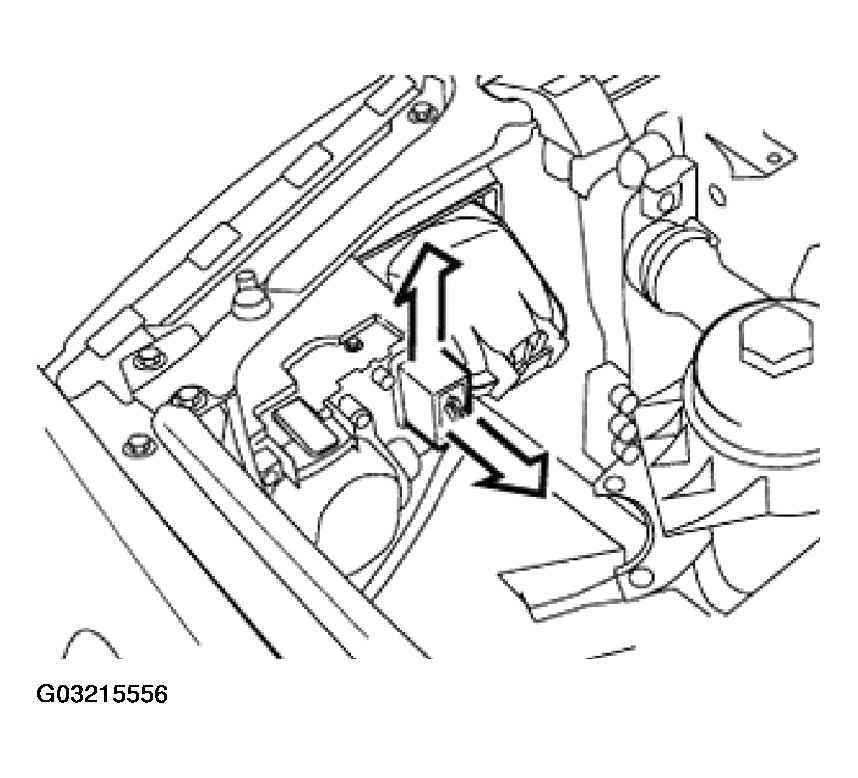

Fig 1: Lifting Up Unlocking Unit And Removing Connector

Lift up detent hook, slide grill towards central grill and lift out.

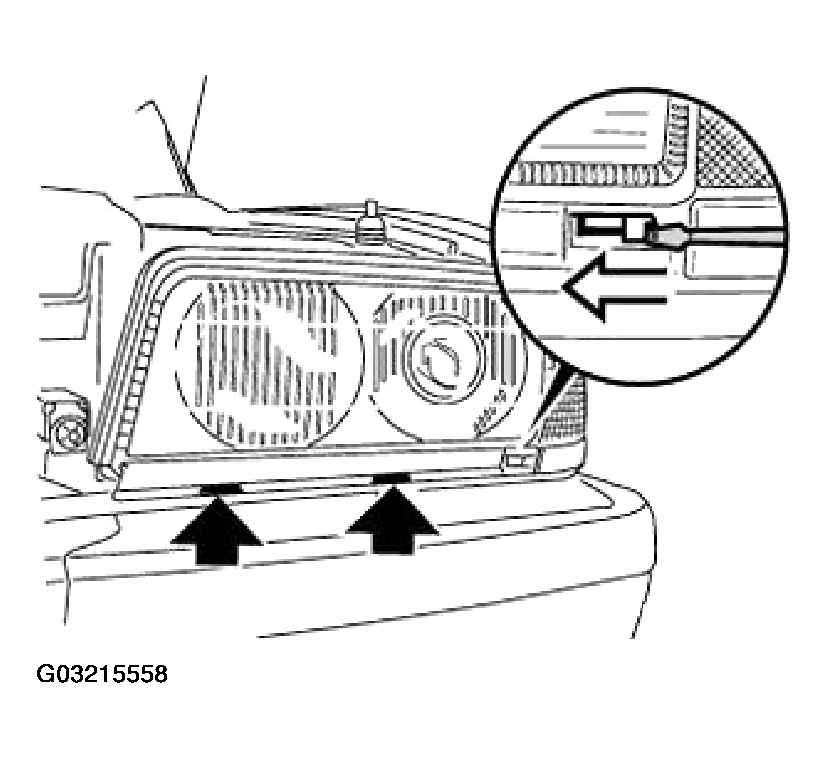

Fig 2: Lifting Up Detent Hook Slide Grill Towards Central Grill And Lift Out

Slide locking unit inwards. Unscrew bolts.

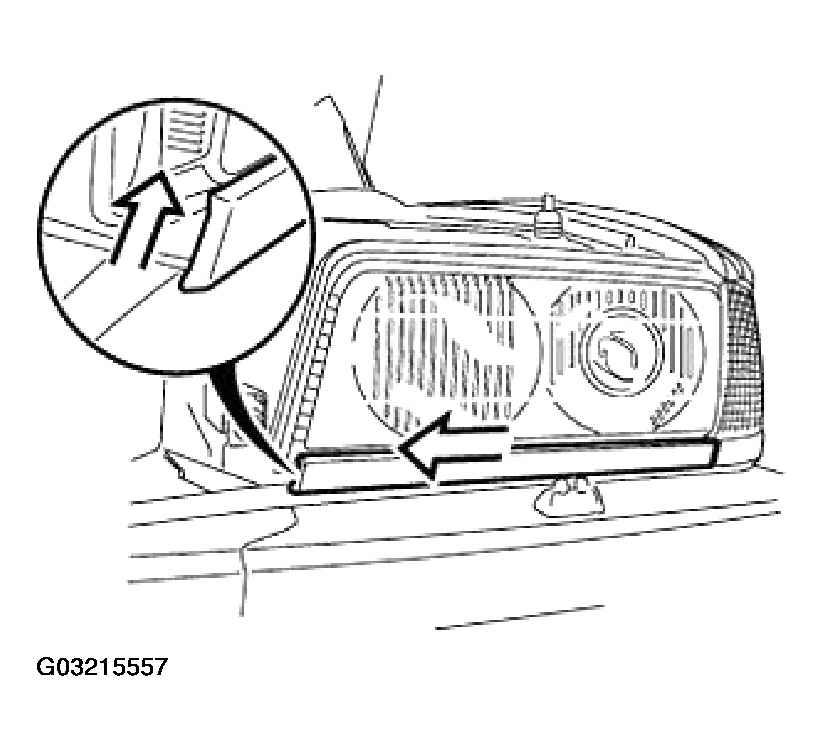

Fig 3: Sliding Locking Unit Inwards

Loosen nuts (1), unfasten screws (2) and relieve tension on adjusting nuts (3). Lift headlights forwards to remove.

Installation:

1. Aim headlight, refer to 63 10 004 AIMING HEADLIGHTS

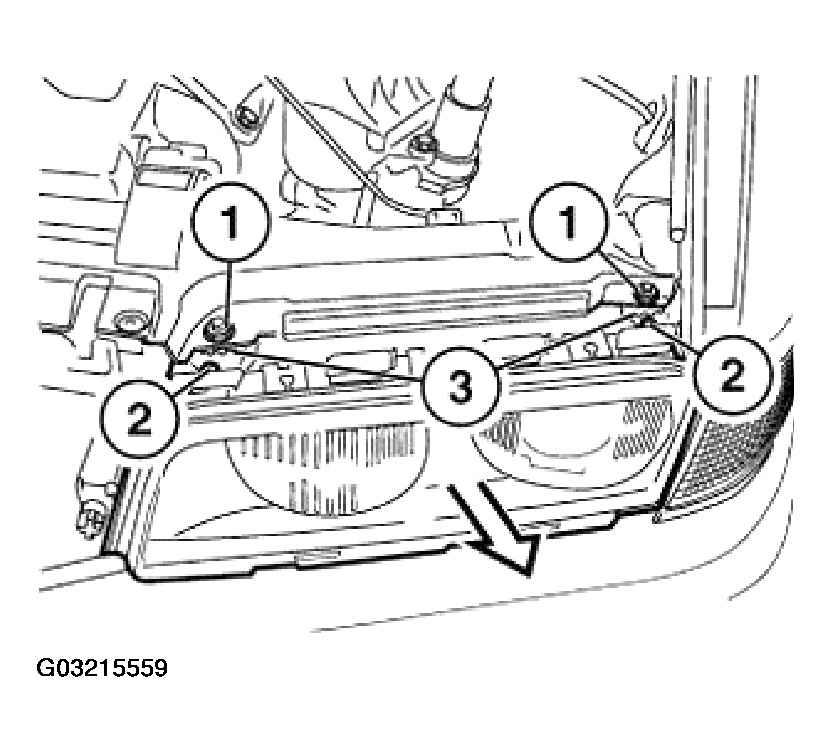

   Fig 4: Removing Headlights
