63 10 004 Aiming headlights

1. Note: For test requirements for headlight vertical aim adjustment, refer to 63 10... TEST REQUIREMENTS FOR HEADLIGHT VERTICAL AIM ADJUSTMENT  .

Adjust headlights by turning adjusting screws (1) and (2).

A definite allocation of adjusting screws is not possible.

1. Adjusting screw for vertical aiming
2. Adjusting screw for lateral aiming

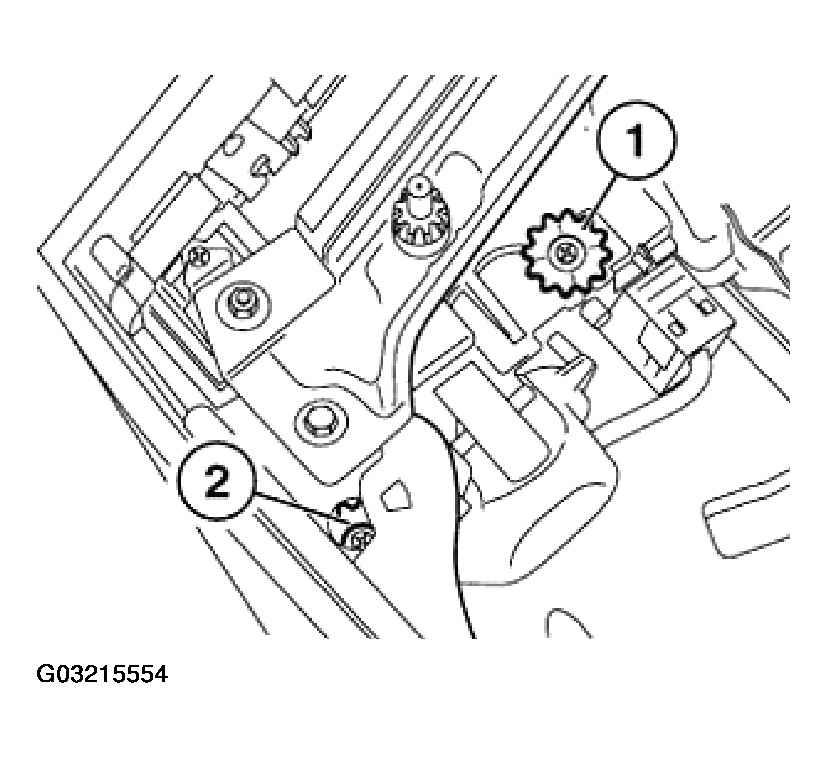

   Fig 1: Adjusting Screw For Aiming Headlights
