63 12 870 Replacing ignition unit for left xenon headlight

1. Remove complete headlight assembly, refer to 63 12 001 REMOVING AND INSTALLING/REPLACING COMPLETE LEFT-HAND HEADLIGHT ASSEMBLY

Release clip and take off bulb cover.

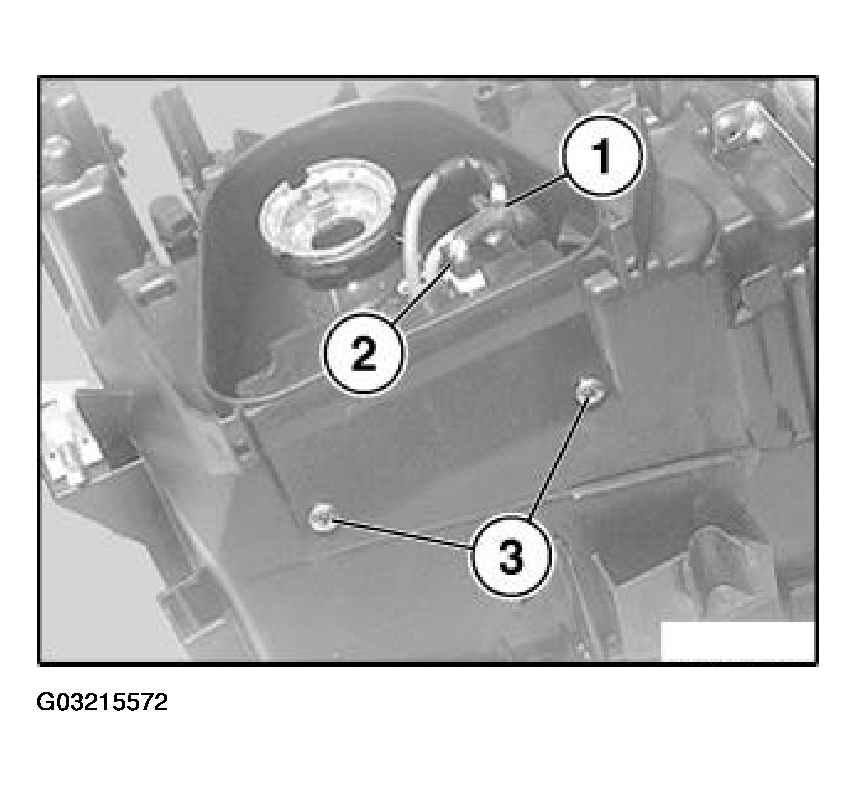

Unfasten cable tie (1), remove connector (2), unfasten screws (3) and lift out ignition unit.

Fig 1: Removing Ignition Unit
