63 12 002 Removing and installing or replacing complete right headlight

1. Remove turn signal, refer to 63 13 150 REMOVING AND INSTALLING/REPLACING COMPLETE FRONT LEFT OR RIGHT TURN SIGNAL LAMP  3

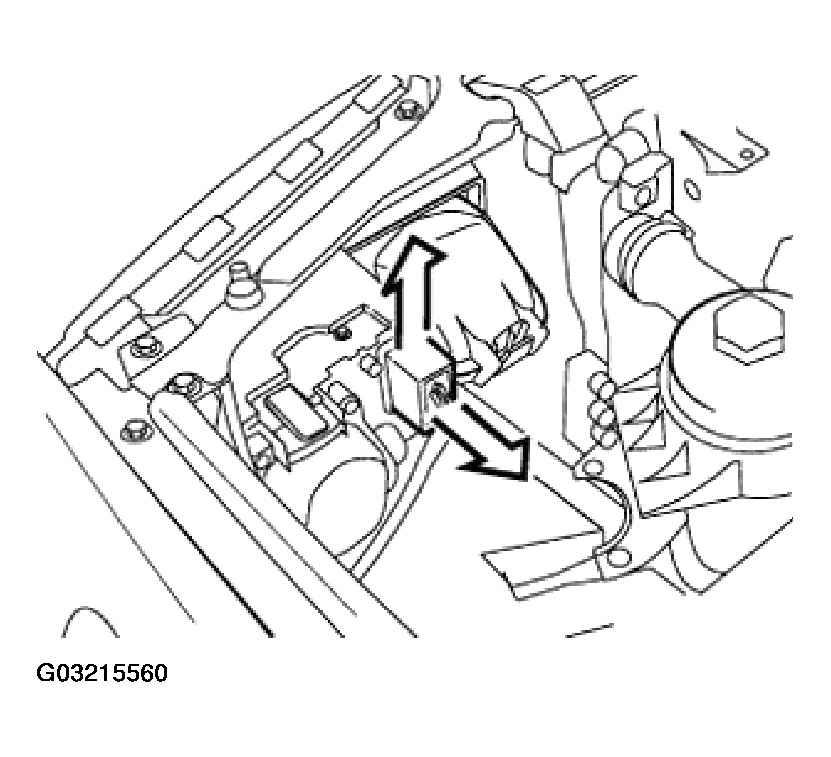

Lift up unlocking unit and remove connector.

Fig 1: Lifting Up Unlocking Unit And Removing Connector

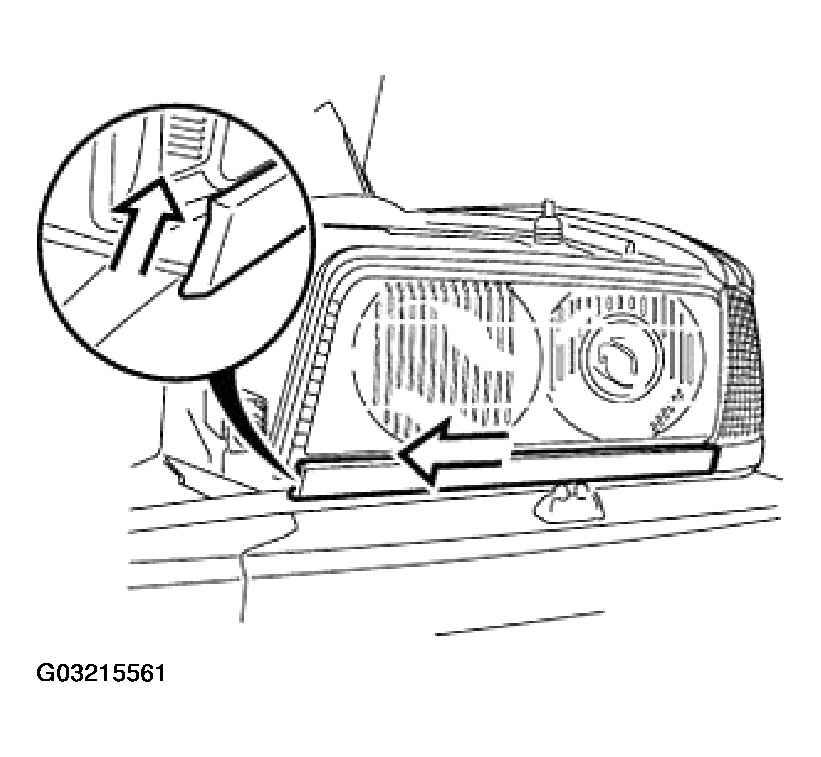

Lift up locking hook, slide finisher towards center and lift out.

Fig 2: Lifting Up Locking Hook Slide Finisher Towards Centre And Lift Out

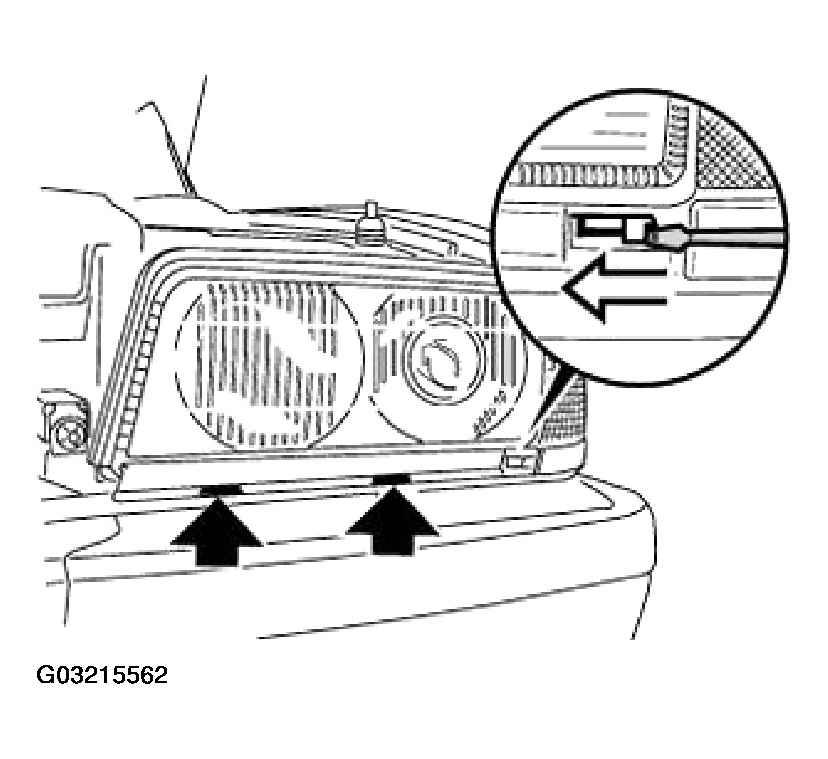

Slide locking unit inwards. Unscrew bolts.

Fig 3: Sliding Locking Unit Inwards

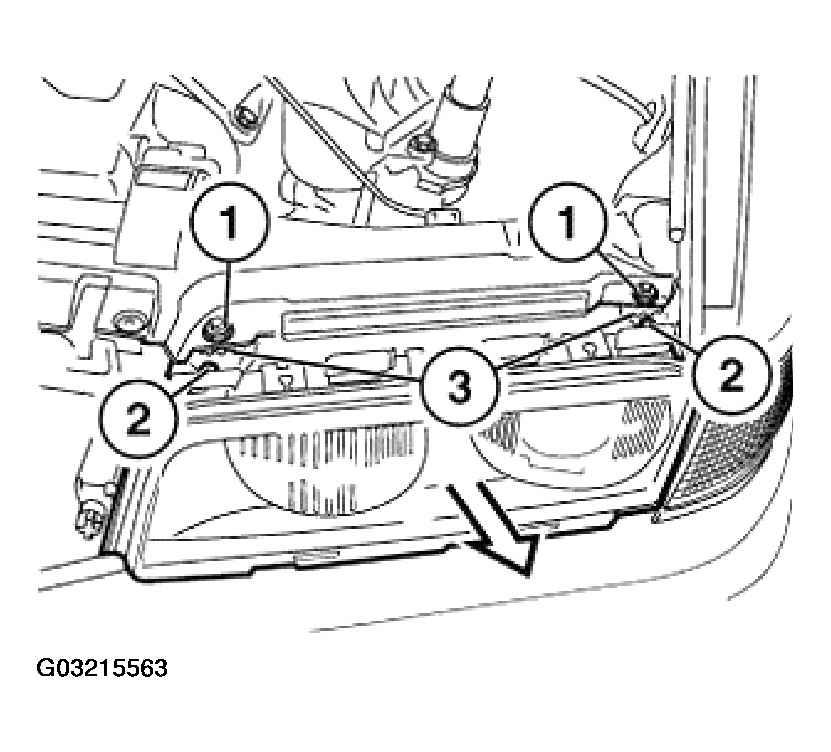

Loosen nuts (1), unfasten screws (2) and relieve tension on adjusting nuts (3). Lift headlights forwards to remove.

Installation:

1. Aim headlight, refer to 63 10 004 AIMING HEADLIGHTS
   Fig 4: Removing Headlight
