Dimensions - Rear Name Badges And Emblems

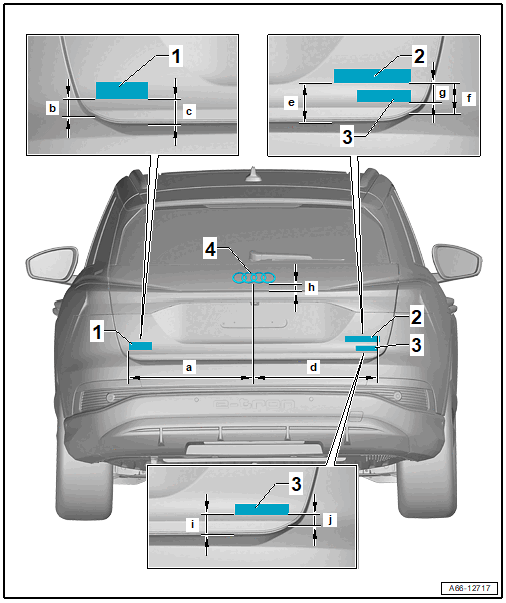

Fig 1: Identifying Dimensions For Rear Name Badges And Emblems, Q4 Sportback

Courtesy of AUDI OF AMERICA, LLC

Model Name Badge
- Dimension -a- = 583 mm
- Dimension -b- = 79 mm
- Dimension -c- = 80 mm.
- Replace after removing
- Refer to COMPONENTS WITH ADHESIVE TAPE, REQUIREMENTS .
Performance Specification Name Badge
- Dimension -d- = 603 mm
- Dimension -e- = 82 mm
- Dimension -f- = 79 mm
- Replace after removing
- Refer to COMPONENTS WITH ADHESIVE TAPE, REQUIREMENTS .
quattro Name Badge
- Dimension -d- = 603 mm
- With performance specification: dimension -g- =19 mm
- Without performance specification: dimension -i- = 80 mm
- Without performance specification: dimension -j- = 79 mm
- Replace after removing
- Refer to COMPONENTS WITH ADHESIVE TAPE, REQUIREMENTS .
Audi Emblem
- Dimension -h- = 24 mm
- Replace after removing
- Refer to COMPONENTS WITH ADHESIVE TAPE, REQUIREMENTS .
