Roof Pillar, Replacing, SPORTBACK: Procedure

• Roof, removed; vehicles without Panorama roof. Refer to ROOF, REPLACING, VEHICLE WITHOUT PANORAMA TILTING SUNROOF .
• Roof, removed; vehicles with Panorama roof. Refer to ROOF, REPLACING, VEHICLES WITH PANORAMA ROOF .

Separating Points

Permitted Separation Cuts on Entire Side Wall Frame. Refer to PERMITTED SEPARATION CUTS ON ENTIRE SIDE WALL FRAME .

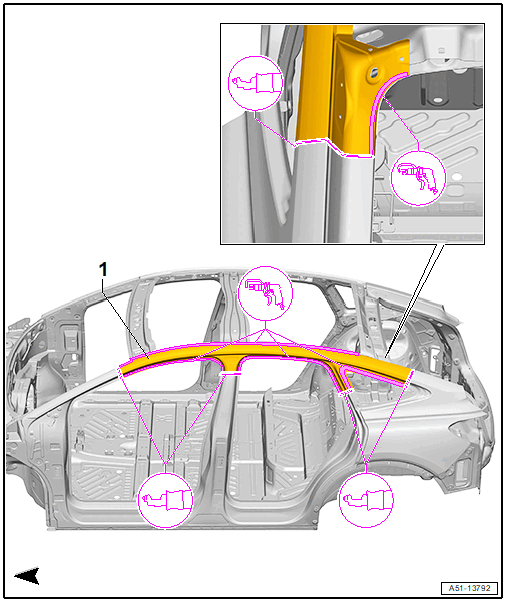

-- Perform the separation cuts using the Edge Milling Unit.

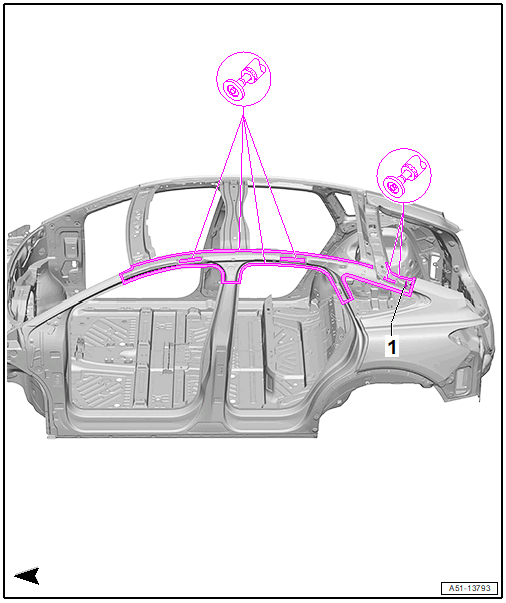

-- Separate the original joint at the roof pillar -1- using the Spot Weld Breaker.

-- Remove the roof pillar -1- from the body.

Courtesy of AUDI OF AMERICA, LLC

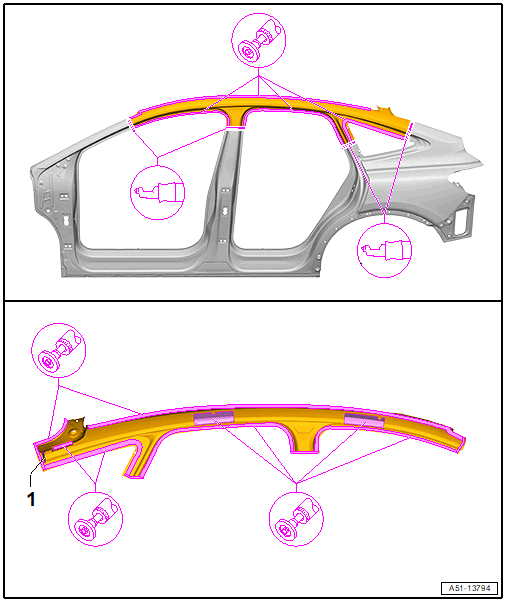

-- Remove the foam residue -1- as much as possible before sanding.

-- Remove the remaining material using the One-Handed Angle Grinder.

-- Grind down the welding surfaces to bare metal using the One-Handed Angle Grinder.

-- Completely remove any residual adhesive and grind down the adhesive surface to bare metal using the One-Handed Angle Grinder.

Courtesy of AUDI OF AMERICA, LLC

Replacement Parts

• Side Wall Frame
• Molded Foam Parts
• Two-Part Body Adhesive :D 180 003 M3
• Silicone Remover :LVM 020 000 A5

New Part, Preparing

-- Transfer the separation cuts to the new part and perform with a Edge Milling Unit.

-- Use the One-Handed Angle Grinder to sand the adhesive surfaces and welding surfaces to bare metal.

-- Install the molded foam part -1-. Refer to MOLDED FOAM PARTS .

-- Clean the adhesive surfaces using Silicone Remover :LVM 020 000 A5  .

Courtesy of AUDI OF AMERICA, LLC

Welding

-- Install the molded foam part -1-. Refer to MOLDED FOAM PARTS .

-- Clean the adhesive surfaces using Silicone Remover :LVM 020 000 A5  .

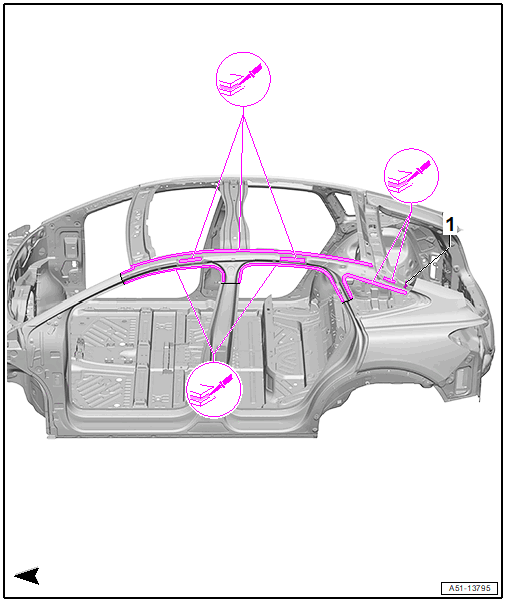

-- Apply Two-Part Body Adhesive :D 180 003 M3  on the entire surface using the Double Cartridge Gun.

Courtesy of AUDI OF AMERICA, LLC

-- Fit the new part to the vehicle resting on its wheels or on the Alignment Set and secure.

-- Check the fit with attachments.

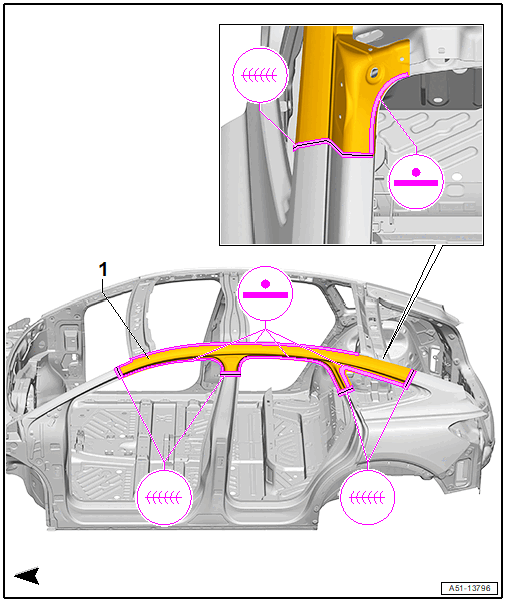

-- Weld the roof pillar -1- using a Resistance Spot Welder with a straight-line spot weld seam.

-- Weld the separation cuts with a gas-shielded arc continuous weld seam using a Gas-Shielded Welder.

Courtesy of AUDI OF AMERICA, LLC

-- Install the roof; vehicles without Panorama roof. Refer to ROOF, REPLACING, VEHICLE WITHOUT PANORAMA TILTING SUNROOF .

-- Install the roof, vehicle with panorama roof. Refer to ROOF, REPLACING, VEHICLES WITH PANORAMA ROOF .
