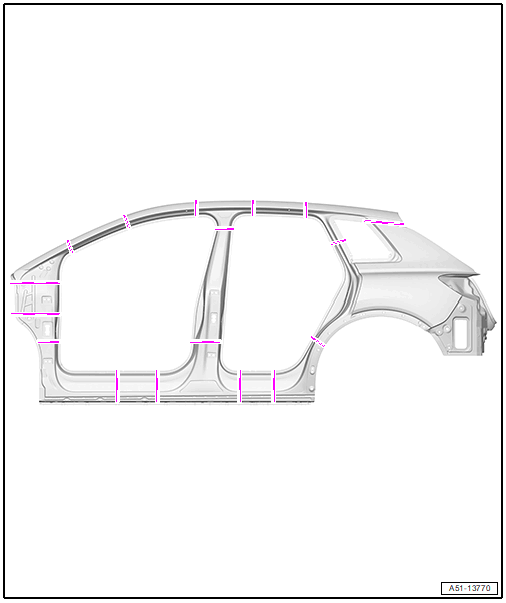

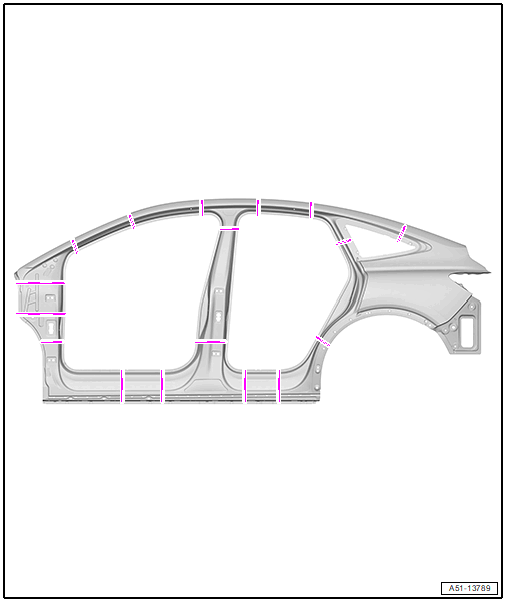

Permitted Separation Cuts On Entire Side Wall Frame
NOTE:
To weld the separation cut use the welding tool approve by Audi AG. Refer to TOOLS .
Gas-shielded arc continuous weld seams are permitted on the separation cuts shown.
Q4 Sportback
