Overview - Steering Column Trim Panel

The overview shows a LHD vehicle as an example.

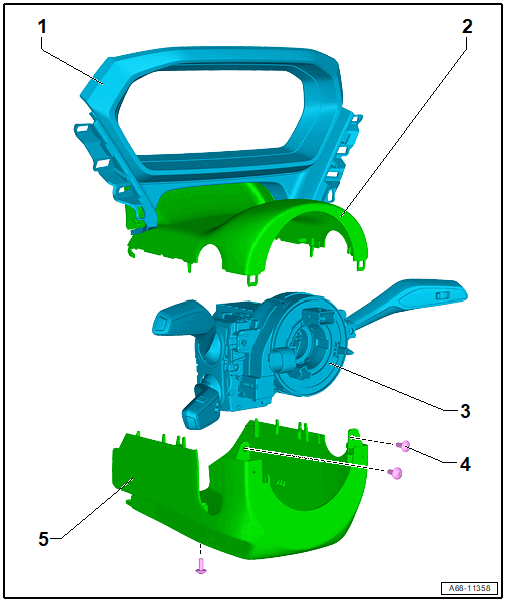

Fig 1: Exploded View Of Steering Column Trim Panel

Courtesy of AUDI OF AMERICA, LLC

1. Instrument Cluster Trim
   • Refer to Instrument Cluster Trim, Removing and Installing .
2. Upper Steering Column Trim Panel
   • Refer to UPPER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING  .
3. Steering Column Switch Module
   • Refer to OVERVIEW - STEERING COLUMN SWITCH MODULE .
4. Bolt
   • For the lower steering column trim panel on the steering column
   • Quantity: 3
   • 2.5 Nm
5. Lower Steering Column Trim Panel
   • Refer to Lower Steering Column Trim Panel, Removing and Installing  .
