Overview - Center Console

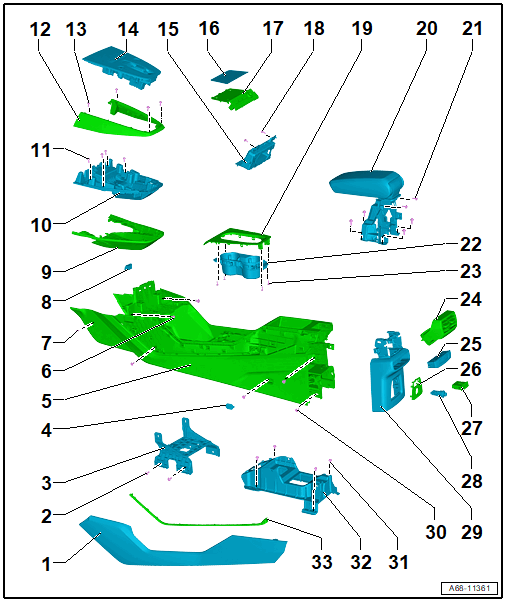

Fig 1: Exploded View Of Center Console

Courtesy of AUDI OF AMERICA, LLC

Center Console Side Trim Panel
- Refer to Center Console Side Trim Panel, Removing and Installing .
Bolt
- Quantity: 4
- 6 Nm
Front Center Console Bracket
- Refer to Center Console Bracket, Removing and Installing .
Cap
Center Console
- Refer to Center Console, Removing and Installing .
Bolt
- For the center console to the instrument panel
- Quantity: 2
- 3 Nm
Bolt
- For center console to air distribution box
- Quantity: 2
- 1.5 Nm
Front Center Console Storage Compartment Lamp
- Refer to COMPONENT LOCATION OVERVIEW - LAMPS ON THE CENTER CONSOLE, IN THE SEATS .
Control Center Lower Section
- Refer to CONTROL CENTER LOWER SECTION, REMOVING AND INSTALLING
Control Center Carrier
- Refer to CONTROL CENTER, REMOVING AND INSTALLING
Bolt
- For the control center to center console
- Quantity: 4
- 3 Nm
Control Center Upper Section
- Refer to CONTROL CENTER UPPER SECTION, REMOVING AND INSTALLING
Bolt
- Quantity: 4
- 3 Nm
Center Console Insert
- Refer to Center Console Insert, Removing and Installing .
Rear Center Console Storage Compartment
- Refer to Rear Center Console Storage Compartment, Removing and Installing .
Storage Compartment Mat
Front Center Console Storage Compartment
- Refer to Front Center Console Storage Compartment, Removing and Installing .
Bolt
- Quantity: 2
- 3 Nm
Cupholder Trim
Center Armrest
- Refer to OVERVIEW - FRONT CENTER ARMREST .
Bolt
- Quantity: 6
- Tightening specification. Refer to OVERVIEW - FRONT CENTER ARMREST .
Cupholder
- Refer to Cupholder, Removing and Installing .
Bolt
- For cupholder trim to the cupholder
- Quantity: 4
- 1.4 Nm
Rear Center Console Vent
- Refer to Rear Center Console Vent, Removing and Installing .
Rear A/C Control Head
- Refer to COMPONENT LOCATION OVERVIEW - COMPONENTS IN FRONT VEHICLE INTERIOR .
Multimedia Device Interface Bracket
- Refer to EXTERNAL MULTIMEDIA DEVICE INTERFACE BRACKET, REMOVING AND INSTALLING .
USB Interface
- Refer to USB CHARGING SOCKET 1 -U37-, REMOVING AND INSTALLING .
12 Volt Socket
- Refer to OVERVIEW - CIGARETTE LIGHTER, 12 V SOCKET .
Center Console Rear Trim
- Refer to Center Console Rear Trim, Removing and Installing .
Bolt
- For the center console to the center console bracket
- Quantity: 8
- 3 Nm
Bolt
- Quantity: 4
- 6 Nm
Rear Center Console Bracket
- Refer to Center Console Bracket, Removing and Installing .
Ambient Lighting
- Refer to COMPONENT LOCATION OVERVIEW - LAMPS ON THE CENTER CONSOLE, IN THE SEATS .
