Component Location Overview - Components In Front Vehicle Interior

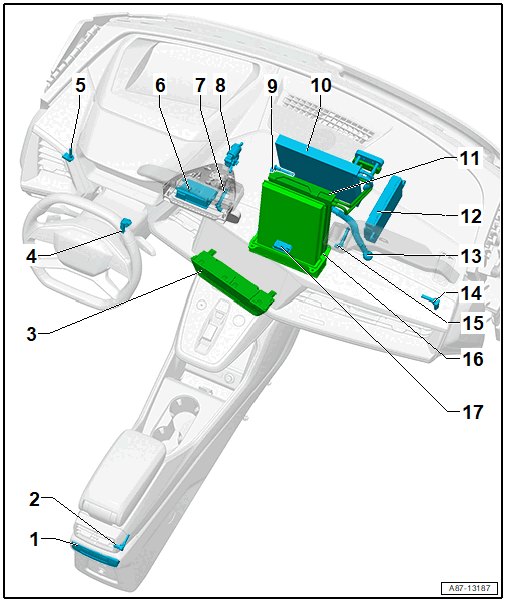

Fig 1: Identifying Components In Front Vehicle Interior

Courtesy of AUDI OF AMERICA, LLC

1. Rear A/C Display Control Head -E265-
   • Refer to Rear A/C Display Control Head E265, Removing and Installing .
2. Rear Vent Temperature Sensor -G174-
   • Refer to REAR VENT TEMPERATURE SENSOR -G174-, REMOVING AND INSTALLING .
3. Front A/C Display Control Head -E87-
   • Refer to FRONT A/C DISPLAY CONTROL HEAD -E87-, REMOVING AND INSTALLING .
4. Vehicle Interior Temperature Sensor -G1090-
   • Refer to Vehicle Interior Temperature Sensor -G1090-, Removing and Installing .
5. Left Vent Temperature Sensor -G150-
   • Refer to LEFT VENT TEMPERATURE SENSOR -G150-, REMOVING AND INSTALLING .
6. A/C Humidity Sensor -G260-
   • Refer to A/C HUMIDITY SENSOR -G260-, REMOVING AND INSTALLING .
7. Left Footwell Vent Temperature Sensor -G261-
   • Refer to LEFT FOOTWELL VENT TEMPERATURE SENSOR G261, REMOVING AND INSTALLING .
8. Actuator
   • Example for all actuators
   • Refer to OVERVIEW - FRONT ACTUATORS (PR NUMBER KH7) , or OVERVIEW - FRONT ACTUATORS (PR NUMBER KC0) .
9. Evaporator Temperature Sensor -G308-
   • Refer to EVAPORATOR TEMPERATURE SENSOR -G308-, REMOVING AND INSTALLING .
10. Evaporator
    • Refer to EVAPORATOR, REMOVING AND INSTALLING (R744) , or EVAPORATOR, REMOVING AND INSTALLING (R134A/R1234YF) .
11. Heat Condenser
    • Only installed on vehicles with refrigerant R744
    • Refer to Heat Condenser, Removing and Installing  .
12. Heating and Air Conditioning Control Module -J979-
    • Refer to HEATING AND AIR CONDITIONING CONTROL MODULE J979, REMOVING AND INSTALLING .
13. Condensation Water Drain Hose
    • Refer to Condensation Water Drain, Checking .
    • Refer to Condensation Water Drain, Removing and Installing .
14. Right Vent Temperature Sensor -G151-
    • Refer to Right Vent Temperature Sensor -G151-, Removing and Installing .
15. Right Footwell Vent Temperature Sensor -G262-
    • Refer to RIGHT FOOTWELL VENT TEMPERATURE SENSOR G262, REMOVING AND INSTALLING .
16. High-Voltage Heater (PTC) -ZX17-
    • With High-Voltage Heater (PTC) Control Module -J848-
    • With High-Voltage Heater (PTC) -Z115-
    • Refer to High-Voltage Heater (PTC) -ZX17-, Removing and Installing .
17. Vehicle Interior Carbon Dioxide Concentration Sensor -G929-
    • Only installed on vehicles with refrigerant R744
    • Refer to VEHICLE INTERIOR CARBON DIOXIDE CONCENTRATION SENSOR -G929-, REMOVING AND INSTALLING .
