Component Location Overview - Access/Start Authorization System

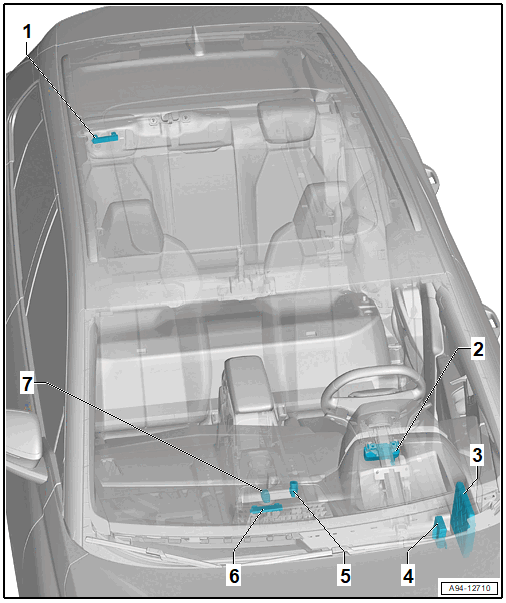

Fig 1: Identifying Access/Start Authorization System Components

Courtesy of AUDI OF AMERICA, LLC

Access/Start System Antenna In Luggage Compartment -R137-
- Refer to ACCESS/START SYSTEM ANTENNA IN LUGGAGE COMPARTMENT R137, REMOVING AND INSTALLING .
Electronic Steering Column Lock Control Module -J764-
- Refer to Overview - Steering Column Switch Module .
Vehicle Electrical System Control Module -J519-
- Refer to Overview - Vehicle Electrical System Control Module .
Access/Start Authorization Control Module -J518-
- Refer to ACCESS/START AUTHORIZATION CONTROL MODULE J518, REMOVING AND INSTALLING .
Start System Button -E378-
- Refer to Start System Button E378, Removing and Installing .
Access/Start System Antenna 1 in Vehicle Interior -R138-
- Refer to ACCESS/START SYSTEM ANTENNA 1 IN VEHICLE INTERIOR R138, REMOVING AND INSTALLING .
Ignition Key
