Overview - Rear Thorax Airbag

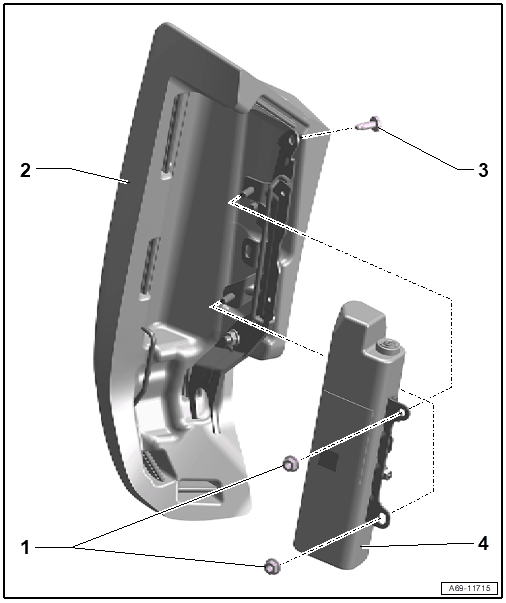

Fig 1: Exploded View Of Rear Thorax Airbag
GWWA69-11715Courtesy of AUDI OF AMERICA, LLC
  1. Nuts
    • 10 Nm
    • Replace after removing
  2. Side Cushion
  3. Bolt
  4. Rear Thorax Airbag
