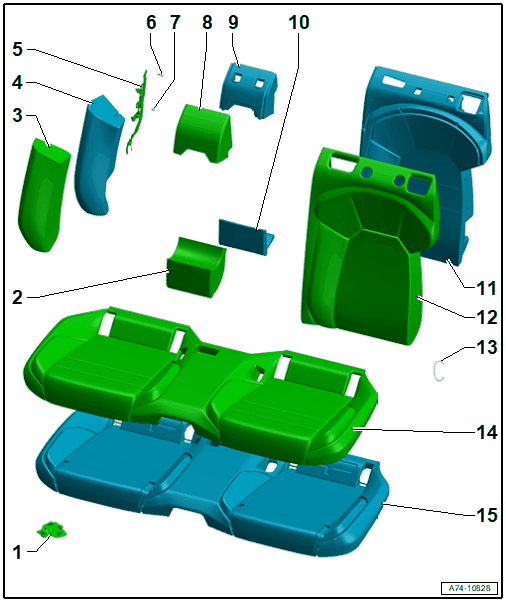

Overview - Cover And Cushion

Courtesy of AUDI OF AMERICA, LLC

Bracket for Connector
- Equipped on some models
- Clipped onto the cushion under the bench seat
- Quantity: 2
Lower Center Cushion Cover
- Refer to LOWER CENTER CUSHION, REMOVING AND INSTALLING
Side Cushion Cover
- Refer to COVER AND CUSHION, SEPARATING, SEAT CUSHION
Side Cushion
- Refer to SIDE CUSHION, REMOVING AND INSTALLING
Bracket
- For side cushion
- Refer to COVER AND CUSHION, SEPARATING, SEAT CUSHION
Bolt
- 10 Nm
Nut
- 7 Nm
- Quantity: 2
Upper Center Cushion Cover
- Refer to UPPER CENTER CUSHION, REMOVING AND INSTALLING
Center Cushion
- Upper
- Refer to UPPER CENTER CUSHION, REMOVING AND INSTALLING
Center Cushion
- Lower
- Refer to LOWER CENTER CUSHION, REMOVING AND INSTALLING
Backrest Cushion
- Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR SEAT BACKREST
- Refer to COVER AND CUSHION, SEPARATING, REAR SEAT BACKREST
- Equipment version with seat heating. Refer to Backrest Heating Element, Removing and Installing .
Backrest Cover
- Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR SEAT BACKREST
- Refer to COVER AND CUSHION, SEPARATING, REAR SEAT BACKREST
Upholstery Clip
- Replace after removing
- For securing the cover to the cushion
- Install at the same location with Upholstery Clip Pliers:VAG1634A .
Seat Cover
- Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR BENCH SEAT
- Refer to COVER AND CUSHION, SEPARATING, REAR BENCH SEAT
Seat Cushion
- Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR BENCH SEAT
- Refer to COVER AND CUSHION, SEPARATING, REAR BENCH SEAT
- Equipment version with seat heating. Refer to Seat Heating Element, Removing and Installing .
