Component Location Overview - Seat Occupant Detection System

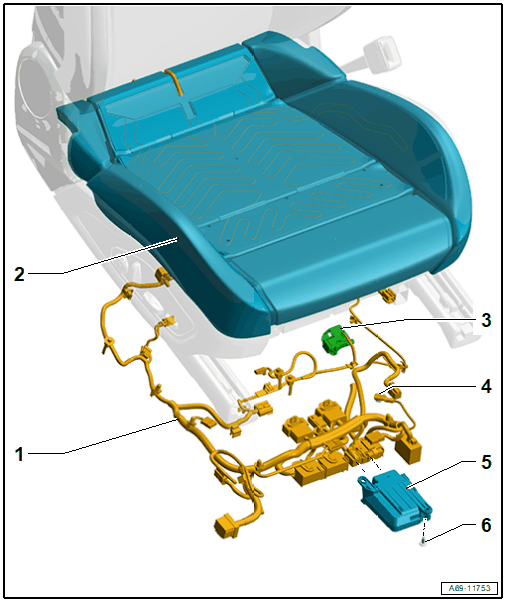

Fig 1: Exploded View Of Seat Occupant Detection System

Courtesy of AUDI OF AMERICA, LLC

1. Wiring Harness
   • For the seat heating element with seat occupant detection system
   • Available only with -2-
   • Clip into the seat pan
   • Connector station in the vehicle floor under the seat.
   • Refer to Seat Occupant Detection System, Removing and Installing  .
2. Cushion with Seat Occupant Detection System
   • The seat heating element is used for the seat occupant detection system
   • Available only with -1-.
   • The seat occupant detection system is bonded on the cushion
   • Refer to Seat Occupant Detection System, Removing and Installing  .
3. Seat Position Sensor
   • Refer to Overview - Seat Position Sensor  .
4. Ground Connection
   • Nut: tightening specification
   • Refer to Overview - Seat Position Sensor  .
5. Seat Occupant Detection System Control Module -J706-
   • Refer to Seat Occupant Detection System Control Module -J706-, REMOVING AND INSTALLING
6. Bolt
   • 3.2 Nm
   • Quantity: 2
