Seat Position Sensor, Removing And Installing: Removing

-- Remove the bracket for the control module. Refer to OVERVIEW - SEAT PAN .

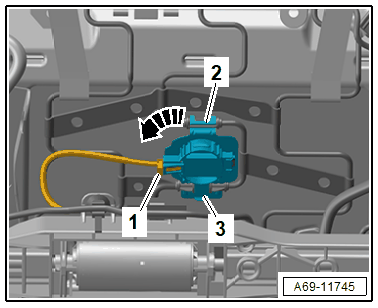

-- Remove the nut -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect and free up the remaining connectors.

-- Remove the cable ties or cable clips for the wire on the seat pan lower frame.

-- Remove the bolt -2-.

-- Remove the seat position sensor -1- into the seat pan lower frame.

-- Remove the seat position sensor with the wires.

Front Passenger Seat

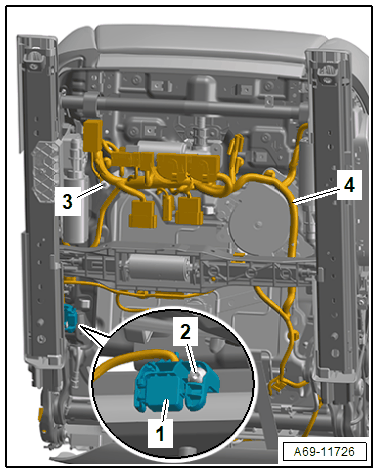

-- Remove the connector -1- from the seat occupant detection sensor.

Courtesy of AUDI OF AMERICA, LLC

Continuation for All Vehicles
