Airbag Control Module -J234-, REMOVING AND INSTALLING: Removing
If the control module is replaced, the test plan to replace the control module must be performed.
-- Perform the function "Airbag Control Module, Replacing" using the Vehicle Diagnostic Tester. Refer to Diagnostic Entry .
Continuation
Risk of damaging the airbag control module. If moisture enters the connectors, they will corrode.
- After disconnecting, cover or seal the control module connectors to prevent moisture from entering.
-- Remove the center console. Refer to Center Console, Removing and Installing .
-- Disconnect the battery ground cable. Refer to BATTERY, DISCONNECTING AND CONNECTING .
Pyrotechnical components can deploy unintentionally.
Risk of injury.
- Discharge the static electricity: quickly touch the door striker.

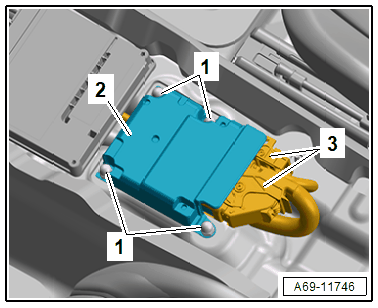

-- Disconnect the connectors -3-.
-- Remove the nuts -1-.
-- Remove the airbag control module -2- from the threaded pins.
