Inner Side Adhesive Bead, Cutting:

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

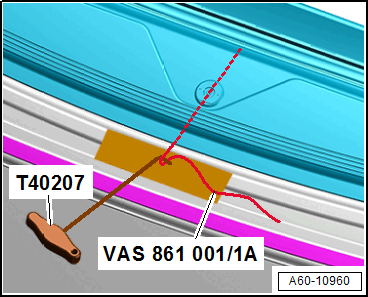

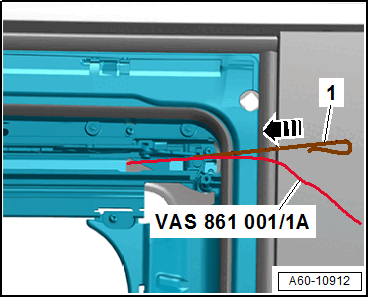

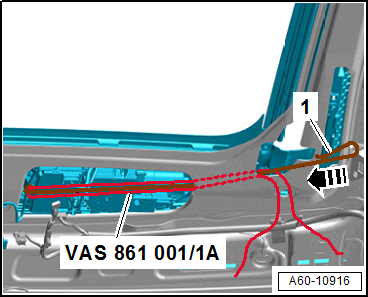

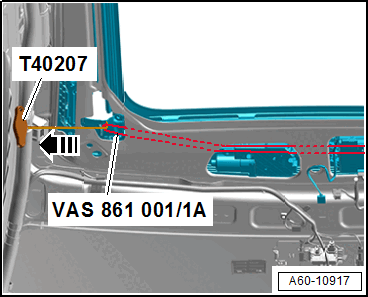

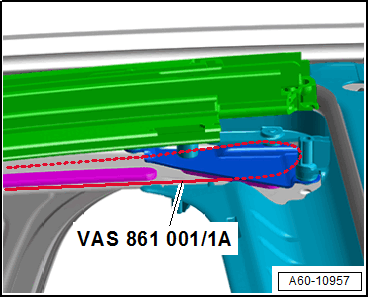

-- Using the tool -1-, slide the Cutting Cord :VAS 861 001/1A on the right side of the vehicle behind the inner adhesive bead between the roof and sunroof frame starting at the rear moving forward in direction of -arrow-.

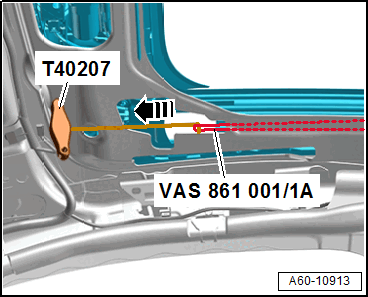

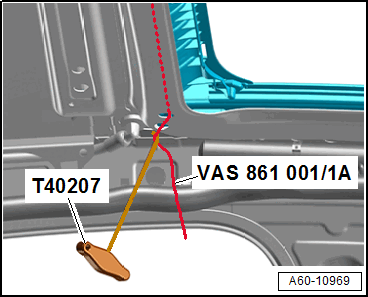

-- Grab the Cutting Cord :VAS 861 001/1A behind the inner adhesive bead with the Hook :T40207 and remove forward between the roof and the sunroof frame in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

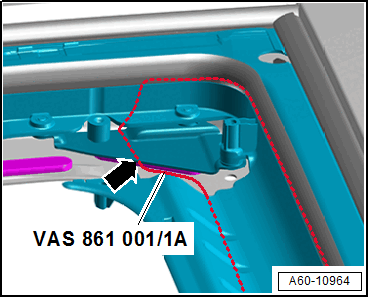

-- Route the inner end of the Cutting Cord :VAS 861 001/1A starting from the rear moving forward.

Courtesy of AUDI OF AMERICA, LLC

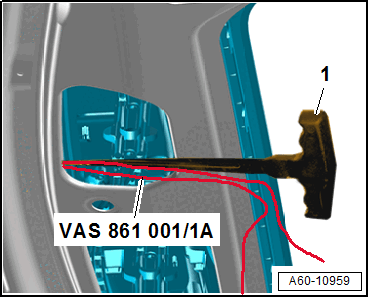

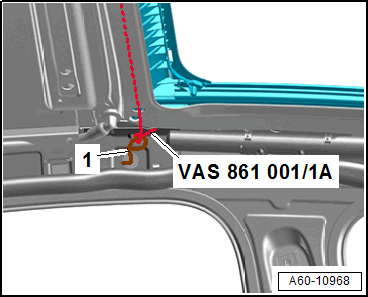

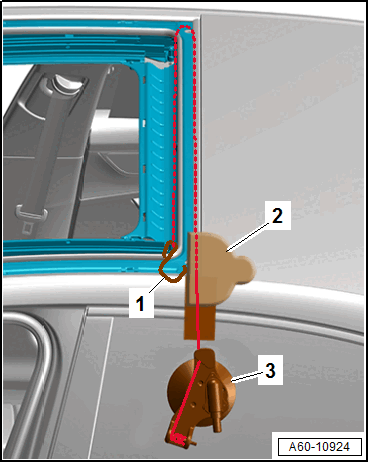

-- Engage the hook -1- from the Window Removal Set :VAS 861 001A on the roof frame.

Courtesy of AUDI OF AMERICA, LLC

-- Secure the inner end of the Cutting Cord :VAS 861 001/1A to the hook.

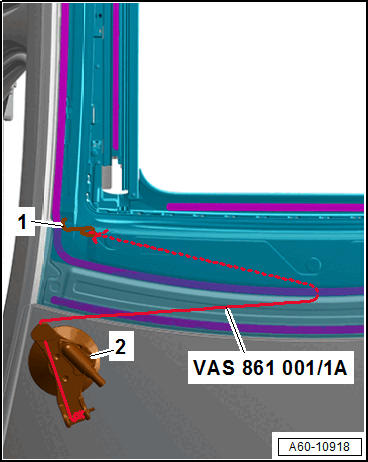

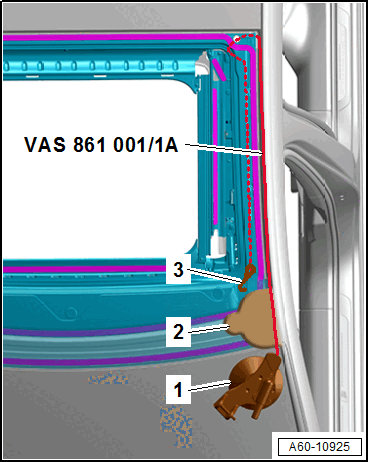

-- Secure the removal device -1- with the reel device on the inside of the windshield.

Courtesy of AUDI OF AMERICA, LLC

-- Slide the outer end of the cutting cord in the reel device on the removal device.

CAUTION:

Risk of eye injury due to flying shavings.

Eye irritation and injury is possible.

- Wear protective eyewear.

-- Tension the cutting cord with the reel device.

-- Cut through the inner side adhesive bead.

-- Remove the hook -2-.

-- Repeat the procedure on the other side of the vehicle.

Front Inner Adhesive Bead, Cutting:

Courtesy of AUDI OF AMERICA, LLC

-- Using the tool -1-, slide the Cutting Cord :VAS 861 001/1A on the right side of the vehicle behind the inner adhesive bead between the roof and sunroof frame in direction of -arrow-.

CAUTION:

There is a risk of damaging the wires with the cutting cord.

- Guide the cutting cord behind the wires.

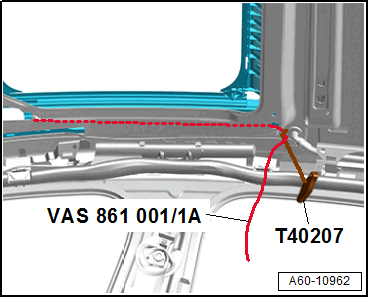

-- Grab the Cutting Cord :VAS 861 001/1A behind the inner adhesive bead with the Hook :T40207 and remove between the roof and the sunroof frame on the left side of the vehicle in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

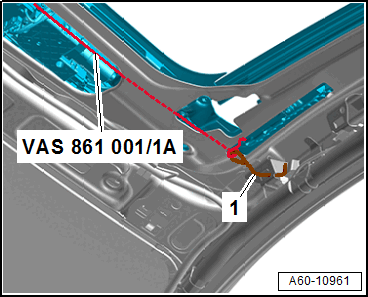

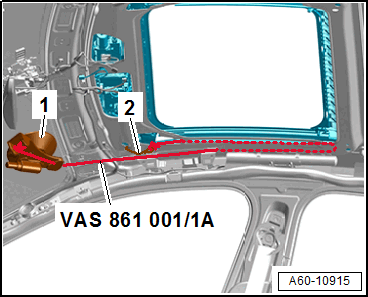

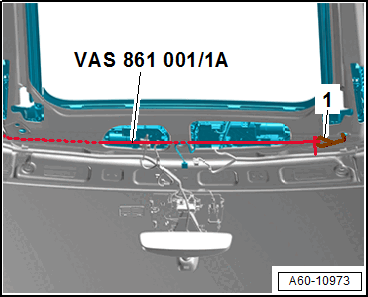

-- Engage the inner end of the Cutting Cord :VAS 861 001/1A with the hook -2- from the Window Removal Set :VAS 861 001A on the right roof frame.

Courtesy of AUDI OF AMERICA, LLC

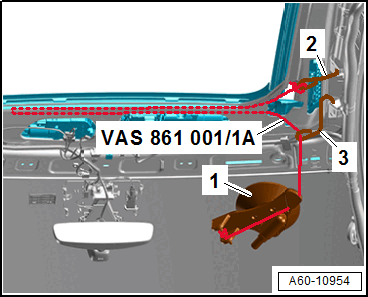

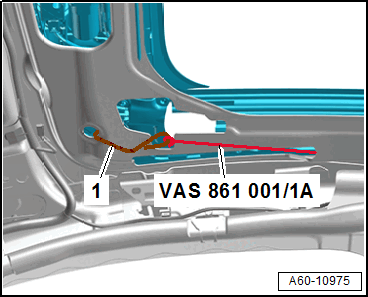

-- Redirect the outer end of the cutting cord through the Hook :10-222A/20 -3- and guide forward.

-- Secure the removal device -1- with the reel device on the inside of the windshield.

-- Slide the outer end of the cutting cord in the reel device on the windshield.

-- Tension the cutting cord with the reel device.

-- Cut through the front inner adhesive bead.

-- Remove the hook -2 and 3-.

Rear Inner Adhesive Bead, Cutting:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right bolts -arrows- for the sliding and tilting mechanism.

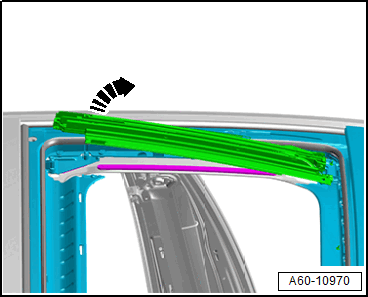

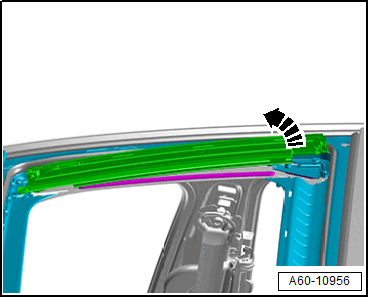

-- Lift up the sliding and tilting mechanism slightly on the right side at the rear edge in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

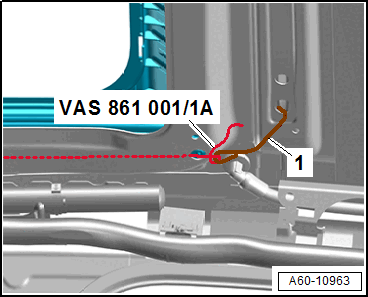

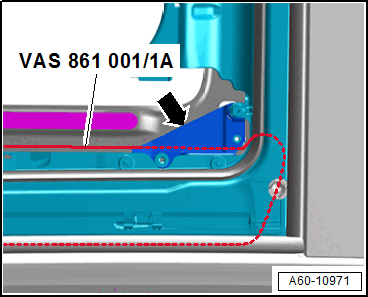

-- Guide the Cutting Cord :VAS 861 001/1A around the right link plate, under which the rear adhesive bead is located.

Courtesy of AUDI OF AMERICA, LLC

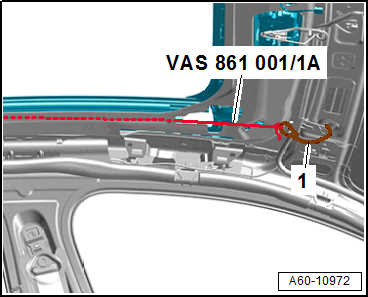

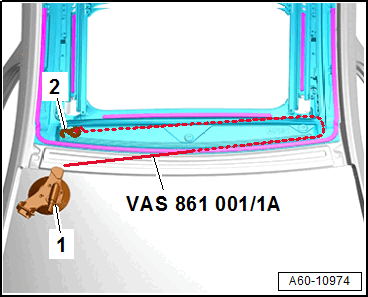

-- Engage the hook -1- from the Window Removal Set :VAS 861 001A on the roof frame.

Courtesy of AUDI OF AMERICA, LLC

-- Secure the inner end of the Cutting Cord :VAS 861 001/1A to the hook.

-- Secure the removal device -1- with the reel device on the inside of the windshield.

Courtesy of AUDI OF AMERICA, LLC

-- Slide the outer end of the Cutting Cord :VAS 861 001/1A into the reel device on the cutting device.

-- Tension the cutting cord with the reel device.

-- Cut through the rear inner adhesive bead.

-- Remove the hook -2-.

-- Repeat the procedure on the other side of the vehicle.

Outer Adhesive Bead, Cutting:

Courtesy of AUDI OF AMERICA, LLC

-- Protect the cutting area where the awl -1- from the Window Removal Set :VAS 861 001A is used on the roof frame over the windshield with adhesive tape.

-- At the front of the opening for the Sunroof Shade Motor -V260-, guide the Cutting Cord :VAS 861 001/1A with the awl -1- in the gap between the roof frame and the sunroof frame -arrow-.

-- Pull through one end of the Cutting Cord :VAS 861 001/1A with the Hook :T40207 outward.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There is a risk of damaging the wires with the cutting cord.

- Guide the cutting cord in front of the wires.

-- Pull the inner end of the Cutting Cord :VAS 861 001/1A toward the right side of the vehicle and guide out at the right opening.

Courtesy of AUDI OF AMERICA, LLC

-- Engage the hook -1- from the Window Removal Set :VAS 861 001A on the bracket for the right front roof grab handle.

-- Secure the cutting cord on the hook.

-- Secure the removal device with the reel device -2- on the outer right side of the windshield.

Courtesy of AUDI OF AMERICA, LLC

-- Tension the cutting cord with the reel device.

-- Cut through the front right adhesive bead.

-- Remove the hook -1-.

-- Guide the inner Cutting Cord :VAS 861 001/1A toward the rear and pull out of the hole in the roof frame with the Hook Tool :T40207 .

Courtesy of AUDI OF AMERICA, LLC

-- Engage the hook -1- from the Window Removal Set :VAS 861 001A in the hole in the roof frame.

Courtesy of AUDI OF AMERICA, LLC

-- Secure the inner end of the Cutting Cord :VAS 861 001/1A to the hook.

-- Secure the removal device with the reel device -1- on the outer right side of the rear window.

Courtesy of AUDI OF AMERICA, LLC

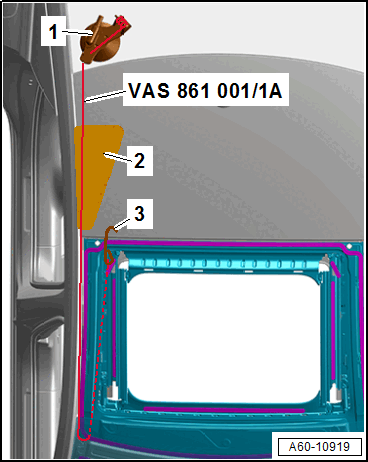

-- Place the cutting guard -2- from the Window Removal Set :VAS 861 001A underneath to protect the paint.

-- Tension the cutting cord with the reel device.

-- Cut the outer adhesive bead on the right side.

-- Remove the hook -3-.

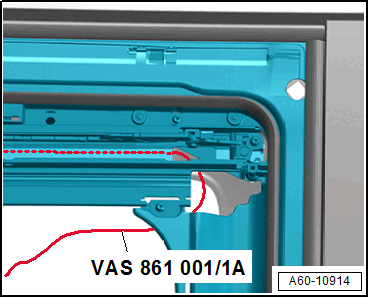

-- Guide the inner Cutting Cord :VAS 861 001/1A under the right link plate -arrow- and toward the left side of the vehicle.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the inner Cutting Cord :VAS 861 001/1A out of the hole in the roof frame on the left side of the vehicle with the Hook Tool :T40207 .

Courtesy of AUDI OF AMERICA, LLC

-- Engage the hook -1- from the Window Removal Set :VAS 861 001A in the hole in the roof frame on the left side.

Courtesy of AUDI OF AMERICA, LLC

-- Secure the inner end of the Cutting Cord :VAS 861 001/1A to the hook.

-- Secure the removal device with the reel device -3- on the outer left side of the rear side window.

Courtesy of AUDI OF AMERICA, LLC

-- Place the cutting guard -2- from the Window Removal Set :VAS 861 001A underneath to protect the paint.

-- Tension the cutting cord with the reel device.

-- Cut the rear adhesive bead.

-- Remove the hook -1-.

-- Lift up the sliding and tilting mechanism slightly on the left side of the rear edge in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Guide the Cutting Cord :VAS 861 001/1A through under the left link plate -arrow- and guide forward.

Courtesy of AUDI OF AMERICA, LLC

-- Pull the inner end of the Cutting Cord :VAS 861 001/1A through and forward.

Courtesy of AUDI OF AMERICA, LLC

-- Engage the hook -1- from the Window Removal Set :VAS 861 001A on the sunroof frame.

-- Secure the inner end of the cutting cord on the hook.

-- Secure the removal device using the reel device -1- on the outer left side of the windshield.

Courtesy of AUDI OF AMERICA, LLC

-- Place the cutting guard -2- from the Window Removal Set :VAS 861 001A underneath to protect the paint and the windshield.

-- Tension the cutting cord with the reel device.

-- Cut the left adhesive bead.

-- Remove the hook -3-.

CAUTION:

There is a risk of damaging the wires with the cutting cord.

- Guide the cutting cord in front of the wires.

-- Pull the inner end of the Cutting Cord :VAS 861 001/1A through toward the right side of the vehicle.

-- Engage the hook -1- from the Window Removal Set :VAS 861 001A on the roof frame.

Courtesy of AUDI OF AMERICA, LLC

-- Secure the inner end of the cutting cord on the hook.

-- Secure the removal device using the reel device -1- on the outer right side of the windshield.

Courtesy of AUDI OF AMERICA, LLC

-- Tension the Cutting Cord :VAS 861 001/1A with the reel device.

-- Cut the outer left adhesive bead.

-- Remove the hook -2-.

-- Remove the windshield frame with a second technician.

Installing

-- Prepare sunroof frames that is not damaged for installation (refer to SUNROOF FRAME WITHOUT DAMAGE, PREPARING FOR INSTALLATION ) or prepare the new sunroof frame for installation. Refer to NEW SUNROOF FRAME, PREPARING FOR INSTALLATION .

-- Prepare the body flange for installation. Refer to BODY FLANGE, PREPARING FOR INSTALLATION .

-- Apply the adhesive. Refer to OVERVIEW - ADHESIVE BEADS ON SLIDING SUNROOF FRAME, A6 SEDAN .

-- Insert the sunroof frame into the roof opening.

The sealing lip on the cover profile -3- of the windshield -1- must contact the glass trim -2- and must point upward -arrow-. For this, attach the sealing lip with adhesive tape to the windshield or place a used cutting wire behind it.

Courtesy of AUDI OF AMERICA, LLC

-- Align the front sunroof frame.

The glass trim must be centered between the roof pillars.
Check or correct installation dimensions. Refer to GLASS PANEL, ADJUSTING .

Install in reverse order of removal. Note the following:

Observe minimum curing times. Refer to MINIMUM CURING TIME FOR BONDED SLIDING SUNROOF .

-- Perform an adaptation. Refer to Sunroof Motor -V1-, PROGRAMMING .
