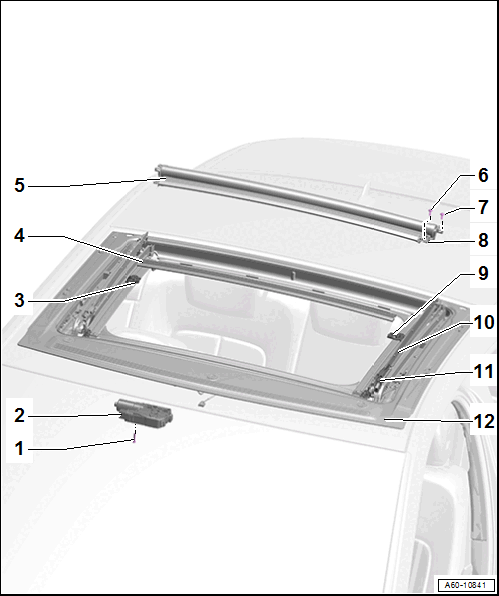

Overview - Sunroof Shade, Front, A6
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 3 Nm
- Always replace after removing
- Self-locking
- Quantity: 2
- Sunroof Shade Motor -V260-
- Removing and Installing. Refer to Sunroof Shade Motor -V260-, REMOVING AND INSTALLING, FRONT, A6 .
- Perform the adaptation after installing. Refer to Sunroof Shade Motor -V260-, ADAPTING .
- Right Driver
- For sunroof shade
- Removing and Installing. Refer to SUNROOF SHADE CABLE, REMOVING AND INSTALLING, A6 .
- Bow
For sunroof shade
- Sunroof Shade
- Removing and Installing. Refer to FRONT SUNROOF SHADE, REMOVING AND INSTALLING, A6 .
- Perform the adaptation after installing. Refer to Sunroof Shade Motor -V260-, ADAPTING .
- Bolt
- 3 Nm
- Always replace after removing
- Thread cutting
- Position and install by hand
- Quantity: 2
- Bolt
- 3 Nm
- Always replace after removing
- Thread cutting
- Position and install by hand
- Quantity: 2
- Slider
- On sunroof shade
- Connected to the driver
- Left Driver
- For sunroof shade
- Removing and Installing. Refer to SUNROOF SHADE CABLE, REMOVING AND INSTALLING, A6 .
- Guide
- For the slide and tilting mechanism
- Overview. Refer to OVERVIEW - SLIDING AND TILTING MECHANISM .
- Inner Bracket
- For the cables
- Cable, Removing and Installing. Refer to SUNROOF SHADE CABLE, REMOVING AND INSTALLING, A6 .
- Sunroof Frame
