Overview - Sliding Sunroof, A6 Sedan

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

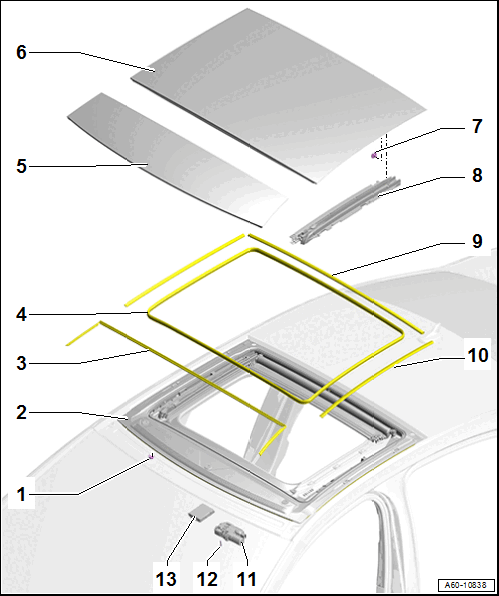

Fig 1: Exploded View Of Sliding Sunroof, A6 Sedan

Courtesy of AUDI OF AMERICA, LLC

Nut
- 4 Nm
- Quantity: 3
Sunroof Frame
- Removing and Installing. Refer to SUNROOF FRAME, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
Seal
- For glass trim
- Mounted on glass trim
- Can only be removed with the glass trim -item 5- ) OVERVIEW - SLIDING SUNROOF, A6 SEDAN
Inner Seal
- Mounted on the sunroof frame
Glass Trim
- Always replace after removing
- Removing and Installing. Refer to GLASS TRIM, REMOVING AND INSTALLING, A6 .
Glass Panel
- Removing and Installing. Refer to FRONT GLASS PANEL, REMOVING AND INSTALLING, A6 .
- Adjusting. Refer to GLASS PANEL, ADJUSTING, A6 .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
- Emergency Opening. Refer to OPERATING WITHOUT ELECTRICITY .
Bolt
- 5.5 Nm
- Always replace after removing
- Self-locking
- Quantity: 8
Slide and Tilting Mechanism
- Overview. Refer to OVERVIEW - SLIDING AND TILTING MECHANISM .
Outer Seal
- Always replace after removing
- Bonded to the sunroof frame
Outer Side Seal
- Always replace after removing
- Bonded to the sunroof frame
Sunroof Motor -V1-
- Removing and Installing. Refer to Sunroof Motor -V1-, REMOVING AND INSTALLING, A6 .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
Bolt
- 3 Nm
- Always replace after removing
- Self-locking
- Quantity: 2
Sunroof Control Module -J245-
- Removing and Installing. Refer to Sunroof Control Module -J245-, REMOVING AND INSTALLING, A6 .
- Perform the adaptation after installing. Refer to Sunroof Control Module -J245-, PROGRAMMING .
