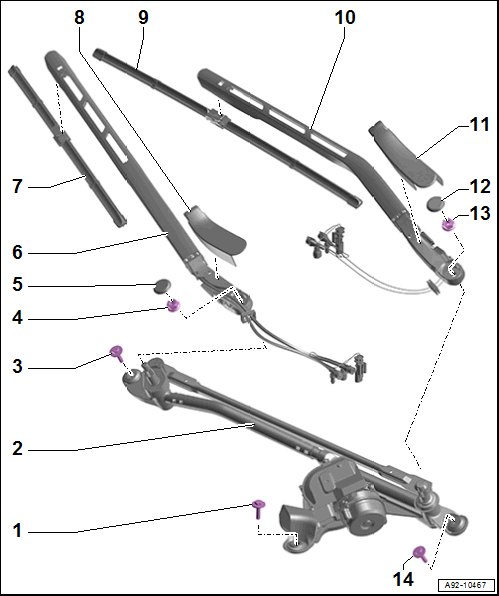

Overview - Windshield Wiper System
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Refer to Fig 2
- Windshield Wiper Motor -V-
- With the Wiper Motor Control Module -J400-
- Refer to Windshield Wiper Motor V, Removing and Installing .
- Bolt
- Refer to Fig 2
- Nut
- 32 Nm
- Cap
- Front Passenger Side Windshield Wiper Arm
- There are different lengths and versions. Refer to the Parts Information.
- Refer to Windshield Wiper Arms, Removing and Installing .
- Refer to Windshield Wiper Arms, Adjusting .
- Front Passenger Side Wiper Blade
- There are different lengths. Refer to the Parts Information.
- Refer to Wiper Blade, Removing and Installing .
- Windshield Wiper Arm Cover
- Windshield wipers with integrated washer nozzles only
- Driver Side Wiper Blade
- There are different lengths. Refer to the Parts Information.
- Refer to Wiper Blade, Removing and Installing .
- Driver Side Windshield Wiper Arm
- There are different lengths and versions. Refer to the Parts Information.
- Refer to Windshield Wiper Arms, Removing and Installing .
- Refer to Windshield Wiper Arms, Adjusting .
- Windshield Wiper Arm Cover
- Windshield wipers with integrated washer nozzles only
- Cap
- Nut
- 32 Nm
- Bolt
- Refer to Fig 2

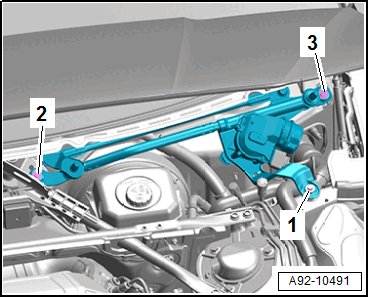

Windshield Wiper Motor - Tightening Specification and Sequence
| Step | Bolts | Tightening Specification |
|---|---|---|
| 1. | -1- | Install all the way by hand |
| 2. | -2-, -3- | 8 Nm |
| 3. | -1- | 8 Nm |
