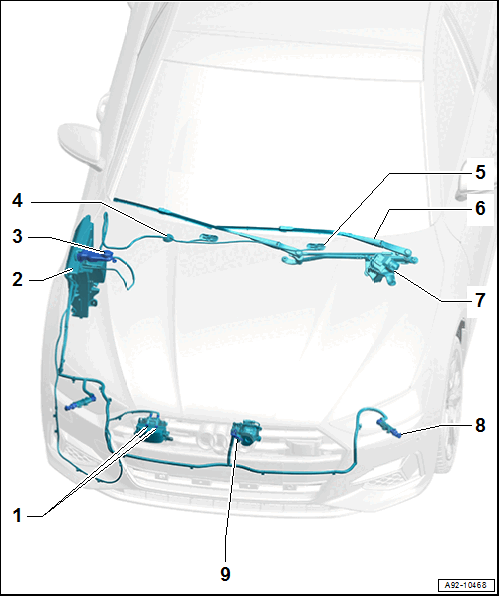

Component Location Overview - Windshield Wiper System
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Spray Nozzles
- For Laser Distance Regulation Control Module -J1122-
- Refer to OVERVIEW - AUXILIARY WASHER SYSTEM
- Washer Fluid Reservoir
- Refer to Overview - Windshield Washer System .
- Filler Neck
- Refer to Overview - Windshield Washer System .
- Grommet
- Versions. Refer to the Parts Information.
- Washer Nozzle
- Refer to Overview - Windshield Washer System .
- Windshield Wiper Arm
- Refer to Overview - Windshield Wiper System .
- Windshield Wiper Motor -V-
- With the Wiper Motor Control Module -J400-
- Refer to Overview - Windshield Wiper System .
- Headlamp Washer System Washer Nozzle
- Refer to Overview - Headlamp Washer System .
- Night Vision System Camera -R212- Washer Nozzle
- Refer to Overview - Headlamp Washer System .
