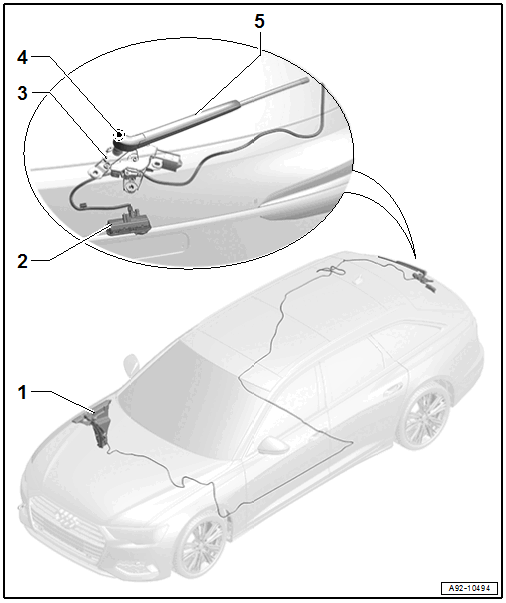

Component Location Overview - Rear Window Wiper System
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Washer Fluid Reservoir
- Refer to Overview - Rear Window Washer System .
- Washer Nozzle
- For the rearview camera/peripheral camera
- Refer to Overview - Headlamp Washer System .
- Rear Window Wiper Motor -V12-
- Refer to Overview - Rear Window Wiper System .
- Washer Nozzle
- For the rear window
- Refer to Overview - Rear Window Washer System .
- Windshield Wiper Arm
- Refer to Overview - Rear Window Wiper System .
