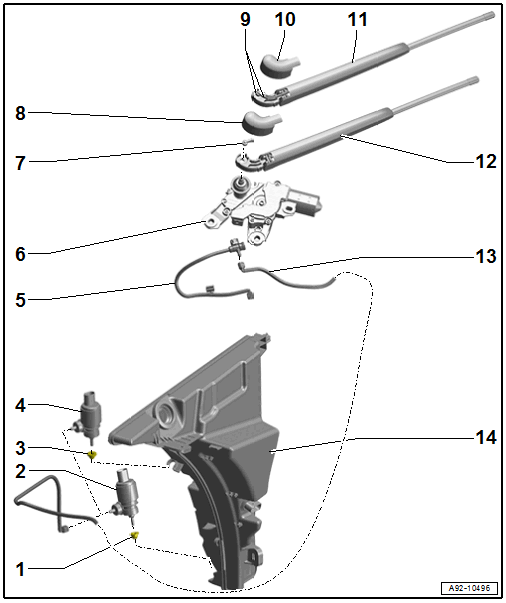

Overview - Rear Window Washer System
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Grommet
- Windshield Washer Pump -V5-
- Grommet
- Rear Window Washer Pump -V13-
- Washer Fluid Hose
- Equipped on some models
- To the rearview camera/peripheral camera washer nozzle
- Rear Window Wiper Motor -V12-
- Washer Nozzle
- Refer to Rear Window Washer System Washer Nozzle, Removing and Installing. .
- Refer to appropriate Service Information .
- Rear Window Wiper Cap
- Spray Nozzle Connection for Windshield Wiper with Integrated Washer Nozzles
- With washer fluid hose and washer nozzle
- Cannot be replaced separately
- Refer to Windshield Wiper Arm, Removing and Installing .
- Rear Window Wiper Cap
- Windshield Wiper Arm with Integrated Washer Nozzles
- Windshield Wiper Arm
- Washer Fluid Hose
- Depending on the equipment version, with a connection to the Rear Window Washer Pump -V13- or to the Windshield Washer Pump -V5-
- Washer Fluid Reservoir
