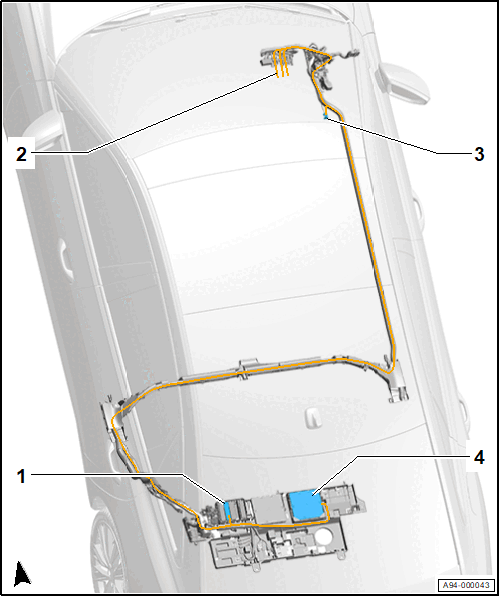

Component Location Overview - Alcohol Interlock System Interface
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Relay and Fuse Panel 3 -SR3-
- In the left front side of the luggage compartment
- Refer to OVERVIEW - RELAY PANELS, FUSE PANELS AND E-BOXES .
- Coupling Point for Alcohol Interlock System
- In the glove compartment
- Refer to ALCOHOL INTERLOCK SYSTEM - INSTALLATION INFORMATION
- Refer to ALCOHOL INTERLOCK SYSTEM, INITIAL OPERATION
- Refer to ALCOHOL INTERLOCK SYSTEM, REMOVAL
- Connecting and securing according to the manufacturer information
- Ground Connection on the Right A-Pillar
- Comfort System Central Control Module -J393-
- With alcohol interlock system interface
- Refer to Comfort System Central Control Module -J393-, REMOVING AND INSTALLING .
Block Connection Diagram
- Coupling Point for Alcohol Interlock System
- Positive cable terminal 30
- Ground wire terminal 31
- LIN bus wire
- Control Module
- With alcohol interlock system interface (LIN bus wire)
- Ground Connection
- Ground wire terminal 31 for alcohol interlock system
- Fuse Panel
- Positive cable terminal 30 for alcohol interlock system
