Overview - Backrest Cover And Cushion, Fixed Backrest

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

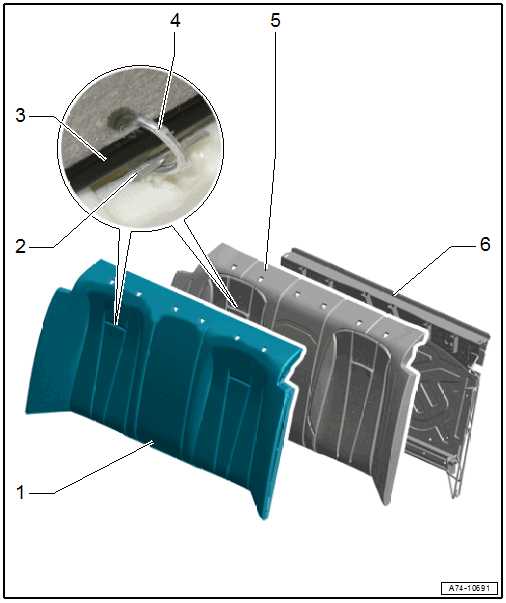

Fig 1: Exploded View Of Cover & Cushion, Fixed Rear Seat Backrest

Courtesy of AUDI OF AMERICA, LLC

Cover
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, FIXED BACKREST .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING .
- Check that there are no folds after installing
Wire
- Encapsulated in cushion
- For securing the cover to the cushion
Contour Wire
- Sewn into cover
- For securing the cover to the cushion
Upholstery Clip
- For securing the cover to the cushion
- Always replace after removing
- Install at the same location with Upholstery Clip Pliers:V.A.G 1634 .
Cushion
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, FIXED BACKREST .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING .
- Versions with seat heating: attach a new heating element when replacing. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING .
Backrest Frame
