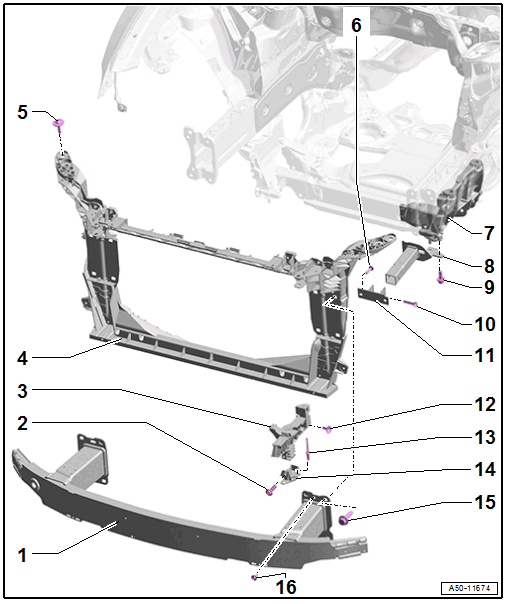

Overview - Lock Carrier, RS6, RS7 SPORTBACK
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bumper Carrier
- Overview. Refer to OVERVIEW - BUMPER CARRIER .
- Bolt
- 8 Nm
- Bracket with Spring Element
- Removing and Installing. Refer to BRACKET WITH SPRING ELEMENT, REMOVING AND INSTALLING .
- Adjusting. Refer to HEIGHT, ADJUSTING USING SPRING ELEMENT .
- Lock Carrier
- Removing and Installing. Refer to LOCK CARRIER, REMOVING AND INSTALLING, RS6, RS7 SPORTBACK .
- Bolt
- 10 Nm
- Quantity: 2
- Bolt
- 14 Nm
- Quantity: 2
- Subframe
- Lower Longitudinal Member
- Removing and Installing. Refer to LOWER LONGITUDINAL MEMBER, REMOVING AND INSTALLING .
- Bolt
- 14 Nm
- Quantity: 2
- Bolt
- 24 Nm
- Bracket
- For the lower longitudinal member
- Removing and Installing. Refer to LOWER LONGITUDINAL MEMBER, REMOVING AND INSTALLING .
- Bolt
- 5 Nm
- Quantity: 2
- Pop Rivet
- Quantity: 3
- Mount
- For bracket with spring element
- Removing and Installing. Refer to BRACKET WITH SPRING ELEMENT MOUNT, REMOVING AND INSTALLING .
- Bolt
- Tightening Specification. Refer to OVERVIEW - BUMPER CARRIER .
- Bolt
- Tightening Specification. Refer to OVERVIEW - BUMPER CARRIER .
