Overview - Windshield

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

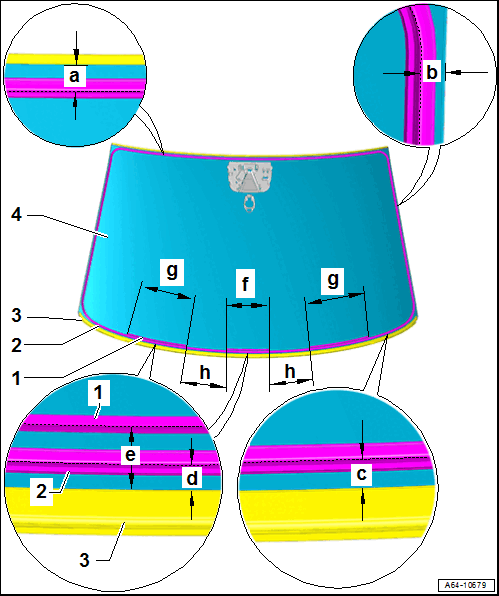

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.

Courtesy of AUDI OF AMERICA, LLC

Adhesive Bead
- Upper
- Market-Specific Version
- Observe minimum curing times. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
  A6:
- Different spaces:
  - Dimension -e- = 17.8 mm
  - Dimension -f- = 187 mm
  - Dimension -g- = 263 mm
  - Dimension -h- = 180 mm
- Adhesive bead thickness. Refer to Adhesive Application: .
  A7 Sportback:
- Different spaces:
  - Dimension -e- = 18.1 mm
  - Dimension -f- = 187 mm
  - Dimension -g- = 263 mm
  - Dimension -h- = 181 mm
- Adhesive bead thickness. Refer to Adhesive Application: .
Adhesive Bead
- Observe minimum curing times. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
  A6:
- Different distances to window edge:
  - Dimension -a- = 7.5 mm
  - Dimension -b- = 7.6 mm
  - Dimension -c- = 7.2 mm
  - Dimension -d- = 7.1 mm
- Adhesive bead thickness. Refer to Adhesive Application: .
- Positioning of the double adhesive bead -item 1- OVERVIEW - WINDSHIELD => List Item:Adhesive Bead
  A7 Sportback:
- Different distances to window edge:
  - Dimension -a- = 7.7 mm
  - Dimension -b- = 7.7 mm
  - Dimension -c- = 8.3 mm
  - Dimension -d- = 8.4 mm
- Adhesive bead thickness. Refer to Adhesive Application: .
- Positioning of the double adhesive bead -item 1- OVERVIEW - WINDSHIELD => List Item:Adhesive Bead
Plenum Chamber Cover Frame
- Windshield component -item 4- OVERVIEW - WINDSHIELD => List Item:Windshield
- With a new windshield -item 4- OVERVIEW - WINDSHIELD => List Item:Windshield, remove the protective molding before installing the cowl panel trim. Refer toFig 1.
Windshield
- Removing and Installing. Refer to WINDSHIELD, REMOVING AND INSTALLING .
- Center the side distance to the A-pillars
- Distance from the windshield to the upper window frame. Refer to Cover Profile, Mounting on Undamaged Windshield: => Adjust the distance from the windshield -1- to the upper window frame. .

Protective Molding, Removing

Fig 1: Protective Molding, Removing

Courtesy of AUDI OF AMERICA, LLC

-- For a new windshield -3-, the protective molding -1- must first be removed from the frame -2- before assembling the plenum chamber cover.
